1N4148WX-TP

MCC R
  omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# Micro Commercial Components 1N4148WX Features
Halogen free available upon request by adding suffix "-HF"
Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information)
Surface Mount Package Ideally Suited for Automatic Insertion
High Speed Switching Diode 200mW For General Purpose Switching Applications
Fast Switching Speed Mechanical Data SOD323

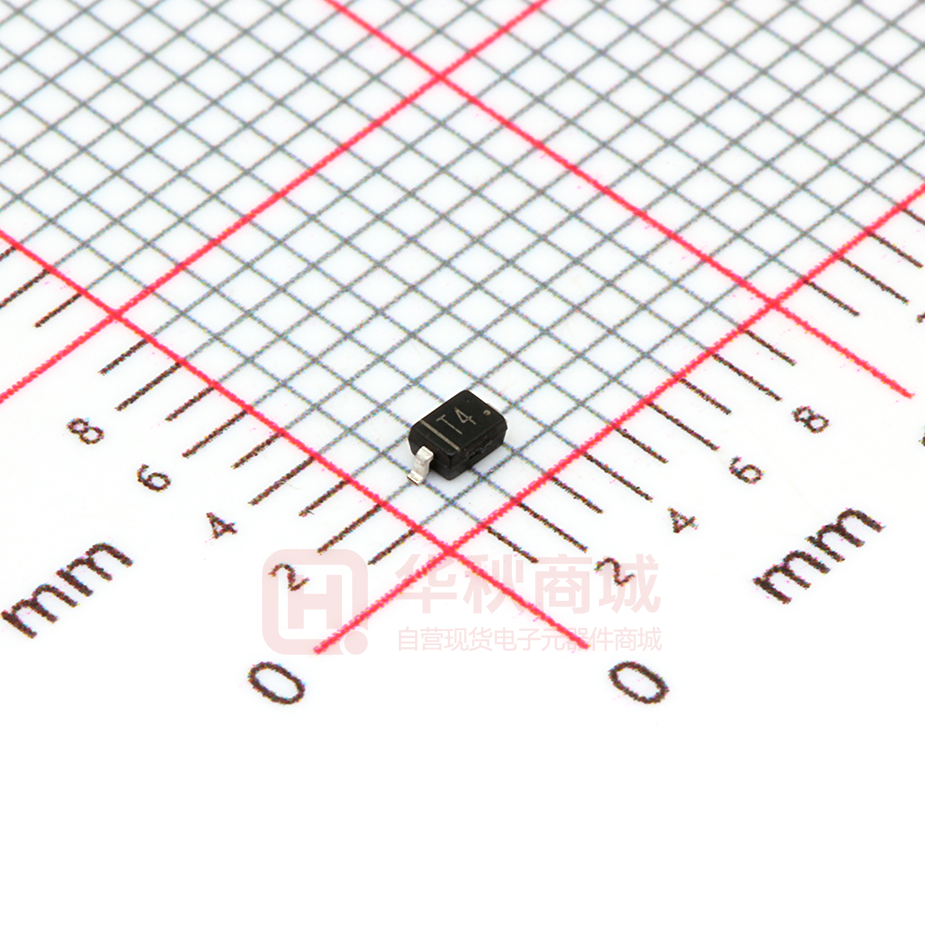

Marking : T4
Terminals: Solderable per MIL-STD-202, Method 208 A
Polarity: Indicated by Cathode Band B
Weight: 0.008 grams ( approx.)
Moisture Sensitivity: Level 1 per J-STD-020C
C E Epoxy meets UL 94 V-0 flammability rating Moisture Sensitivity Level 1 Maximum Ratings @ 25°C Unless Otherwise Specified Peak Repetitive Reverse Voltage RMS Reverse Voltage Average Rectified Output Current Peak Forward Surge Current t=1us Power Dissipation Thermal Resistance Operation/Storage Temp. Range VRM VR(RMS) Io IFSM PD RJA Tj, TSTG 100 71 150 2.0 200 625 -55 to +150 V V mA A mW K/W °C Electrical Characteristics @ 25°C Unless Otherwise Specified Maximum Instantaneous Forward Voltage VF 1.0V Maximum DC Reverse Current At Rated DC Blocking Voltage IR 25nA 50µA 1.0µA Typical Junction Capacitance CJ 4pF VF=VR=0V Maximum Reverse Recovery Time Trr 4nS IF=50mA I rr = 0.1IR RL=100Ω IF = 50mA; TJ = 25°C (Note 1) VR=20Volts TJ = 25°C TJ = 150°C VR=75V, TJ=25OC H D J G DIM A B C D E G H J DIMENSIONS INCHES MM MIN MAX MIN MAX .090 .107 2.30 2.70 .063 .071 1.60 1.80 .045 .053 1.15 1.35 .031 .045 0.80 1.15 .010 .016 0.25 0.40 .004 .018 0.10 0.45 .003 .010 0.08 0.25 ----.006 ----0.15 NOTE SUGGESTED SOLDER PAD LAYOUT 0.074" 0.027” 0.022” www.mccsemi.com Revision: F 1 of 3 2016/10/28 MCC Micro Commercial Components 1N4148WX Forward R Characteristics Reverse 1000 200 Characteristics 100 (nA) (mA) Ta=100℃ REVERSE CURRENT IR T= a 2 5℃ FORWARD CURRENT IF T= a 1 00 ℃ 10 1 0.1 0.01 0.0 100 Ta=25℃ 10 1 0.2 0.4 0.6 FORWARD VOLTAGE 0.8 VF 1.0 1.2 0 REVERSE VOLTAGE Capacitance Characteristics 1.2 40 20 (V) 60 VR 80 (V) Power Derating Curve 300 Ta=25℃ f=1MHz (mW) PD POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) 250 1.0 200 150 100 50 0.8 0 0 5 10 REVERSE VOLTAGE 15 VR 20 0 (V) 25 50 75 AMBIENT TEMPERATURE 100 Ta 125 150 (℃ ) www.mccsemi.com Revision: F 2 of 3 2016/10/28 MCC R Micro Commercial Components Ordering Information : Device Packing Part Number-TP Tape&Reel: 3Kpcs/Reel Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. www.mccsemi.com Revision: F 3 of 3 2016/10/28 3
