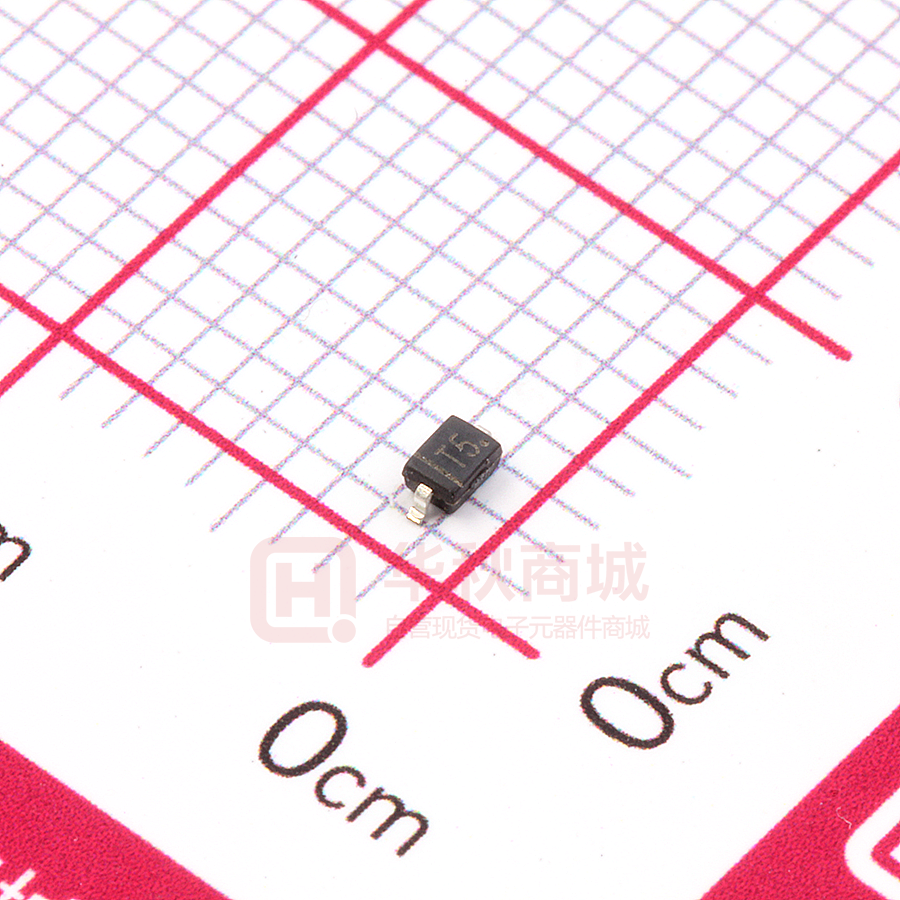

1N4448WX-TP

1N4448WX-TP

  • 厂商:

    MCC(美微科)

  • 封装:

    SOD323

  • 描述:

    200mW高速开关二极管SOD323-2

  • 数据手册
  • 价格&库存
1N4448WX-TP 数据手册
1N4448WX Features • Fast Switching Speed • High Conductance • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Halogen Free Available Upon Request By Adding Suffix "-HF" • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) 200mW High Speed Switching Diode Maximum Ratings • • • Operating Junction Temperature Range: -65°C to +150°C Storage Temperature Range: -65°C to +150°C Thermal Resistance: 625°C/W Junction to Ambient SOD-323 MCC Part Number Device Marking 1N4448WX T5 A B Parameter Symbol Value Non-Repetitive Peak Reverse Voltage VRM 100V DC Reverse Voltage VR 75V Peak Repetitive Reverse Voltage VRRM 75V Working Inverse Voltage VRWM 75V VR(RMS) 53V IFM 500mA IF(AV) 250mA RMS Reverse Voltage Forward Continuous Current (Note 1) Average Forward Current Peak Forward Surge Current (t=1s) (t=1μs) Power Dissipation 2A IFSM PD 4A 200mW Notes: 1. Valid Provided that Terminals are Kept at Ambient Temperature C E Cathode Mark H D J G DIM A B C D E G H J DIMENSIONS INCHES MM MIN MAX MIN MAX 0.090 0.107 2.30 2.70 0.063 0.071 1.60 1.80 0.045 0.053 1.15 1.35 0.031 0.045 0.80 1.15 0.010 0.016 0.25 0.40 0.004 0.018 0.10 0.45 0.004 0.010 0.10 0.25 ----- 0.006 ----- 0.15 NOTE Suggested Solder Pad Layout 1.88mm 0.69mm 0.56mm Rev.3-1-01012019 1/4 MCCSEMI.COM 1N4448WX Electrical Characteristics @ 25°C (Unless Otherwise Specified) Parameter Forward Voltage Reverse Current Symbol VF IR Conditions Min. Typ. Max. Units IF=5mA 0.72 V IF=10mA 0.855 V IF=100mA 1 V IF=150mA 1.25 V VR=20V 25 nA VR=75V 2.5 μA VR=25V, TJ=150°C 30 μA VR=75V, TJ=150°C 50 μA Junction Capacitance CJ VR = 0V, f = 1MHz 4 pF Reverse Recovery Time trr IF=IR=10mA, Irr=0.1×IR,RL=100Ω 4 ns * Pulse Test: Pulse Width 300 μsec, Duty Cycle 2% Rev.3-1-01012019 2/4 MCCSEMI.COM 1N4448WX Curve Characteristics Fig. 2 - Typical Reverse Leakage Characteristics Fig. 1 - Typical Instantaneous Forward Characteristics 10000 Instantaneous Reverse Leakage Current (nA) 1000 Forward Current (mA) 100 10 TA=100°C 1 TA=25°C 0.1 0.0 0.4 0.8 TA=100°C 1000 100 10 TA=25°C 1 20 1.2 40 60 80 100 Reverse Voltage (V) Instantaneous Forward Voltage (V) Fig. 3 - Power Derating Curve Power Dissipation (mW) 250 200 150 100 50 0 0 25 50 75 100 125 150 Ambient Temperature (°C) Rev.3-1-01012019 3/4 MCCSEMI.COM 1N4448WX Ordering Information Device Packing Part Number-TP Tape&Reel: 3Kpcs/Reel Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-1-01012019 4/4 MCCSEMI.COM
