MCC
TM
Micro Commercial Components
Features
•
•
•
•
•
•
•
•
omponents
20736 Marilla Street Chatsworth
!"#
$
% !"#
Halogen free available upon request by adding suffix "-HF"
Epoxy meets UL 94 V-0 flammability rating
Moisture Sensitivity Level 1
High density cell design for low RDS(ON)
Rugged and reliable
Voltage controlled small signal switch
Operating Junction Temperature: -55 to +150к
Storage Temperature: -55 to +150к

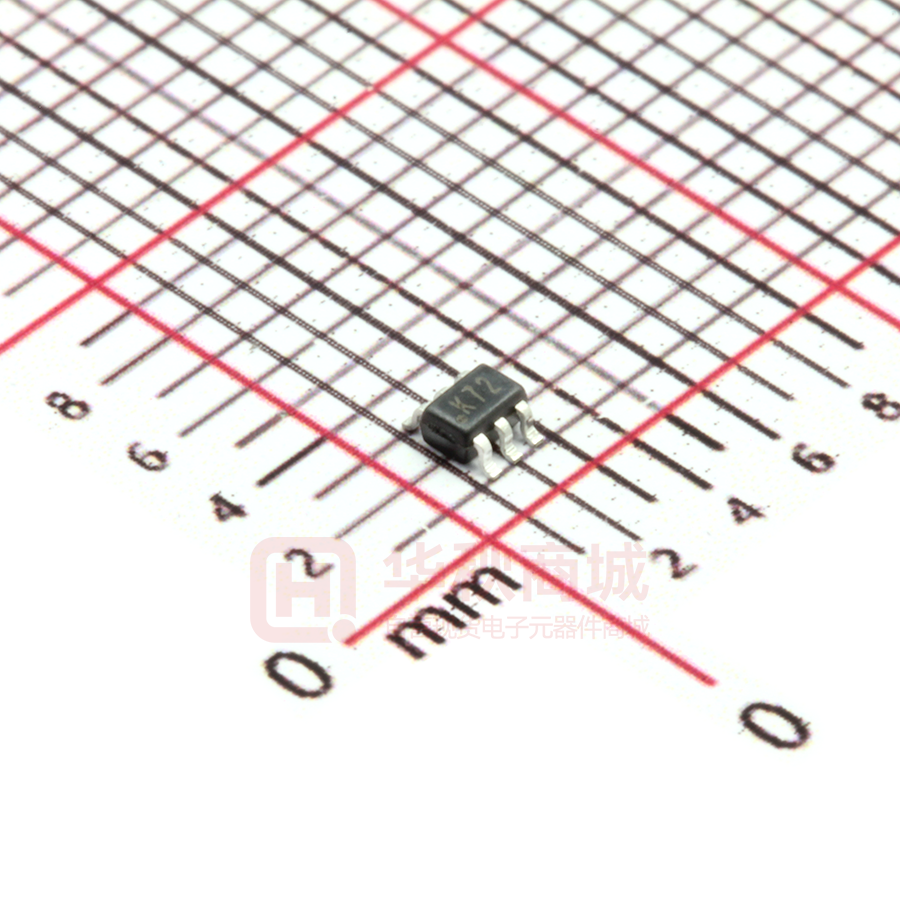

Marking: K72
2N7002DW
N-Channel MOSFET
SOT-363
Electrical Characteristics @ 25OC Unless Otherwise Specified
Symbol
Parameter
Value
Units
VDS
Drain-Source Voltage
60
V
VGS
Gate-Source Voltage
20
V
ID
Drain Current
115
mA
PD
Power Dissipation
150
mW
G
C
B
A
RthJA Thermal Resistance from Junction to Ambient
o
833
C/W
H
M
K
J
D
L
DIMENSIONS
INCHES
DIM
A
B
C
D
G
H
J
K
L
M
Revision: D
MIN
.006
.045
.085
MAX
.014
.053
.096
.026
.047
.071
--.035
.010
.003
.055
.087
.004
.043
.018
.006
MM
MIN
MAX
0.15
0.35
1.15
1.35
2.15
2.45
0.65Nominal
1.20
1.40
1.80
2.20
--0.10
0.90
1.10
0.26
0.46
0.08
0.15
NOTE
www.mccsemi.com
1 of 4
2014/09/28
MCC
2N7002DW
TM
Micro Commercial Components
Electrical Characteristics@ Ta=25 ℃ unless otherwise specified
Parameter
Symbol
Drain-source breakdown voltage
Test
conditions
Min
Max
Typ
V(BR)DSS
VGS=0 V, ID=250 µA
60
Gate-threshold voltage *
Vth(GS)
VDS=VGS, ID=250 µA
1
Gate-body leakage
lGSS
VDS=0 V, VGS=±20 V
±80
Zero gate voltage drain current
IDSS
VDS=60 V, VGS=0 V
80
Drain-source on-resistance *
RDS(on)
Forward transconductance *
gfs
Drain-source on-voltage *
VDS(on)
Diode forward voltage
VSD
Input capacitance **
Ciss
Output capacitance **
Coss
Reverse transfer capacitance **
Crss
V
2.5
VGS=10 V, ID=500mA
7
VGS=5 V, ID=50mA
7
VDS=10 V, ID=200mA
Unit
nA
nA
Ω
80
500
ms
VGS=10V, ID=500mA
0.5
3.75
V
VGS=5V, ID=50mA
0.05
0.375
V
IS=115mA, VGS=0 V
0.55
1.2
V
50
VDS=25V, VGS=0V, f=1MHz
pF
25
5
SWITCHING TIME
Turn-on time **
td(on)
VDD=25 V, RL=50Ω
Turn-off time **
td(off)
ID=500mA,VGEN=10V,G=25 Ω
20
ns
40
* Pulse Test: Pulse width ≤300µs,duty cycle≤2%.
** These parameters have no way to verify.
Typical Characteristics
Output Characteristics
Transfer Characteristics
1.0
0.9
1.0
Ta=25
VGS=4V,5V,6V
Pulsed
(A)
0.8
0.7
0.6
)DRAIN CURRENTD I
DRAIN CURRENT
ID
(A)
0.8
VGS=3V
0.5
0.4
VGS=2.5V
0.3
0.2
0.7
Ta=100
T a=25
0.6
0.5
0.4
0.3
0.2
VGS=2V
0.1
0.0
0.0
VDS=3V
0.9
Pulsed
0.5
1.0
1.5
2.0
2.5
3.0
DRAIN TO SOURCE VOLTAGE
3.5
VDS
4.0
4.5
0.1
0.0
5.0
0
1
2
3
4
5
GATE TO SOURCE VOLTAGE
(V)
6
VGS
7
8
(V)
www.mccsemi.com
Revision: D
2 of 4
2014/09/28
MCC
2N7002DW
TM
Micro Commercial Components
Typical Characteristics
RDS(ON) —— VGS
RDS(ON) —— ID
2.0
7
Ta=25
Pulsed
Pulsed
6
1.8
( )
1.4
4
ON-RESISTANCE
ON-RESISTANCE
5
RDS(ON)
1.6
RDS(ON)
( )
ID=500mA
VGS=5V
1.2
VGS=10V
3
Ta=100
2
1.0
1
Ta=25
0.8
0.1
0.2
0.3
0.4
0.5
0.6
DRAIN CURRENT
0.7
ID
0.8
0.9
0
1.0
0
1
2
3
4
5
6
GATE TO SOURCE VOLTAGE
(A)
7
VGS
8
9
10
(V)
Threshold Voltage
IS —— VSD
1
2.0
1.8
VTH
THRESHOLD VOLTAGE
SOURCE CURRENT
IS (A)
(V)
Pulsed
0.1
Ta=100
0.01
0.0
0.2
0.4
Ta=25
0.6
0.8
1.0
SOURCE TO DRAIN VOLTAGE
1.2
1.4
1.6
ID=250uA
1.6
1.4
1.2
1.0
25
50
75
JUNCTION TEMPERATURE
VSD (V)
100
Tj
125
()
www.mccsemi.com
Revision: D
3 of 4
2014/09/28
MCC
TM
Micro Commercial Components
Ordering Information :
Device
Packing
Part Number-TP
Tape&Reel: 3Kpcs/Reel
Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF
***IMPORTANT NOTICE***
Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to
make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components
Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it
convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all
risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are
represented on our website, harmless against all damages.
***LIFE SUPPORT***
MCC's products are not authorized for use as critical components in life support devices or systems without the express written
approval of Micro Commercial Components Corporation.
***CUSTOMER AWARENESS***
Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking
strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages
customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on
our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine
parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty
coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global
problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized
distributors.
www.mccsemi.com
Revision: D
4 of 4
2014/09/28
