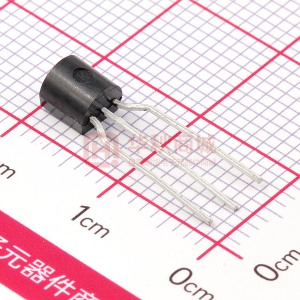

2SC1815-BL

MCC Micro Commercial Components TM
  omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# 2SC1815-O 2SC1815-Y 2SC1815-GR 2SC1815-BL NPN Silicon Epitaxial Transistor TO-92 A E Features • • • • • 2SC1815 is NPN Silicon Epitaxial Transistor Designed for RF, AF Amplifier and General Purpose Applications. Capable of 0.4Watts of Power Dissipation. Collector-current 0.15A Collector-base Voltage 60V Marking : C1815 • • • Epoxy meets UL 94 V-0 flammability rating Moisure Sensitivity Level 1 Lead Free Finish/Rohs Compliant ("P"Suffix designates RoHS Compliant. See ordering information) Operating and storage junction temperature range:-55oC to +125oC Electrical Characteristics @ 25OC Unless Otherwise Specified Symbol Parameter Collector-Emitter Breakdown Voltage* (IC=0.1mAdc, IB =0) Collector-Base Breakdown Voltage (IC=100uAdc, IE =0) Emitter-Base Breakdown Voltage (I E =100uAdc,IC=0) Collector Cutoff Current (VCB=60Vdc, IE =0Adc) Collector Cutoff Current (VCB=50Vdc, IE =0Adc) Emitter Cutoff Current (VEB =5.0Vdc, IC=0Adc) DC Current Gain* (IC=2.0mAdc, V CE=6.0Vdc) Collector-Emitter Saturation Voltage (IC=100mAdc, IB =10mAdc) Base-Emitter Saturation Voltage (IC=100mAdc, IB =10mAdc) Base-Emitter Voltage (IE=310mAdc) Transistor Frequency (IC=1.0mAdc, V CE=10Vdc, f=30MHz) O 70-140 Y 120-240 Min 50 60 5 0.1 0.1 0.1 Max Units Vdc Vdc B OFF CHARACTERISTICS V(BR)CEO V(BR)CBO V(BR)EBO ICBO ICEO IEBO C Vdc uAdc uAdc uAdc D ON CHARACTERISTICS hFE(1) VCE(sat) VBE(sat) VBE 70 700 0.25 1.0 1.45 Vdc Vdc Vdc DIM A B C D E G E G DIMENSIONS INCHES MIN .170 .170 .550 .010 .130 .010 C B --- MM MAX .190 .190 .590 .020 .160 .104 MIN 4.33 4.30 13.97 0.36 3.30 2.44 MAX 4.83 4.83 14.97 0.56 3.96 2.64 NOTE SMALL-SIGNAL CHARACTERISTICS fT 80 GR 200-400 MHz BL 350-700 CLASSIFICATION OF HFE (1) Rank Range www.mccsemi.com Revision: C 1 of 3 2011/08/22 2SC1815 Typical Characteristics MCC Micro Commercial Components TM www.mccsemi.com Revision: C 2 of 3 2011/08/22 MCC Micro Commercial Components TM Ordering Information : Device Part Number-AP Part Number-BP Packing Ammo Packing: 2Kpcs/Ammo Box Bulk: 100Kpcs/Carton ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. www.mccsemi.com Revision: C 3 of 3 2011/08/22 3
