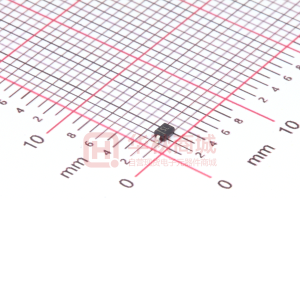

B5819WS

MCC Micro Commercial Components TM
  omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# B5817WS Thru B5819WS 1 Amp Schottky Barrier Rectifier 20 - 40 Volts SOD-323 A B Features • • • • • • • Guard Ring Protection Low Forward Voltage Drop For Use in Low Voltage, High Frequency Inverters High Surge Current Capability Epoxy meets UL 94 V-0 flammability rating Moisture Sensitivity Level 1 Lead Free Finish/RoHS Compliant("P" Suffix designates RoHS Compliant. See ordering information) Maximum Ratings • • • Operating Temperature: -65 to +125 Storage Temperature: -65 to +150 Maximum Thermal Resistance; 500 /W Junction To Ambient Maximum Recurrent Peak Reverse Voltage 20V 30V 40V Maximum DC Blocking Voltage 20V 30V 40V C E MCC Part Number B5817WS B5818WS B5819WS Device Marking SJ SK SL Maximum RMS Voltage 14V 21V 28V H D G J Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current Peak Forward Surge Current Maximum Instantaneous Forward Voltage B5817WS B5818WS B5819WS Maximum DC Reverse Current At Rated DC Blocking Voltage Typical junction capacitance Notes: DIM A B C D E G H J IF(AV) IFSM 1.0A 10A 0.45V 0.55V 0.60V 0.75V 0.875V 0.90V 1mA Tc = 90 8.3ms, half sine IFM = 1.0A; TJ = 25 (Note 1) IFM = 3A; TJ = 25 (Note 1) TA = 25 VF INCHES MIN MAX .090 .107 .063 .071 .045 .053 .031 .045 .010 .016 .004 .018 .004 .010 ----.006 MM MIN 2.30 1.60 1.15 0.80 0.25 0.10 0.10 ----MAX 2.70 1.80 1.35 1.15 0.40 0.45 0.25 0.15 NOTE SUGGESTED SOLDER PAD LAYOUT 0.074" IR CJ 120pF Measured at 1.0MHz , VR=4.0V 0.027” 1. Pulse Test: Pulse Width 300usec, Duty Cycle 2% 0.022” Revision: A www.mccsemi.com 1 of 3 2011/01/01 B5817WS-B5819WS Typical Characteristics MCC Micro Commercial Components TM 12 10 8 6 4 2 Revision: A www.mccsemi.com 2 of 3 2011/01/01 MCC Micro Commercial Components TM Ordering Information : Device Part Number-TP Packing Tape&Reel: 3Kpcs/Reel ***IMPORTANT NOTICE* ** Micro Comme rcial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Comme rcial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Co mponents Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from A uthorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC' s quality standards for handling and storage. MCC will not pro vide any warranty coverage or o ther assistance for parts bought from Unau thorized Source s. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. www.mccsemi.com Revision: A 3 of 3 2011/01/01 3
