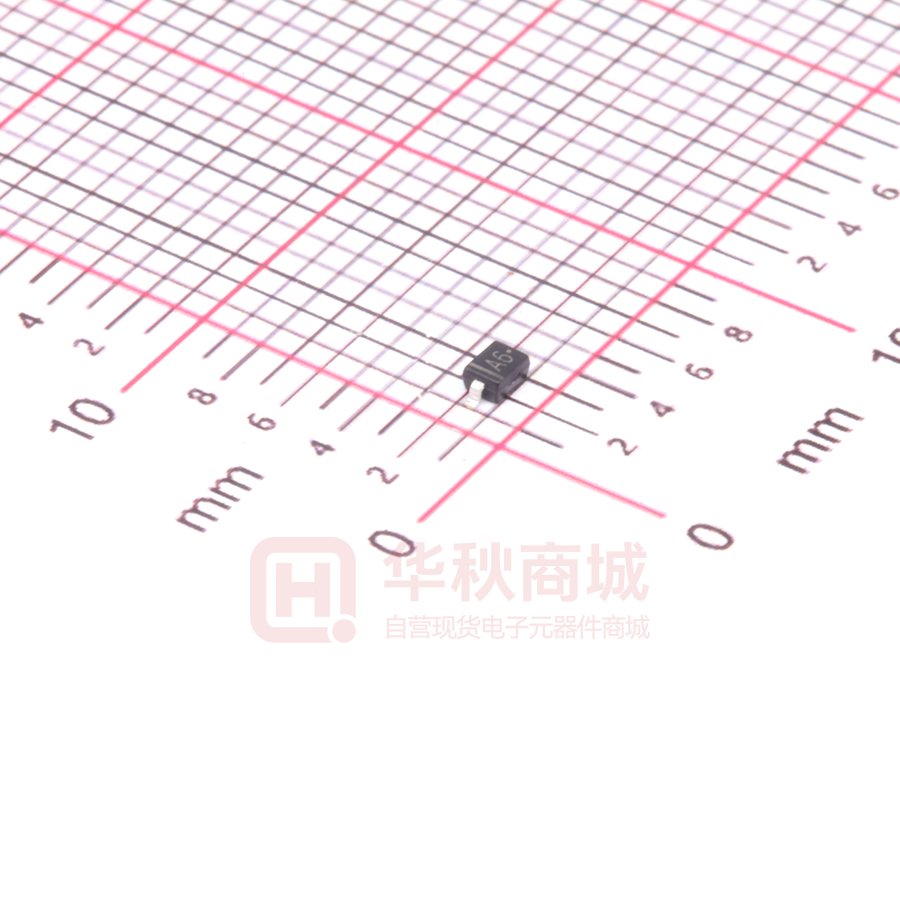

BAS316
Features
•
Surface Mount Package Ideally Suited for Automatic Insertion
•
Moisture Sensitivity Level 1
•
Epoxy Meets UL 94 V-0 Flammability Rating
•
Halogen Free Available Upon Request By Adding Suffix "-HF"
•
Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS
Compliant. See Ordering Information)
400mW
High Speed
Switching Diode
Maximum Ratings
•
•
•
Operating Junction Temperature Range: -65°C to +150°C
Storage Temperature Range: -65°C to +150°C
Thermal Resistance: 312.5°C/W Junction to Ambient
MCC
Part Number
Device Marking
BAS316
A6
·
Symbol
Value
Maximum Peak Reverse Voltage
VRM
100V
Maximum DC Blocking Voltage
VR
100V
Peak Forward Current
IF
250mA
Parameter
Peak Forward Surge Current (t=1μs)
(t=1ms)
A
B
C
E
Cathode Mark
H
D
4A
IFSM
1A
PD
J
G
0.5A
(t=1s)
Power Dissipation
SOD-323
400mW
DIM
A
B
C
D
E
G
H
J
DIMENSIONS
INCHES
MM
MIN MAX MIN MAX
0.090 0.107 2.30 2.70
0.063 0.071 1.60 1.80
0.045 0.053 1.15 1.35
0.031 0.045 0.80 1.15
0.010 0.016 0.25 0.40
0.004 0.018 0.10 0.45
0.004 0.010 0.10 0.25
----- 0.006 ----- 0.15
NOTE
Suggested Solder Pad Layout
1.88mm
0.69mm
0.56mm
Rev.3-1-01012019
1/4
MCCSEMI.COM
BAS316
Electrical Characteristics @ 25°C (Unless Otherwise Specified)
Parameter
Symbol
Conditions
Min.
Reverse Breakdown Voltage
VBR
IR=100μA
100
Forward Voltage
Reverse Current
VF
Typ.
Max.
Units
V
IF=1mA
0.715
V
IF=10mA
0.855
V
IF=50mA
1
V
IF=150mA
1.25
V
VR=20V
0.03
μA
VR=75V
1
μA
IR
Junction Capacitance
CJ
VR = 0V, f = 1MHz
1.5
pF
Reverse Recovery Time
trr
IF=IR=10mA,
Irr=0.1×IR,RL=100Ω
4
ns
Rev.3-1-01012019
2/4
MCCSEMI.COM
BAS316
Curve Characteristics
Fig. 2 - Typical Reverse Leakage Characteristics
Fig. 1 - Typical Instantaneous Forward Characteristics
250
10000
Instantaneous Reverse Leakage
Current (nA)
Instantaneous Forward Current (mA)
100
TA=100°C
10
1
TA=25°C
0.1
0.01
0.0
TA=100°C
1000
100
10
TA=25°C
1
0.2
0.4
0.6
0.8
1.0
1.2
Instantaneous Forward Voltage (V)
20
40
60
80
Reverse Voltage (V)
Fig. 3 - Power Derating Curve
Power Dissipation (mW)
500
400
300
200
100
0
0
25
50
75
100
125
150
Ambient Temperature (°C)
Rev.3-1-01012019
3/4
MCCSEMI.COM
BAS316
Ordering Information
Device
Packing
Part Number-TP
Tape&Reel: 3Kpcs/Reel
Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-TP-HF
