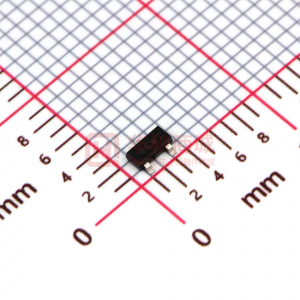

BAS40-06

MCC Micro Commercial Components TM
  omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# BAS40 THRU BAS70 Surface Mount Schottky Barrier Diode 200 mWatt SOT-23 A D Features SOT-23 Package For surface mount application Protects from line to VCC and line to ground Low forward voltage and reverse recovery characteristics Bidirectional-low-forward available with “ -04” suffix (Figure 2) Tape & Reel EIA Standard 481. Mechanical Data Epoxy meets UL 94 V-0 flammability rating Moisture Sensitivity Level 1 Mounting Position: Any Weight: .008 grams (approx.) C B MAXIMUM RATINGS Operating Temperature: -55 C to +125 C Storage Temperature: -55 C to +150 C Power Dissipation: 200 mWatts @ Tamb=25 C o o o o o o F E BAS40 IFM =200mA @ Ta =25 C Forward Continuous Current: BAS70 I =70mA @ Ta =25oC FM o G H J K DIMENSIONS INCHES MIN .110 .083 .047 .035 .070 .018 .0005 .035 .003 .015 MM MIN 2.80 2.10 1.20 .89 1.78 .45 .013 .89 .085 .37 Surge Forward Current: 600mA @ tp
