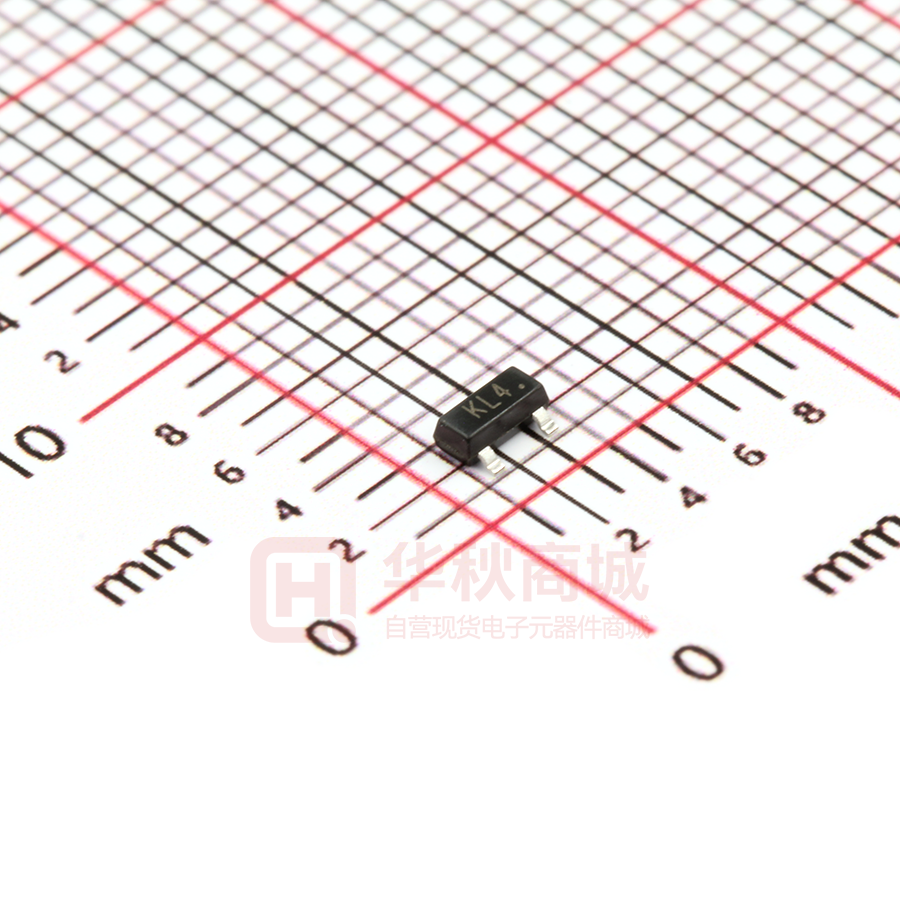

BAT54S-TP

MCC R Micro Commercial Components BAT54 THRU BAT54S Micro Commercial Components 130 W Cochran St, Unit B Simi Valley, CA 93065 Tel:818-701-4933 Features • • • • • • Lead Free Finish/Rohs Compliant ("P"Suffix designates RoHS Compliant. See ordering information) Low Forward Voltage Surface Mount device Epoxy meets UL 94 V-0 flammability rating Moisture Sensitivity Level 1 Halogen free available upon request by adding suffix "-HF" MCC Catalog Number BAT54 BAT54A BAT54C BAT54S Device Marking 1 KL1 KL2 KL3 KL4 Schottky Barrier Diode Pin Configuration See page 3 Figure 1 Figure 2 Figure 3 Figure 4 Type 2 L4/L4P L42 L43 L44 250mWatt, 30Volt Single Dual Dual Dual D C Maximum Ratings F Continuos Reverse Voltage Forward ContinuousCurrent Non-Repetitive Peak Forward Current t
