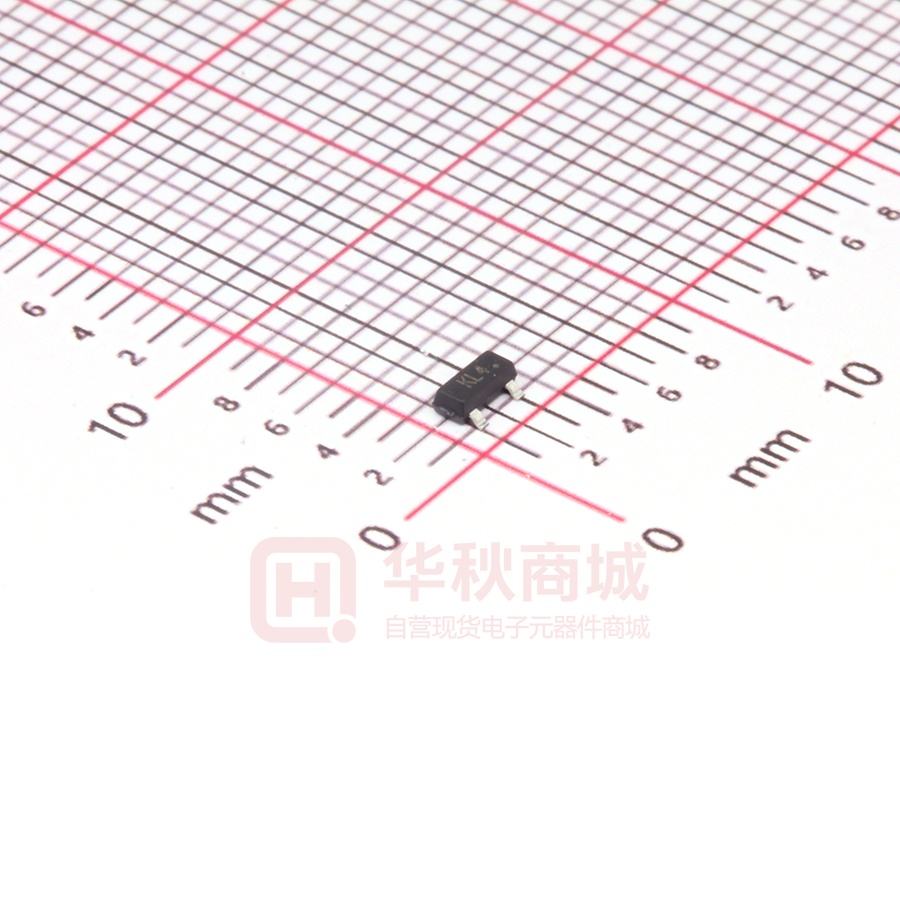

BAT54SHE3-TP

BAT54HE3 THRU BAT54SHE3 Features • Halogen Free. "Green" Device (Note 1) • AEC-Q101 Qualified • Low Forward Voltage • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • Lead Free Finish/Rohs Compliant ("P"Suffix Designates RoHS Compliant. See Ordering Information) 250mW 30V Schottky Barrier Diode Maximum Ratings • Operating Junction Temperature Range: -55°C to +125°C • Storage Temperature Range: -55°C to +150°C • Thermal Resistance:500°C/W Junction to Ambient MCC Part Number Device Marking BAT54HE3 BAT54AHE3 BAT54CHE3 BAT54SHE3 KL1 KL2 KL3 KL4 Maximum Maximum Maximum DC Recurrent Working Blocking Peak Reverse Peak Reverse Voltage Voltage Voltage 30V 30V 30V 30V SOT-23 30V 30V 30V 30V 30V 30V 30V 30V A D C B Electrical Characteristics @ 25°C Unless Otherwise Specified F Average Forward Current IF(AV) 200mA Peak Forward Surge Current IFSM 600mA Power Dissipation Pd 250mW TA= 25 °C Maximum Instantaneous Forward Voltage VF 240mV 320mV 400mV 500mV 800mV IF=0.1mA IF=1.0mA IF=10mA IF=30mA IF=100mA Maximum DC Reverse Current At Rated DC Blocking Voltage IR 2μA VR = 25V Maximum Junction Capacitance CJ 10.0pF Measured at 1.0MHz, VR=1.0V Reverse Recovery Time Trr 5.0ns IF=IR=10mA; I(REC) = 1mA E H G t
