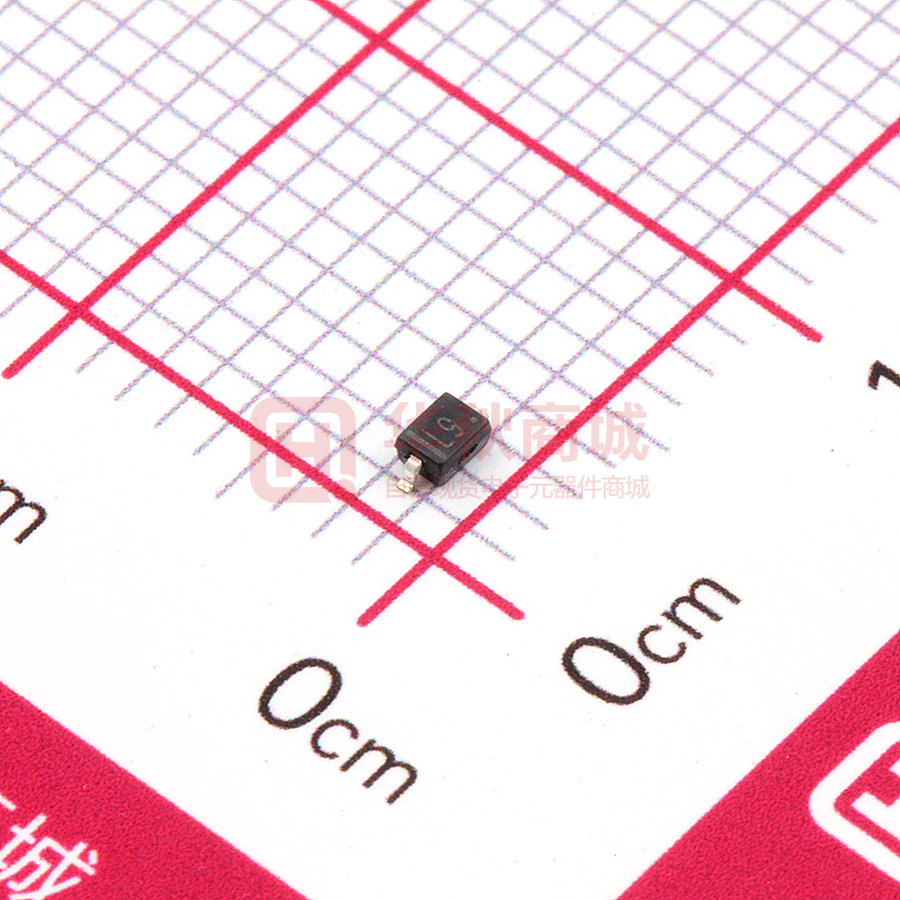

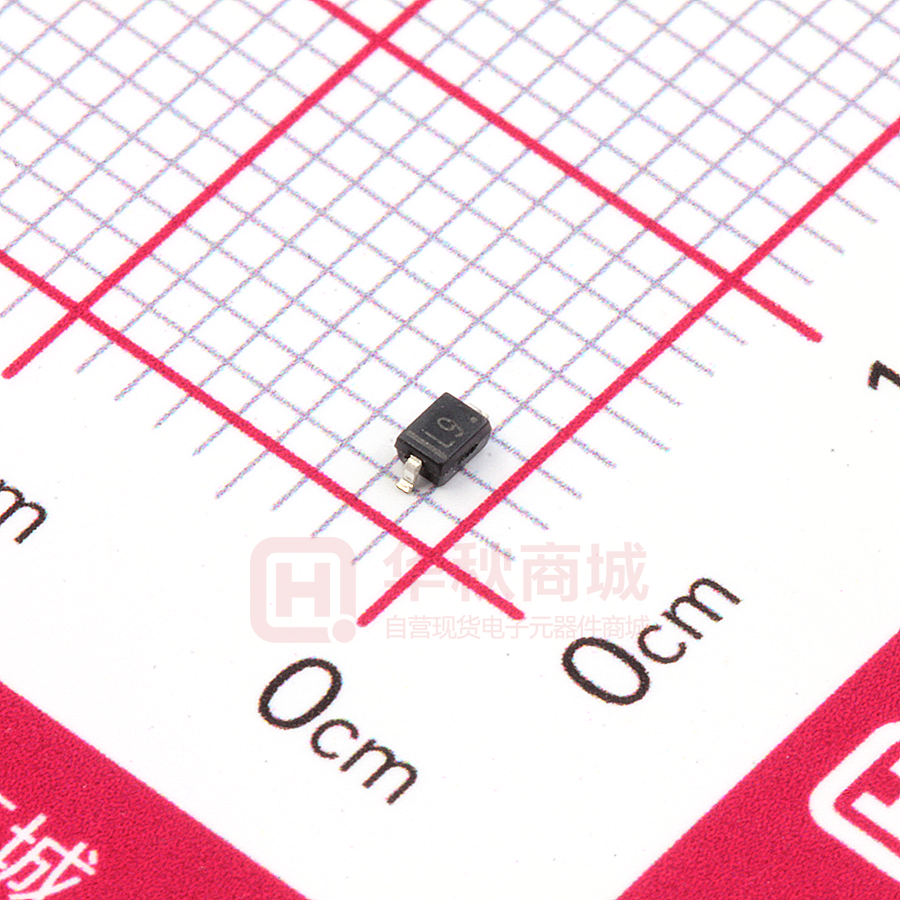

BAT54WS-TP

BAT54WS Features • High Reliability • Low Forward Voltage and Low Reverse Current • Epoxy Meets UL 94 V-0 Flammability Rating • Halogen Free Available Upon Request By Adding Suffix "-HF" • Moisture Sensitivity Level 1 • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) 200mW, 30 Volt Schottky Barrier Diode Maximum Ratings • Operating Junction Temperature Range: -55°C to +125°C • Storage Temperature Range: -55°C to +150°C • Thermal Resistance: 500°C/W Junction to Ambient MCC Part Number Device Marking BAT54WS L9 SOD-323 Maximum Maximum DC Recurrent Maximum Blocking Peak Reverse RMS Voltage Voltage Voltage 30V A B 30V 21V C E Electrical Characteristics @ 25°C Unless Otherwise Specified Cathode Mark Continuous Forward Current IF(AV) 200mA Repetitive Peak Forward Current Non-Repetitive Peak Forward Current IFRM 300mA tp ≤ 1s; Duty Cycle ≤ 50% IFSM 600mA t=8.3ms Power Dissipation Derate above 25°C Pd 200mW 1.8mW/°C TA=25°C DIM Maximum Forward Voltage at VF 240mV 320mV 400mV 500mV 1000mV IF=0.1mA IF=1mA IF=10mA IF=30mA IF100mA Maximum DC Reverse Current At Rated DC Blocking Voltage A B C D E G H J IR 2.0μA VR=25V Maximum Reverse Breakdown Voltage VBR D J G DIMENSIONS INCHES MM MIN MAX MIN MAX 0.090 0.107 2.30 2.70 0.063 0.071 1.60 1.80 0.045 0.053 1.15 1.35 0.031 0.045 0.80 1.15 0.010 0.016 0.25 0.40 0.004 0.018 0.10 0.45 0.004 0.010 0.10 0.25 ----- 0.006 ----- 0.15 NOTE Suggested Solder Pad Layout Reverse Recovery Time trr Maximum Junction Capacitance CJ Rev.3-3-10262019 H >30V 5ns(Max) IR=100μA IF=10mA IR=10mA~1.0mA, RL=100OHM 1.88mm 0.69mm 0.56mm 10pF Measured at 1.0MHz, VR=1.0V 1/3 MCCSEMI.COM BAT54WS Curve Characteristics Fig. 1 - Typical Instantaneous Forward Characteristics Fig. 2 - Typical Reverse Leakage Characteristics 200 100 Instantaneous Reverse Leakage Current (μA) Instantaneous Forward Current (mA) 100 TA=100°C 10 TA=25°C 1 10 TA=100°C 1 TA=25°C 0.1 0.1 0.0 0.2 0.6 0.4 0.01 0.8 5 10 20 30 Reverse Voltage (V) Instantaneous Forward Voltage (V) Fig. 3 - Power Derating Curve 250 Power Dissipation (mW) 200 150 100 50 0 0 25 50 75 100 125 Ambient Temperature (°C) Rev.3-3-10262019 2/3 MCCSEMI.COM BAT54WS Ordering Information Device Packing Part Number-TP Tape&Reel: 3Kpcs/Reel Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-3-10262019 3/3 MCCSEMI.COM
