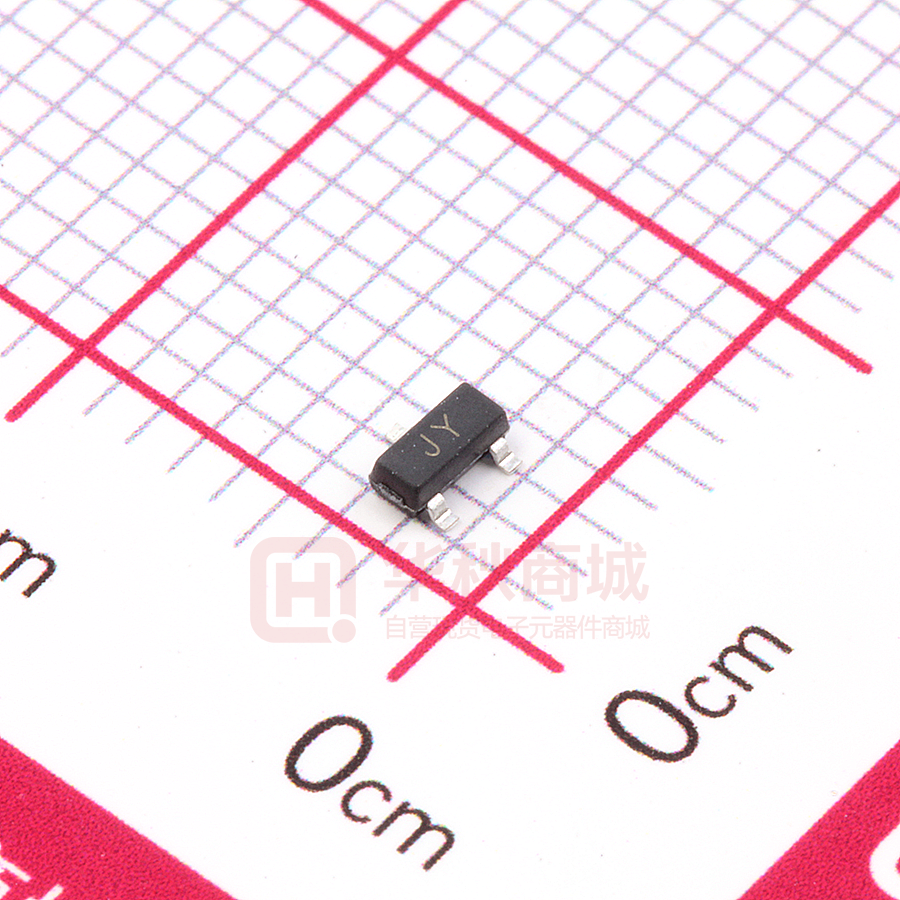

BAV199-TP

BAV199 Features • Low Current Leakage • Small Outline Surface Mount Package • Halogen Free. “Green” Device (Note 1) • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Dual Series Switching Diode Maximum Ratings • • Operating Junction Temperature Range: -55°C to +150°C Storage Temperature Range: -55°C to +150°C SOT-23 Device Marking MCC Part Number A D JY BAV199 C Forward Continuous Current IF 215mA F Electrical Characteristics @ 25°C Unless Otherwise Specified Minimum Reverse Breakdown Voltage E H G J L VBR 70V K IR=100μA IF=1.0mA IF=10.0mA IF=50.0mA IF=150.0mA Maximum Forward Voltage VF 0.90V 1.00V 1.10V 1.25V Maximum Leakage Current IR 5.0nA VR=75V Maximum Junction Capacitance CJ 2.0pF VR=0.0V,f=1.0MHz Maximum Reverse Recovery Time trr 3.0μs DIMENSIONS INCHES MM DIM MIN MAX MIN MAX A 0.110 0.120 2.80 3.04 B 0.083 0.104 2.10 2.64 C 0.047 0.055 1.20 1.40 0.034 0.041 0.85 1.05 D E 0.067 0.083 1.70 2.10 F 0.018 0.024 0.45 0.60 G 0.0004 0.006 0.01 0.15 H 0.035 0.043 0.90 1.10 J 0.003 0.007 0.08 0.18 K 0.014 0.020 0.35 0.51 L 0.007 0.020 0.20 0.50 NOTE Suggested Solder Pad Layout Note: 1. Halogen free "Green” products are defined as those which contain
