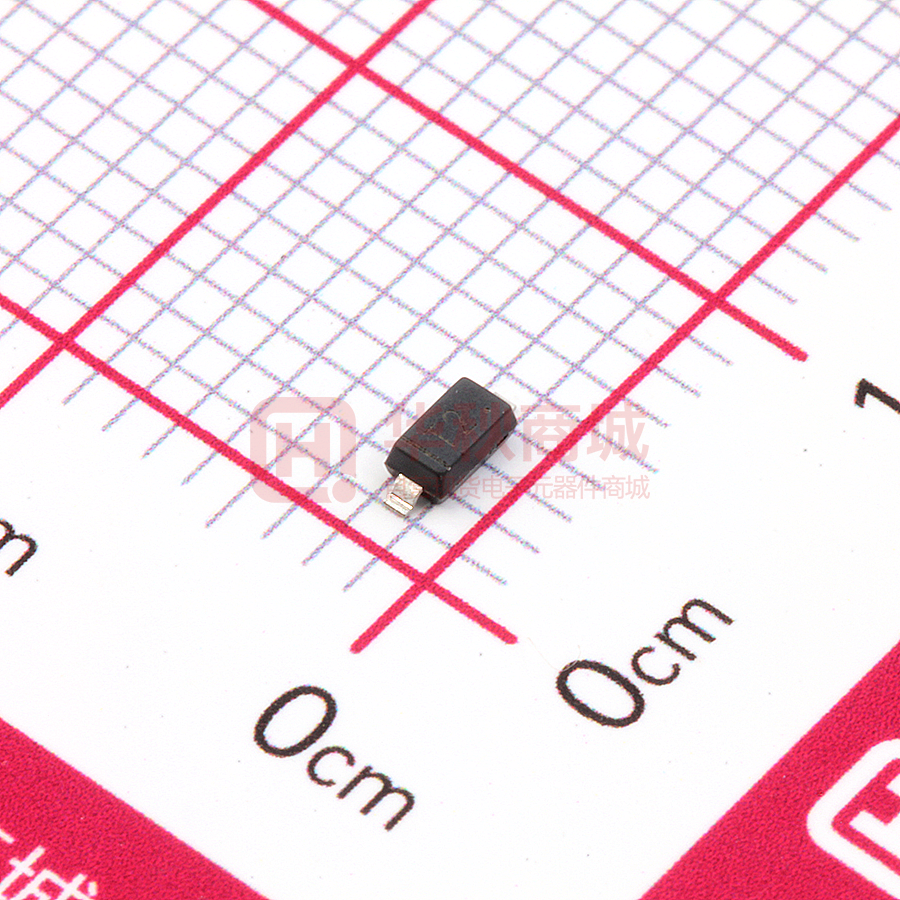

BAV20W-TP

BAV19W,BAV20W,BAV21W Features • • • • • Silicon Epitaxial Planar Diodes Halogen Free. “Green” Device (Note 1) Moisture Sensitivity Level 1 Epoxy Meets UL 94 V-0 Flammability Rating Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) 410mW Small Signal Diodes 120 to 250 Volts Maximum Ratings • Operating Junction Temperature Range: -55°C to +150°C • Storage Temperature Range: -55°C to +150°C • Thermal Resistance:305°C/W Junction to Ambient MCC Part Number Device Marking Maximum Recurrent Peak Reverse Voltage Maximum Continuous RMS Reverse Voltage Voltage BAV19W A8 120V 71V 100V BAV20W T2 200V 106V 150V BAV21W T3 250V 141V 200V Forward DC Current Rectified Current (Average) Half Wave Rectification with Resist IF 250mA SOD-123 A B C E Cathode Mark H TA=25℃ D J G IF(AV) 200mA TA=25℃ DIM Repetitive Peak Forward Current IFRM 625mA Peak Forward Surge Current IFSM 1.0A Power Dissipation Ptot 410mW f>50Hz,TA=25℃ t
