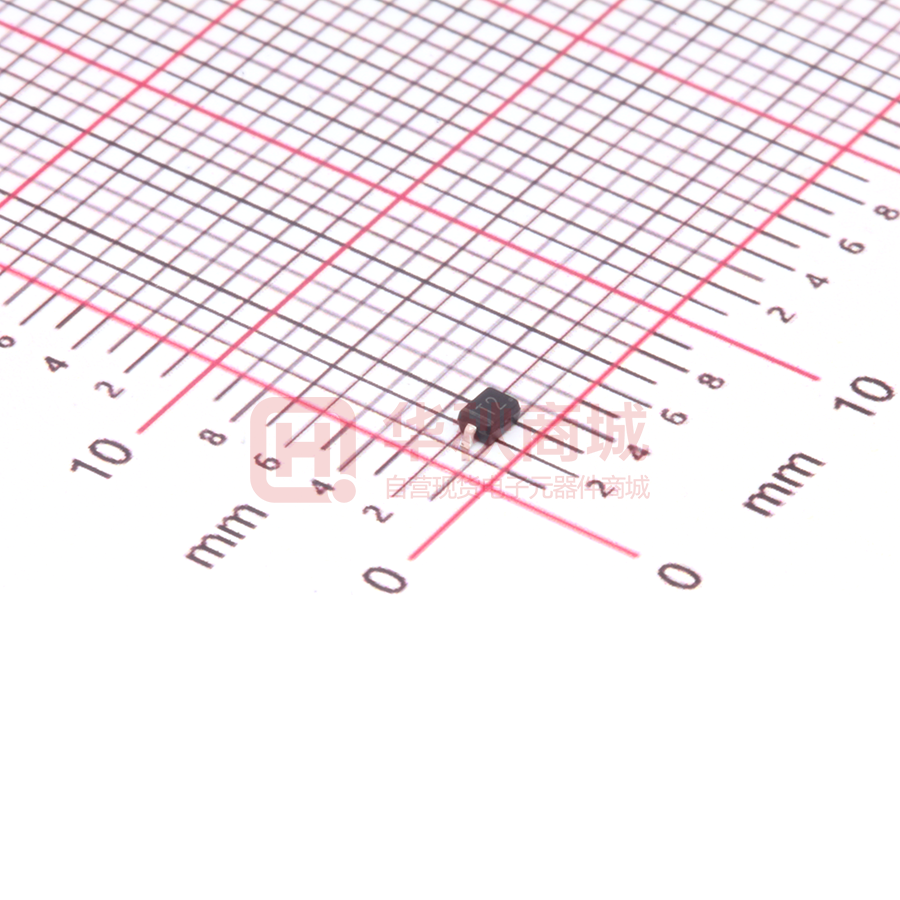

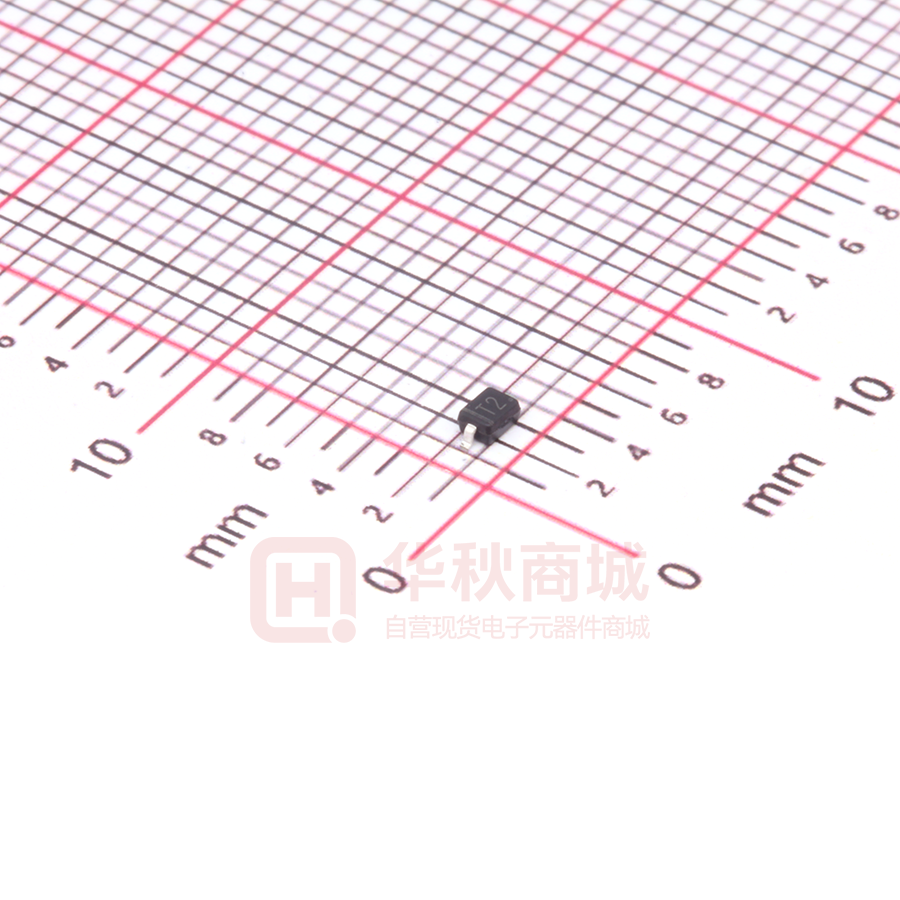

BAV20WS-TP

BAV19WS,BAV20WS,BAV21WS Features • • • • • • • Silicon Epitaxial Planar Diodes For General Purpose This Diode is Also Available in Other Case Halogen Free. “Green” Device (Note 1) Moisture Sensitivity Level 1 Epoxy Meets UL 94 V-0 Flammability Rating Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) 250mW Small Signal Diodes 120 to 250 Volts Maximum Ratings • • • Operating Junction Temperature Range: -65°C to +150°C Storage Temperature Range: -65°C to +150°C Thermal Resistance:500°C/W Junction to Ambient MCC Part Number Device Marking Maximum Recurrent Peak Reverse Voltage SOD-323 Maximum Continuous RMS Reverse Voltage Voltage BAV19WS A8 120V 71V 100V BAV20WS T2 200V 106V 150V BAV21WS T3 250V 141V 200V A B C E Cathode Mark H Peak Forward Current IFM 400mA Note2 Average Rectified Output Current Io 200mA Note2 Peak Forward Surge Current IFSM 9.0A 3.0A 1.7A 0.5A Repetitive Peak Forward Curren IFRM 625mA f>50Hz, Ta=25°C(2) Power Dissipation Ptot 250mW Ta=25°C(2) D J G t=1µs t=100µs t=10ms t=1s DIM A B C D E G H J DIMENSIONS INCHES MM MIN MAX MIN MAX 0.090 0.107 2.30 2.70 0.063 0.071 1.60 1.80 0.045 0.053 1.15 1.35 0.031 0.045 0.80 1.15 0.010 0.016 0.25 0.40 0.004 0.018 0.10 0.45 0.004 0.010 0.10 0.25 ----- 0.006 ----- 0.15 NOTE Suggested Solder Pad Layout Note: 1. Halogen free "Green” products are defined as those which contain
