MCC
R
Micro Commercial Components
Micro Commercial Components
130 W Cochran St, Unit B
Simi Valley, CA 93065
Tel:818-701-4933
BAV70
Features
•
•
•
•
Low Current Leakage
Low Cost
Small Outline Surface Mount Package
Lead Free Finish/Rohs Compliant ("P"Suffix designates
RoHS Compliant. See ordering information)
x
•
•

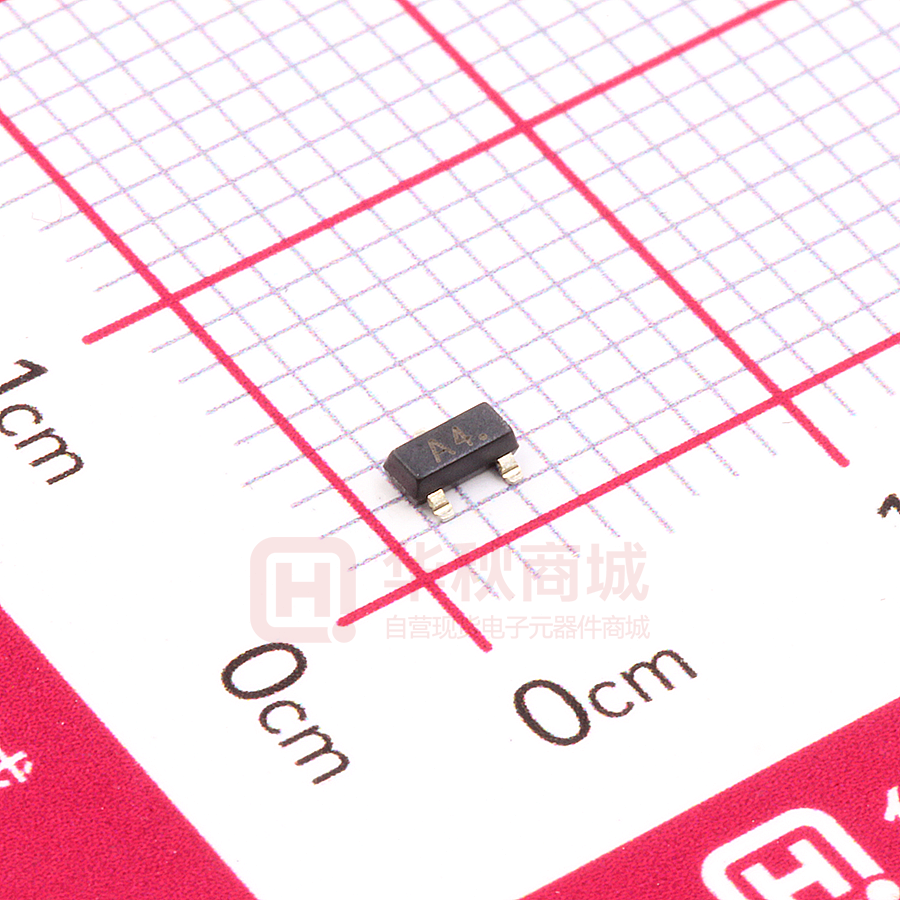

Marking:A4/JA
Epoxy meets UL 94 V-0 flammability rating
Moisture Sensitivity Level 1
Switching Diode
C
Halogen free available upon request by adding suffix "-HF"
•
350mW 75 Volt Dual
SOT-23
A
A
A
D
Maximum Ratings
•
•
•
C
Operating Temperature: -55°C to +150°C
Storage Temperature: -55°C to +150°C
Maximum Thermal Resistance; 357℃/W Junction To Ambient
F
B
E
Electrical Characteristics @ 25°C Unless Otherwise Specified
Reverse Voltage
Average Rectified
Output Current
Power Dissipation
Peak Forward Surge
Current
Maximum
Instantaneous
Forward Voltage
Maximum DC
Reverse Current At
Rated DC Blocking
Voltage
Typical Junction
Capacitance
Reverse Recovery
Time
VR
75V
IO
200mA
PTOT
350mW
IFSM
1.0A
VF *
IR
DIMENSIONS
t=1s,Non-Repetitive
IFM = 1mA;
855mV
IFM = 10mA;
1000mV
IFM = 50mA;
1250mV
IFM = 150mA;
CJ
2 pF
Trr
4nS
J
K
715mV
2.5µA
50µA
H
G
DIM
A
B
C
D
E
F
G
H
J
K
INCHES
MIN
.110
.083
.047
.035
.070
.018
.0005
.035
.003
.015
MM
MIN
2.80
2.10
1.20
.89
1.78
.45
.013
.89
.085
.37
MAX
3.04
2.64
1.40
1.03
2.05
.60
.100
1.12
.180
.51
NOTE
Suggested Solder
Pad Layout
VR=75Volts
TJ = 25°C
TJ = 150°C
Measured at
1.0MHz, VR=0V
IF=10mA
VR = 0V
RL=500Ω
MAX
.120
.104
.055
.041
.081
.024
.0039
.044
.007
.020
.031
.800
.035
.900
.079
2.000
inches
mm
*Pulse test: Pulse width 300 µsec, Duty cycle 2%
.037
.950
Revision: D
www.mccsemi.com
1 of 3
.037
.950
2018 /07/13
MCC
Typical Characteristics
R
Micro Commercial Components
Forward Characteristics
Reverse Characteristics
100
300
100
(uA)
TJ =125 ℃
10
REVERSE CURRENT IR
FORWARD CURRENT
I F (mA)
10
TJ =25 ℃
TJ =85 ℃
TJ =-40 ℃
1
TJ =125 ℃
1
TJ =85 ℃
0.1
TJ =25 ℃
0.01
TJ =-40 ℃
1E-3
0.1
0
200
400
600
800
FORWARD VOLTAGE
Revision: D
1000
1200
1E-4
1400
V F (mV)
0
10
20
30
40
REVERSE VOLTAGE
www.mccsemi.com
2 of 3
50
VR
60
70
80
(V)
2018/07/13
MCC
R
Micro Commercial Components
Ordering Information :
Device
Packing
Part Number-TP
Tape&Reel: 3Kpcs/Reel
Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF
***IMPORTANT NOTICE***
Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to
make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components
Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it
convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all
risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are
represented on our website, harmless against all damages.
***LIFE SUPPORT***
MCC's products are not authorized for use as critical components in life support devices or systems without the express written
approval of Micro Commercial Components Corporation.
***CUSTOMER AWARENESS***
Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking
strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages
customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on
our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine
parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty
coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global
problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized
distributors.
www.mccsemi.com
Revision: D
3 of 3
2018/07/13
