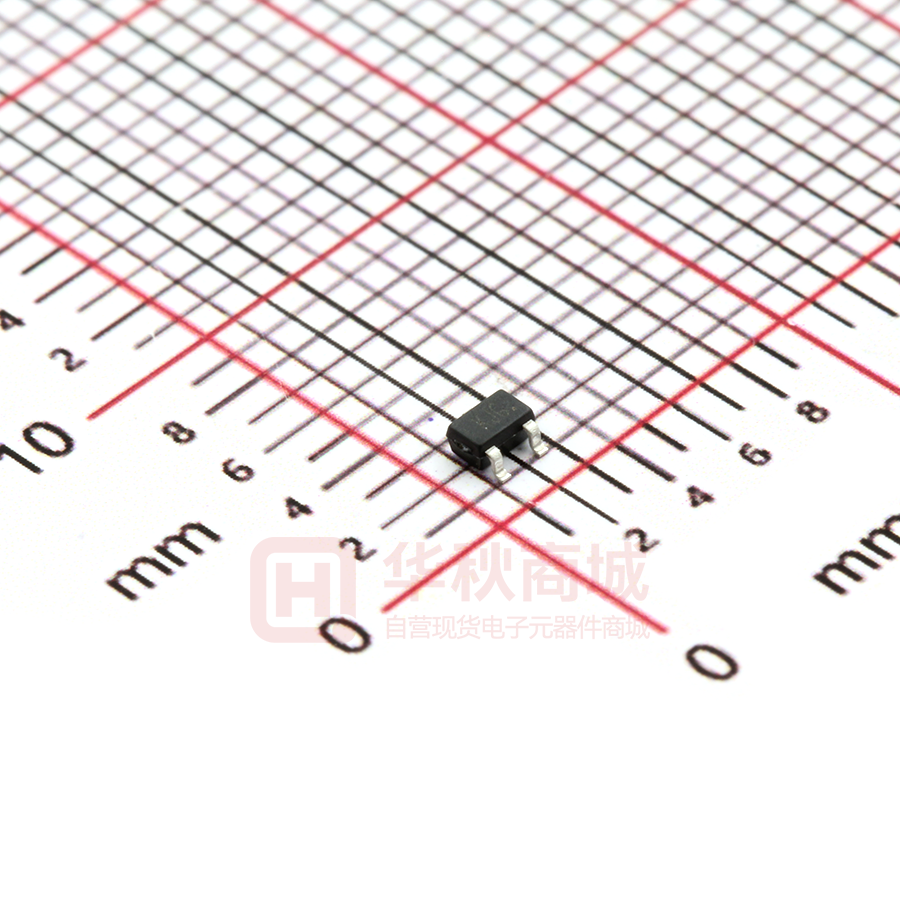

BAV99WT-TP

BAV99WT Features • Small Outline Surface Mount Package • Low Cost • Low Current Leakage • Halogen Free Available Upon Request By Adding Suffix "-HF" • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) 200mW 100Volt Plastic-Encapsulate Diode Maximum Ratings • • • Operating Junction Temperature Range: -55°C to +150°C Storage Temperature Range: -55°C to +150°C Thermal Resistance:625°C/W Junction to Ambient MCC Part Number Device Marking BAV99WT KJG SOT-323 A D B C Average Rectified Output Current Io Non-Repetitive Peak Forward Surge Current IFSM Power Dissipation PTOT 150mA F 2.0A 1.0A @1μs @1s E H G J K 200mW DIMENSIONS INCHES MM DIM MIN MAX MIN MAX A 0.071 0.087 1.80 2.20 0.045 0.053 1.15 1.35 B 0.083 0.096 2.10 2.45 C 0.026 Nominal 0.65 Nominal D E 0.047 0.055 1.20 1.40 F 0.012 0.016 0.30 0.40 G 0.000 0.004 0.00 0.10 H 0.035 0.044 0.90 1.10 0.002 0.010 0.05 0.25 J K 0.006 0.016 0.15 0.40 Internal Structure NOTE Suggested Solder Pad Layout 0.70 (mm) 0.90 1.90 0.65 0.65 Rev.3-1-01012019 1/4 MCCSEMI.COM BAV99WT Electrical Characteristics @ 25°C Unless Otherwise Specified VR 100V Maximum Forward Voltage VF 0.715V 0.855V 1.000V 1.250V IFM=1.0mA IFM=10.0mA IFM=50.0mA IFM=150.0mA Maximum DC Reverse Current At Rated DC Blocking Voltage IR 2.5μA VR=75V,Tj=25℃ Typical Junction Capacitance CJ 2.0pF VR=0.0V,f=1.0MHz Reverse Recovery Time trr 4.0ns IF=10mA, VR=0V,RL=100Ω Reverse Breakdown Voltage *Pulse test: Pulse width 300 µsec, Duty cycle 2% Rev.3-1-01012019 2/4 MCCSEMI.COM BAV99WT Curve Characteristics Fig. 2 - Typical Reverse Leakage Characteristics Fig. 1 - Typical Instantaneous Forward Characteristics 10000 Instantaneous Reverse Leakage Current (nA) Instantaneous Forward Current (mA) 1000 100 TA=100°C TA=25°C 10 1 0.2 1000 100 10 1 0.4 0.6 0.8 1.0 1.2 1.4 TA=100°C TA=25°C 0 20 40 60 80 100 Reverse Voltage (V) Instantaneous Forward Voltage (V) Fig. 3 - Power Derating Curve Power Dissipation (mW) 250 200 150 100 50 0 0 25 50 75 100 125 150 Ambient Temperature (°C) Rev.3-1-01012019 3/4 MCCSEMI.COM BAV99WT Ordering Information Device Packing Part Number-TP Tape&Reel: 3Kpcs/Reel Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-1-01012019 4/4 MCCSEMI.COM
