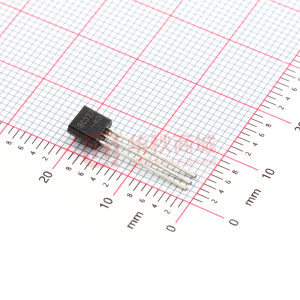

BC327-40-BP

MCC Micro Commercial Components TM
  omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# BC327-16/25/40 BC328-16/25/40 PNP Plastic-Encapsulate Transistors TO-92 A E Features Capable of 0.625Watts of Power Dissipation. Collector-current : -0.8A Collector-base Voltage :VCBO=-50V(BC327) , VCBO=-30V(BC328) Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 and MSL rating 1 Lead Free Finish/Rohs Compliant ("P"Suffix designates Compliant. See ordering information) • Maximum Ratings Operating temperature : -55 to +150 Storage temperature : -55 to +150 Electrical Characteristics @ 25 Symbol Parameter Unless Otherwise Specified Min Max ---45 -25 ---50 -30 -5.0 Vdc Units Vdc OFF CHARACTERISTICS V(BR)CEO Collector-Emitter Breakdown Voltage (IC=-10mAdc, IB=0) BC327 BC328 Collector-Base Breakdown Voltage (IC=-100µAdc, IE=0) BC327 BC328 Collector-Emitter Breakdown Voltage (IE=-10µAdc, IC=0) Collector Cutoff Current (VCB=-45Vdc,IE=0) BC327 (VCB=-25Vdc,IE=0) BC328 Collector Cutoff Current BC327 (VCE=-40Vdc,IB=0) (VCE=-20Vdc,IB=0) BC328 Emitter Cutoff Current (VEB=-4.0Vdc, IC=0) DC Current Gain (IC=-100mAdc, VCE=-1.0Vdc) DC Current Gain (IC=-300mAdc, VCE=-1.0Vdc) Collector-Emitter Saturation Voltage (IC=-500mAdc, IB=-50mAdc) Base-Emitter Saturation Voltage (IC=-500mAdc,IB=-50mAdc) Current-Gain-Bandwidth Product (VCE=5.0V, f=100MHz, IC=10mA) Classification hFE(1) Marking Code 16 100~250 A 011 B V(BR)CBO V(BR)EBO ICBO --- Vdc µAdc C ----------- -0.1 -0.1 µAdc -0.2 -0.2 -0.1 ICEO IEBO µAdc 1 2 3 D ON CHARACTERISTICS hFE(1) hFE(2) VCE(sat) VBE(sat) 100 40 ----630 ---0.7 -1.2 ----Vdc Vdc 1.COLLECTOR 2.BASE 3.EMITTER G SMALL SIGNAL CHARACTERISTICS fT 260 --MHz INCHES MIN .170 .170 .550 .010 .130 .010 DIMENSIONS MM MIN 4.33 4.30 13.97 0.36 3.30 2.44 hFE CLASSIFICATION 25 160~400 B 011 40 250~630 C 011 DIM A B C D E G MAX .190 .190 .590 .020 .160 .104 MAX 4.83 4.83 14.97 0.56 3.96 2.64 NOTE Revision: 6 www.mccsemi.com 1 of 3 2008/08/27 MCC Micro Commercial Components TM www.mccsemi.com Revision: 6 2 of 3 2008/08/27 MCC Micro Commercial Components TM Ordering Information Device (Part Number)-AP (Part Number)-BP Packing Ammo Packing;2Kpcs/AmmoBox Bulk;1Kpcs/Bag ***IMPORTANT NOTICE*** Micro Commercial Components Corp . reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***APPLICATIONS DISCLAIMER*** Products offer by Micro Commercial Components Corp . are not intended for use in Medical, Aerospace or Military Applications. www.mccsemi.com Revision: 6 3 of 3 2008/08/27 3
