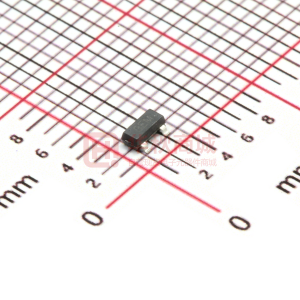

BC807-16W

MCC TM Micro Commercial Components
  omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# BC807-16W BC807-25W BC807-40W PNP Silicon General Purpose Transistors SOT-323 A D Features • • • • • • • • • • Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information) Epoxy meets UL 94 V-0 flammability rating Moisure Sensitivity Level 1 Capable of 0.2Watts of Power Dissipation. Collector-current 0.5A Operating and storage junction temperature range: -55OC to +150 OC Mechanical Data Case: SOT-323 Molded Plastic Terminals: Solderable per MIL-STD-202, Method 208 Weight: 0.005 grams (approx.) Device Marking: BC807-16W 5A BC807-25W 5B BC807-40W 5C F C B C Electrical Characteristics @ 25OC Unless Otherwise Specified Symbol Parameter Collector-Emitter Breakdown Voltage (IC=10mAdc, IB =0) Collector-Base Breakdown Voltage (IC=10uAdc, IE =0) Collector-Emitter Breakdown Voltage (IE =1.0uAdc, IC=0) Collector Cutoff Current (VCB=20Vdc,IE =0) Collector Cutoff Current (VCE=20V dc,IB =0) Emitter Cutoff Current (VEB =5.0Vdc, IC=0) DC Current Gain (IC=100mAdc, V CE=1.0Vdc) BC807-16W BC807-25W BC807-40W DC Current Gain (IC=500mAdc, V CE=1.0Vdc) Collector-Emitter Saturation Voltage (IC=500mAdc, IB =50mAdc) Base-Emitter Voltage (IC=500mAdc,VCE =1Vdc) Current-Gain-Bandwidth Product (VCE=5.0V, f=100MHz, I C=10mA) Collector output capacitance ( VCB=10V, f=1MHz) Min 45 50 5.0 ------Max ------0.1 0.2 0.1 Units Vdc Vdc Vdc uAdc uAdc uAdc DIM A B C D E F G H J K E B E OFF CHARACTERISTICS V (BR)CEO V (BR)CBO V (BR)EBO ICBO ICEO IEBO G H J K DIMENSIONS ON CHARACTERISTICS hFE(1) INCHES MIN MAX .071 .087 .045 .053 .079 .087 .026 Nominal .047 .055 .012 .016 .000 .004 .035 .039 .004 .010 .012 .016 MM MIN MAX 1.80 2.20 1.15 1.35 2.00 2.20 0.65Nominal 1.20 1.40 .30 .40 .000 .100 .90 1.00 .100 .250 .30 .40 NOTE hFE(2) V CE(sat) V BE(on) 100 160 250 40 ----- 250 400 600 --0.7 1.2 --------0.90 0.70 Vdc 1.90 MM Vdc SMALL SIGNAL CHARACTERISTICS fT Cob 80 --10 MHz pF 0.65 0.65 www.mccsemi.com Revision: A 1 of 4 2011/01/01 BC807-16W thru BC807-40W MCC Micro Commercial Components TM www.mccsemi.com Revision: A 2 of 4 2011/01/01 BC807-16W thru BC807-40W MCC Micro Commercial Components TM www.mccsemi.com Revision: A 3 of 4 2011/01/01 MCC Micro Commercial Components TM Ordering Information : Device Part Number-TP Packing Tape&Reel;3Kpcs/Reel ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. www.mccsemi.com Revision: A 4 of 4 2011/01/01 3
