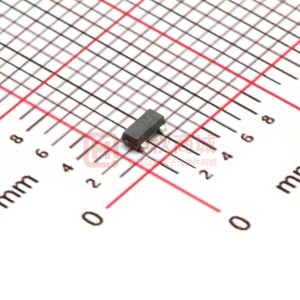

BC807-25

MCC TM Micro Commercial Components
  omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# BC807-16 BC807-25 BC807-40 PNP Silicon General Purpose Transistors SOT-23 A D • Features Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information) Capable of 0.3Watts of Power Dissipation. Collector-current 0.5A Collector-base Voltage 50V Operating and storage junction temperature range: -55OC to +150 OC Epoxy meets UL 94 V-0 flammability rating Moisure Sensitivity Level 1 • • • • • • • • • • Mechanical Data Case: SOT-23 Molded Plastic Terminals: Solderable per MIL-STD-202, Method 208 Weight: 0.008 grams (approx.) Device Marking: BC807-16 5A1 BC807-25 5B BC807-40 5C Symbol Parameter Collector-Emitter Breakdown Voltage (IC=10mAdc, IB =0) Collector-Base Breakdown Voltage (IC=10uAdc, IE =0) Collector-Emitter Breakdown Voltage (IE =1.0uAdc, IC=0) Collector Cutoff Current (VCB=45Vdc,IE =0) Collector Cutoff Current (VCE=40V dc,IE =0) Emitter Cutoff Current (VEB =4.0Vdc, IC=0) DC Current Gain (IC=100mAdc, V CE=1.0Vdc) BC807-16 BC807-25 BC807-40 DC Current Gain (IC=500mAdc, V CE=1.0Vdc) Collector-Emitter Saturation Voltage (IC=500mAdc, IB =50mAdc) Base-Emitter Saturation Voltage (IC=500mAdc,IB =50mAdc) Current-Gain-Bandwidth Product (VCE=5.0V, f=100MHz, IC=10mA) Min 45 50 5.0 ------Max ------0.1 0.2 0.1 Units G 3 C B C B F E E Electrical Characteristics @ 25OC Unless Otherwise Specified OFF CHARACTERISTICS V (BR)CEO V (BR)CBO V (BR)EBO ICBO ICEO IEBO Vdc K H J Vdc Vdc uAdc uAdc uAdc DIM A B C D E F G H J K DIMENSIONS INCHES MIN MAX .110 .120 .083 .098 .047 .055 .035 .041 .070 .081 .018 .024 .0005 .0039 .035 .044 .003 .007 .015 .020 MM MIN 2.80 2.10 1.20 .89 1.78 .45 .013 .89 .085 .37 MAX 3.04 2.64 1.40 1.03 2.05 .60 .100 1.12 .180 .51 NOTE ON CHARACTERISTICS hFE(1) Suggested Solder Pad Layout 100 160 250 40 ----250 400 600 --0.7 1.2 --------Vdc Vdc .037 .950 .031 .800 .035 .900 .079 2.000 inches mm hFE(2) V CE(sat) V BE(sat) SMALL SIGNAL CHARACTERISTICS fT 100 --MHz .037 .950 www.mccsemi.com Revision: A 1 of 3 2011/01/01 BC807-16 thru BC807-40 MCC Micro Commercial Components +1.0 θVC for VCE(sat) TM VCE = -1.0 V TA = 25°C hFE, DC CURRENT GAIN θV, TEMPERATURE COEFFICIENTS (mV/°C) 1000 0 100 -1.0 θVB for VBE -2.0 10 -0.1 -1.0 -10 -100 IC, COLLECTOR CURRENT (mA) -1000 -1.0 -10 -100 IC, COLLECTOR CURRENT -1000 Figure 1. DC Current Gain Figure 4. Temperature Coefficients VCE , COLLECTOR-EMITTER VOLTAGE (VOLTS) -1.0 TJ = 25°C -0.8 -0.6 -0.4 IC = -300 mA -0.2 0 -0.01 IC = -10 mA -0.1 -1.0 -10 IB, BASE CURRENT (mA) -100 IC = -100 mA IC = -500 mA V, VOLTAGE (VOLTS) -1.0 TA = 25°C -0.8 -0.6 -0.4 -0.2 VCE(sat) @ IC/IB = 10 0 -1.0 -10 -100 IC, COLLECTOR CURRENT (mA) -1000 VBE(sat) @ IC/IB = 10 VBE(on) @ VCE = -1.0 V Figure 2. Saturation Region Figure 3. “On” Voltages www.mccsemi.com Revision: A 2 of 3 2011/01/01 MCC Micro Commercial Components TM Ordering Information : Device Part Number-TP Packing Tape&Reel;3Kpcs/Reel ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. www.mccsemi.com Revision: A 3 of 3 2011/01/01 3
