MCC
Features
omponents 21201 Itasca Street Chatsworth !"# $
% !"#

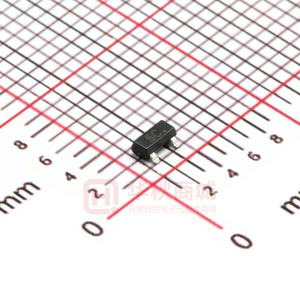

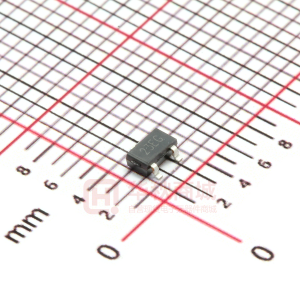

BC817-16 THRU BC817-40
NPN Small Signal Transistor 310mW
SOT-23
A D
l Ideally Suited for Automatic Insertion l 150oC Junction Temperature l For Switching and AF Amplifier Applications l Epitaxial Planar Die Construction
Mechanical Data
l Case: SOT-23, Molded Plastic l Terminals: Solderable per MIL-STD-202, Method 208 l Polarity: See Diagram
l Weight: 0.008 grams ( approx.) l Marking: BC817-16 6A
BC817-25 BC817-40 6B
F E
C
B
6C
G H J
Maximum Ratings @ 25oC Unless Otherwise Specified
Charateristic Collector-Emitter Voltage Emitter-Base Voltage Collector Current Peak Collector Current Peak Emitter Current Power Dissipation@T s=50 C(Note1) Operating & Storage Temperature
o
Symbol Value VCEO 45 VEBO IC ICM IEM Pd 5 800 1000 1000 310
Unit V V mA mA mA mW
o
DIM A B C D E F G H J K INCHES MIN .110 .083 .047 .035 .070 .018 .0005 .035 .003 .015 DIMENSIONS MM MIN 2.80 2.10 1.20 .89 1.78 .45 .013 .89 .085 .37
Tj, TSTG -55~150
2
C
MAX .120 .098 .055 .041 .081 .024 .0039 .044 .007 .020
MAX 3.04 2.64 1.40 1.03 2.05 .60 .100 1.12 .180 .51
NOTE
Note: 1. Device mounted on Ceramic Substrate 0.7mm X 2.5cm area
.035 .900
Suggested Solder Pad Layout
.031 .800
.079 2.000
inches mm
.037 .950 .037 .950
www.mccsemi.com
BC817-16 thru BC817-40
Electrical Characteristics
Characteristic DC Current Gain Current Gain Group -16 -25 -40 Current Gain Group -16 -25 -40 @25°C unless otherwise specified Symbol Min 100 160 250 60 100 170 — — — — — — 100 — Max 250 400 600 — — — 320 400 0.7 1.2 100 5.0 100 — 12 Unit
MCC
Test Condition VCE = 1.0V, IC = 100mA — VCE = 1.0V, IC = 300mA
hFE
Thermal Resistance, Junction to Substrate Backside Thermal Resistance, Junction to Ambient Air Collector-Emitter Saturation Voltage Base-Emitter Voltage Collector-Emitter Cutoff Current Emitter-Base Cutoff Current Gain Bandwidth Product Collector-Base Capacitance
RGSB RGJA VCE(SAT) VBE ICES IEBO fT CCBO
K/W K/W V V nA µA nA MHz pF
Note 1 Note 1 IC = 500mA, IB = 50mA VCE = 1.0V, IC = 300mA VCE = 45V VCE = 25V, Tj = 150°C VEB = 4.0V VCE = 5.0V, IC = 10mA, f = 50MHz VCB = 10V, f = 1.0MHz
www.mccsemi.com
BC817-16 thru BC817-40
MCC
www.mccsemi.com
