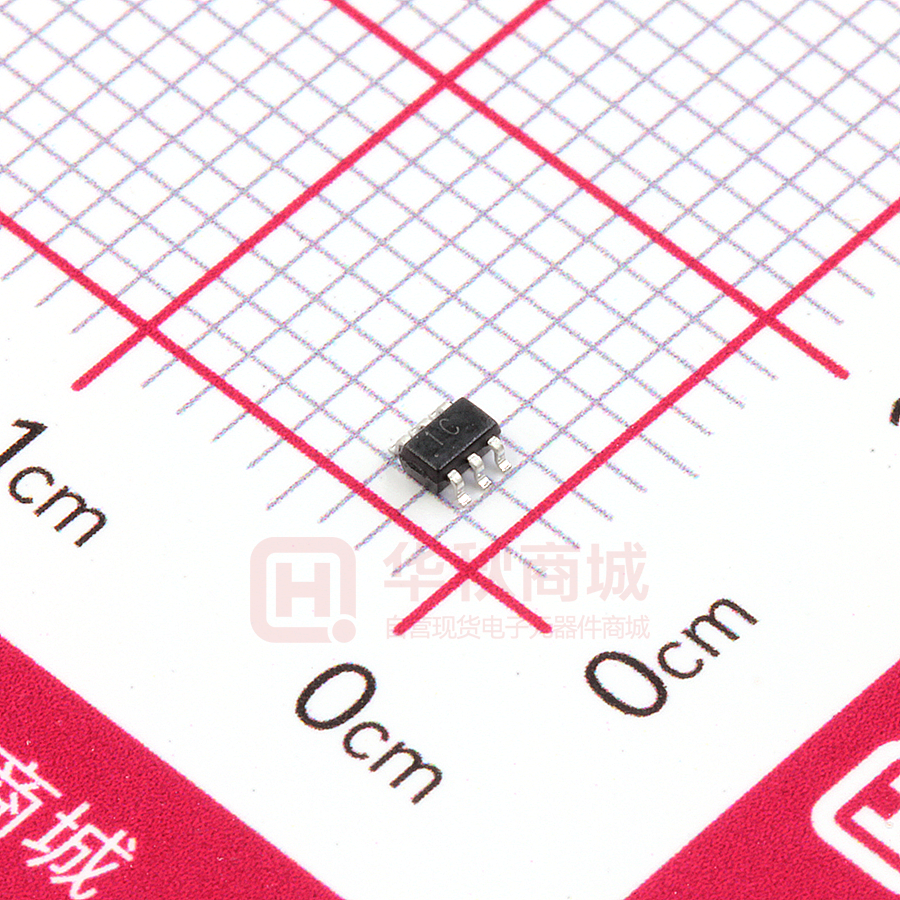

BC847BS-TP

MCC TM Micro Commercial Components
  omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# BC847BS Features Ideally Suited for Automatic Insertion Ultra-Small Surface Mount Package For Switching and AF Amplifier Applications Case Material: Molded Plastic.UL Flammability Classification Rating 94V-0 and MSL Rating 1 Marking:1C Dual NPN Small Signal Transistor 300mW SOT-363 G B C Mechanical Data Case: SOT-363, Molded Plastic Polarity: See Diagram Maximum Ratings @ 25 Symbol Unless Otherwise Specified Value Units A H Parameter OFF CHARACTERISTICS V(BR)CEO V(BR)CBO V(BR)EBO IC ICM Pd TJ, TSTG Collector-Emitter Breakdown Voltage Collector-Base Breakdown Voltage Emitter-Base Breakdown Voltage Collector Current Peak Collector Current Power Dissipation @ TA=25 Operating & Storage Temperature 45 50 6.0 100 200 300 -55~+150 Vdc Vdc Vdc mAdc mAdc DIMENSIONS K J D L M mW DIM A B C D G H J K L M INCHES MIN .006 .045 .085 .026 .047 .071 --.035 .010 .003 .055 .087 .004 .043 .018 .006 MAX .014 .053 .096 MM MIN MAX 0.15 0.35 1.15 1.35 2.15 2.45 0.65Nominal 1.20 1.40 1.80 2.20 --0.10 0.90 1.10 0.26 0.46 0.08 0. 15 NOTE Revision: 6 www.mccsemi.com 1 of 5 2010/06/17 BC847BS Electrical Characteristics @ 25 Symbol Parameter DC Current Gain Collector-Emitter Saturation Voltage Base-Emitter Voltage Collector-Cutoff Current Gain Bandwidth Product Collector-output Capacitance MCC TM Micro Commercial Components Unless Otherwise Specified Min 200 --580 ------Typ ------665 --200 2 Max 450 250 650 700 15 ----Units --mV mV nA MHz pF Test Condition VCE=5.0V, IC=2.0mA IC=10mA, IB=0.5mA IC=100mA, IB=5.0mA VCE=5.0V, IC=2.0mA VCB=30V, IE=0 VCE=5.0V, IC=10mA, f=100MHz V CB=10V, f=1.0MHz OFF CHARACTERISTICS hFE VCE(SAT) VBE(ON) ICBO fT COB Revision: 6 www.mccsemi.com 2 of 5 2010/06/17 BC847BS VCESAT - COLLECTOR-EMITTER VOLTAGE (V) MCC TM Micro Commercial Components h FE - TYPICAL PULSED CURRENT GAIN Typical Pulsed Current Gain vs Collector Current 1200 1000 800 600 25 °C 125 °C Collector-Emitter Saturation Voltage vs Collector Current 0.3 0.25 0.2 125 °C V CE = 5.0 V β = 10 0.15 0.1 0.05 0.1 25 °C - 40 °C 400 - 40 °C 200 0 0.01 0.03 0.1 0.3 1 3 10 30 I C - COLLECTOR CURRENT (mA) 100 1 10 I C - COLLECTOR CURRENT (mA) 100 VBESAT - COLLECTOR-EMITTER VOLTAGE (V) 1 - 40 °C VBEON- BASE-EMITTER ON VOLTAGE (V) Base-Emitter Saturation Voltage vs Collector Current Base-Emitter ON Voltage vs Collector Current 1 0.8 0.6 125 °C - 40 °C 25 °C 0.8 0.6 0.4 0.2 0.1 1 10 I C - COLLECTOR CURRENT (mA) 100 25 °C 125 °C β = 10 0.4 V CE = 5.0 V 0.2 0.1 1 10 I C - COLLECTOR CURRENT (mA) 40 Collector-Cutoff Current vs Ambient Temperature I CBO - COLLE CTOR CURRENT (nA) 10 Vcb=45v CAPACITANCE (pF) 4 3 5 Input and Output Capacitance vs Reverse Bias Voltage f = 1.0 MHz 1 Cte 2 1 0 C ob 0.1 25 50 75 100 125 TA - AMBIE NT TEMP ERATURE ( ° C) 150 0 4 8 12 16 REVERSE BIAS VOLTAGE (V) 20 Revision: 6 www.mccsemi.com 3 of 5 2010/06/17 BC847BS CHARAC TERIS TICS R ELATI VE TO VALUE AT T A = 25 C MCC TM Micro Commercial Components Contours of Constant Gain Bandwidth Product (f T ) V CE - COLLECTOR VOLTAGE (V) 10 7 5 150 MHz 175 MHz Normalized Collect or-Cutoff Current vs Ambient Temperature ° 100 1000 100 3 2 125 MHz 100 MHz 75 MHz 10 1 0.1 1 10 I C - COLLECTOR CURRENT (mA) 1 25 50 75 100 125 T A - AMBIE NT TEMP ERATURE ( °C) 150 Noise Figure vs Frequency 10 NF - NOISE FIGURE (dB) I C = 200 µA, R S = 10 kΩ I C = 100 µA, R S = 10 kΩ I C = 1.0 mA, R S = 500 Ω 4 I C = 1.0 mA, R S = 5.0 kΩ V CE = 5.0V 0 0.0001 0.001 0.01 0.1 1 f - FREQUENCY (MHz) 10 100 NF - NOISE FIGURE (dB) 5 Wideband Noise Frequency vs Source Resistance V CE = 5.0 V 8 4 3 2 1 BANDWIDTH = 15.7 kHz 6 I C = 100 µA I C = 30 µA 2 I C = 10 µA 0 1,000 2,000 5,000 10,000 20,000 50,000 100,000 R S - SOURCE RESISTANCE (Ω ) Power Dissipation vs Ambient Temperature P D - POWER DISSIPATION (mW) 500 400 300 200 100 0 0 25 50 75 100 TEMPERATURE (º C) 125 150 Revision: 6 www.mccsemi.com 4 of 5 2010/06/17 MCC Micro Commercial Components TM Ordering Information Device (Part Number)-TP Packing Tape&Reel;3Kpcs/Reel ***IMPORTANT NOTICE*** Micro Commercial Components Corp . reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the expresse written approval of Micro Commercial Components Corporation. www.mccsemi.com Revision: 6 5 of 5 2010/06/17
