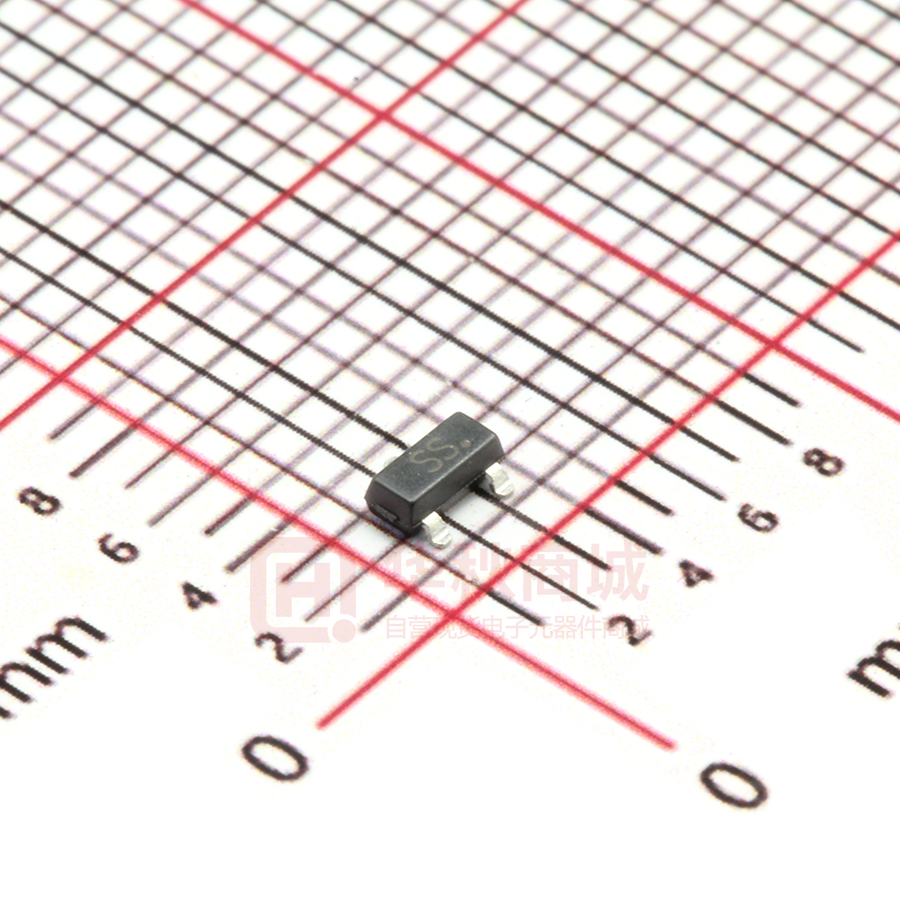

BSS138-TP

BSS138 Features • • • • • • • High Dense Cell Design for Extremely Low RDS(ON) Voltage Controlled Small Signal Switch Surface Mount Package Epoxy Meets UL 94 V-0 Flammability Rating Moisture Sensitivity Level 1 Halogen Free Available Upon Request By Adding Suffix "-HF" Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) N-Channel MOSFET Maximum Ratings • Operating Junction Temperature Range: -55°C to +150°C • Storage Temperature: -55°C to +150°C • Thermal Resistance: 357°C/W Junction to Ambient Parameter SOT-23 Symbol Rating Unit Drain-Source Voltage VDS 50 V Gate-Source Voltage VGS ±20 V Drain Current-Continuous ID 0.22 A Power Dissipation PD 0.35 W A D C F B E H G J L K DIMENSIONS INCHES MM DIM MIN MAX MIN MAX A 0.110 0.120 2.80 3.04 B 0.083 0.104 2.10 2.64 C 0.047 0.055 1.20 1.40 0.034 0.041 0.85 1.05 D E 0.067 0.083 1.70 2.10 F 0.018 0.024 0.45 0.60 G 0.0004 0.006 0.01 0.15 H 0.035 0.043 0.90 1.10 J 0.003 0.007 0.08 0.18 K 0.012 0.020 0.30 0.51 L 0.007 0.020 0.20 0.50 Internal Structure D 1. *$7E 2. 6285&( 3. '5$,1 G S Marking:SS NOTE Suggested Solder Pad Layout 0.031 0.800 0.035 0.900 0.079 2.000 0.037 0.950 Rev.3-3-04012019 1/4 inches mm 0.037 0.950 MCCSEMI.COM BSS138 ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Symbol Test Conditions Min Typ Max Unit Static Characteristics V(BR)DSS VGS=0V, ID=250µA 50 Gate-Threshold Voltage(Note1) VGS(th) VDS=VGS, ID=1mA 0.8 Gate-Body Leakage Current IGSS Zero Gate Voltage Drain Current IDSS Drain-Source Breakdown Voltage Drain-Source On-Resistance(Note1) RDS(on) V 1.5 V VGS=±20V, VDS=0V ±100 nA VDS=50V, VGS=0V 100 nA VGS=10V, ID=0.22A 3.5 VGS=4.5V, ID=0.22A 6 Forward Transconductance(Note1) gFS VDS=10V, ID=0.22A Diode Forward Voltage(Note1) VSD VGS=0V, IS=0.44A 120 Ω mS 1.4 V Dynamic Characteristics(Note2) Input Capacitance Ciss Output Capacitance Coss Reverse Transfer Capacitance Crss VDS=25V,VGS=0V, f=1MHz 27 60 13 20 6 15 pF Switching Characteristics Turn-On Delay Time(Note1,2) td(on) Turn-On Rise Time(Note1,2) tr Turn-Off Delay Time (Note1,2) td(off) Turn-Off Fall Time(Note1,2) 5 VDD=30V,VGS=10V,RG=6Ω, ID=0.29A tf 18 ns 36 14 Note: 1.Pulse Test : Pulse Width=300μs, Duty Cycle≤2%. 2.These Parameters Have No Way to Verify. Rev.3-3-04012019 2/4 MCCSEMI.COM BSS138 Curve Characteristics Fig. 2 - Transfer Characteristics Fig. 1 - Output Charact eristics 1.2 2.0 TA=25°C Pulsed VDS= 3V Pulesd 1.0 VGS=10V Drain Current (A) 1.5 Drain Current (A) VGS=5V 1.0 VGS=4V TA=25°C 0.8 TA=100°C 0.6 0.4 VGS=3V 0.5 0.2 VGS=2V 0.0 0.0 0 1 2 4 3 0 5 2 1 Drain To Source Voltage (V) 6 TA=25°C Pulsed Pulsed Drain-Source On-Resistance (Ω) Drain-Source On-Resistance (Ω) 5 Fig. 4 - RDS(ON)—VGS Fig. 3 - RDS(ON)—ID 1.5 1.4 4 3 Gate To Source Voltage (V) 1.3 VGS=4.5V 1.2 1.1 1.0 VGS=10V 0.9 0.8 0.7 5 ID=0.5A 4 3 TA=100°C 2 TA=25°C 1 0.6 0.5 0.1 0 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 0 1.0 4 2 6 8 10 Gate To Source Voltage (V) Drain Current (A) Fig. 5 - IS—VSD Fig. 6 - Threshold Voltage 1 2.0 TA=100°C Threshold Voltage (V) Source Current (A) Pulsed 0.1 TA=25°C 0.01 1.5 ID= 250μA 1.0 0.5 0.001 0.2 0.4 0.6 0.8 1.0 1.2 1.4 50 75 100 125 Junction Temperature (°C) Source To Drain Voltage (V) Rev.3-3-04012019 0.0 25 3/4 MCCSEMI.COM BSS138 Ordering Information Device Packing Part Number-TP Tape&Reel:3Kpcs/Reel Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-3-04012019 4/4 MCCSEMI.COM
