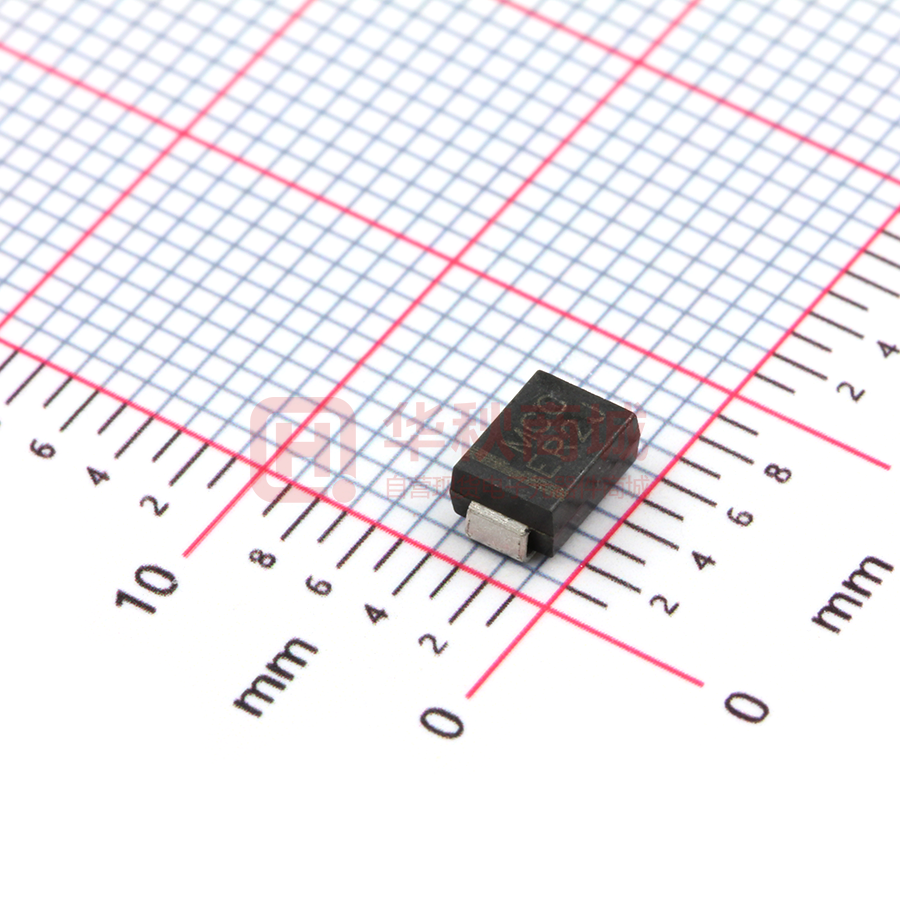

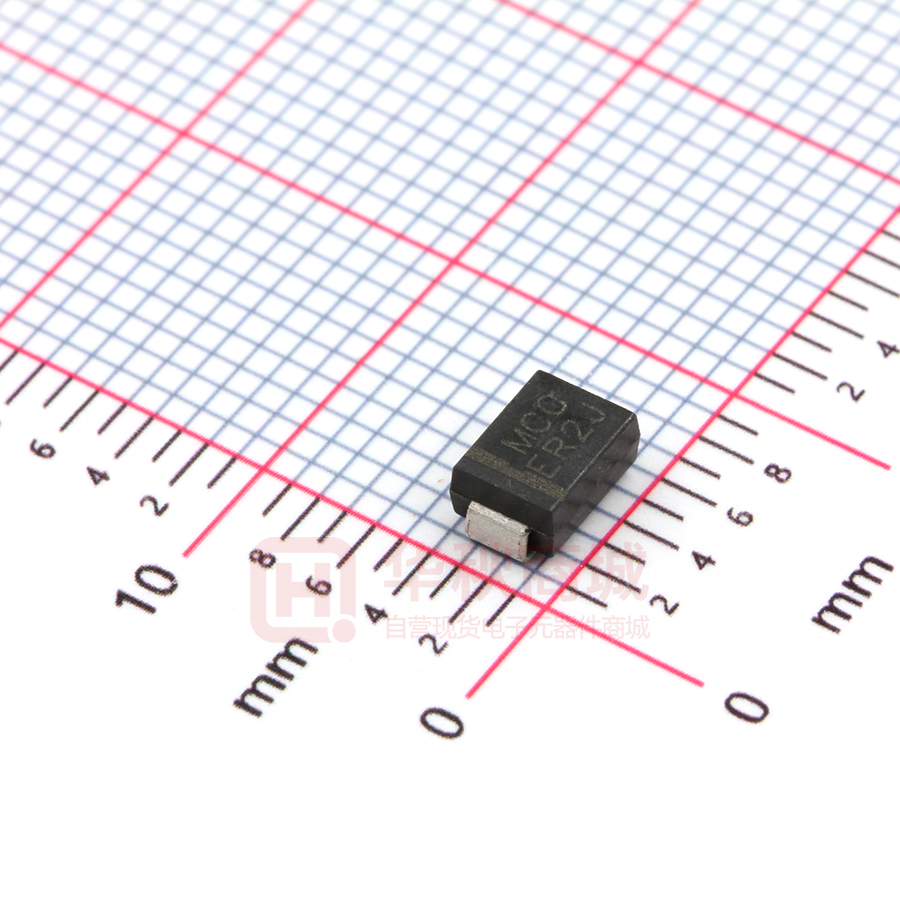

ER2J-LTP

ER2A-L THRU ER2J-L Features • Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix Designates Compliant. See Ordering Information) • Halogen Free Available Upon Request By Adding Suffix "-HF" • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 Maximum Ratings 2 Amp Super Fast Recovery Rectifier 50 to 600 Volts • Operating Junction Temperature Range: -65⁰C to +175⁰C • Storage Temperature Range: -65⁰C to +175⁰C • Maximum Thermal Resistance: 20⁰C/W Junction to Lead • Maximum Thermal Resistance: 25⁰C/W Junction to Case SMB (DO-214AA) • Maximum Thermal Resistance: 75⁰C/W Junction to Ambient MCC Part Number Device Marking ER2A-L ER2B-L ER2D-L ER2G-L ER2J-L ER2A ER2B ER2D ER2G ER2J Maximum Maximum DC Recurrent Maximum Blocking Peak Reverse RMS Voltage Voltage Voltage 50V 100V 200V 400V 600V 35V 70V 140V 280V 420V H 50V 100V 200V 400V 600V J Cathode Mark A E F Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current IF(AV) Peak Forward Surge Current IFSM 50A VF 0.95V 1.25V 1.70V IFM=2.0A 5.0μA 0.35mA TJ=25⁰C; TJ=125⁰C Maximum Instantaneous Forward Voltage ER2A-L-ER2D-L ER2G-L ER2J-L 2.0A DIM Maximum DC Reverse Current At Rated DC Blocking Voltage IR Maximum Reverse Recovery Time TRR 35ns IF=0.5A; IR=1.0A; Irr=0.25A Typical Junction Capacitance CJ 15pF Measured at 1.0MHz VR=4.0V B A B C D E F G H J DIMENSIONS INCHES MM MIN MAX MIN MAX 0.079 0.103 2.00 2.62 0.075 0.087 1.91 2.21 0.002 0.008 0.05 0.20 0.006 0.012 0.15 0.31 0.030 0.060 0.76 1.52 0.065 0.091 1.65 2.32 0.200 0.220 5.08 5.59 0.160 0.191 4.06 4.85 0.130 0.155 3.30 3.94 NOTE Suggested Solder Pad Layout Note:1. High Temperature Solder Exemption Applied, See EU Directive Annex Notes 7a. Rev.3-1-01012019 D G TL=110⁰C 8.3ms,Half Sine C 1/3 1.80mm 2.30mm 2.50mm MCCSEMI.COM ER2A-L THRU ER2J-L Curve Characteristics Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current 60 2.0 50 Peak Forward Surge Current (A) Average Forward Current (A) Fig. 1 - Forward Current Derating Curve 2.4 1.6 1.2 0.8 0.4 0.0 Resistive or Inductive Load 0 20 40 60 80 100 120 140 160 180 40 30 20 10 0 200 Lead Temperature (°C) 8.3 ms Single Half Sine-Wave 1 Fig. 3 - Typical Instantaneous Forward Characteristics Fig. 4 - Typical Reverse Leakage Characteristics 50 100 Instantaneous Reverse Leakage Current (μA) Instantaneous Forward Current (A) 100 10 Number of Cycles at 60 Hz ER2A-L-ER2D-L 10 5 ER2J-L ER2G-L 1 0.5 0.1 0.05 TJ=25°C 0.01 0.5 1.0 1.5 2.0 2.5 TJ=125°C TJ=75°C 1 TJ=25°C 0.1 0.01 20 40 60 80 100 120 Percent of Rated Peak Reverse Voltage (%) Instantaneous Forward Voltage (V) Rev.3-1-01012019 10 2/3 MCCSEMI.COM ER2A-L THRU ER2J-L Ordering Information Device Packing ER2A-LTP~ER2J-LTP Tape&Reel: 3Kpcs/Reel Note : Adding "-HF" Suffix For Halogen Free, eg. ER2A-LTP-HF~ER2J-LTP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-1-01012019 3/3 MCCSEMI.COM
