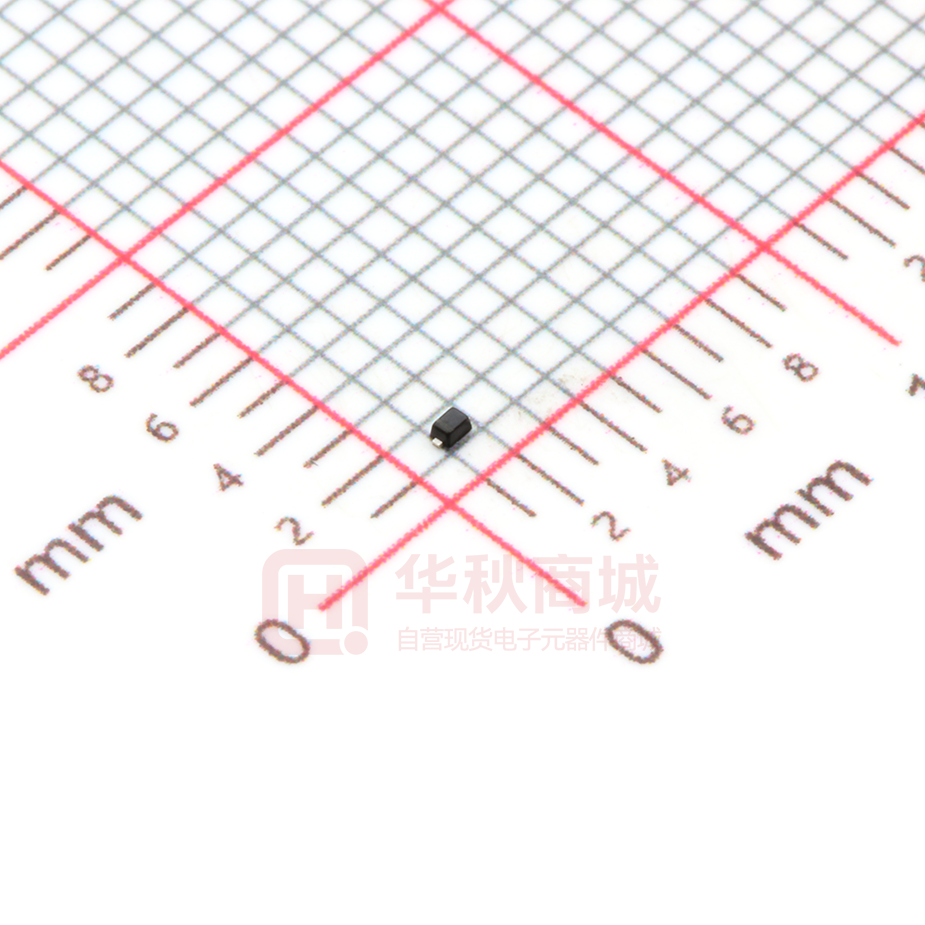

ESD12VD9-TP

MCC TM Micro Commercial Components Features • • • • • • • ESD12VD9 Micro Commercial Components 20736 Marilla Street Chatsworth Chatsworth, CA 91311 Phone: (818) 701-4933 Fax: (818) 701-4939 Halogen free available upon request by adding suffix "-HF" For sensitive ESD protection Excellent clamping capability Low leakage ESD rating of class 3(>16KV)per Human Body Mode Fast response ,response time less than 1ns. Lead Free Finish/RoHS Compliant ("P" Suffix designates ESD Protection Device RoHS Compliant. See ordering information) • • Epoxy meets UL 94 V-0 flammability rating Moisture Sensitivity Level 1 SOD-923 Maximum Ratings • A B Operating Junction &StorageTemperature: -55°C to +150°C C Parameter IEC61000-4-2(ESD) Symbol Air Contact ESD Voltage per human body mode Peak Pulse Power(8/20us) Ppp Limits f15 f8 16 100 E unit KV KV w F D Pin Configuration-Top View DIM A B C D E F DIMENSIONS INCHES MM MIN MAX MIN MAX .037 .041 0.95 1.05 .030 .033 0.75 0.85 .022 .026 0.55 0.65 .014 .017 0.36 0.43 .006 .010 0.15 0.25 .003 .007 0.07 0.17 NOTE SUGGESTED SOLDER PAD LAYOUT 0.90 mm 0.40mm 0.30mm Revision: B www.mccsemi.com 1 of 3 2013/01/01 MCC TM Micro Commercial Components ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Symbol Parameter IF IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM Working Peak Reverse Voltage IR Maximum Reverse Leakage Current @ VRWM VBR Breakdown Voltage @ IT IT Test Current C V VC VBR VRWM IR VF IT Capacitance @VR=0 and f =1MHz IPP Electrical characteristics per line@25℃( unless otherwise specified) Parameter Symbol Conditions Working Voltage VRWM Breakdown Voltage VBR It =1mA Reverse Leakage Current IR VRWM =12V Forward Voltage VF IF =10mA Clamping Voltage VC IPP=1A Junction Capacitance Cj VR=2.5V Min. Typ. Max. Units 12 V V 13.5 1 μA 0.8 tP = 8/20μS V V 18.4 f = 1MHz pF 15 Tf=8μs 100 100 80 % Of Rated Power IPP – Peak Pulse Current - % of IPP Typical Characteristics 60 tP =20μs(IPP /2) 40 20 80 60 40 20 0 0 0 5 10 15 20 25 0 30 t - Time -μs 50 75 100 125 150 TL – Lead Temperature - ℃ Fig 1.Pulse Waveform Revision: B 25 Fig 2.Power Derating Curve www.mccsemi.com 2 of 3 2013/01/01 MCC TM Micro Commercial Components Ordering Information : Device Packing Part Number-TP Tape&Reel: 8Kpcs/Reel Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Revision: B www.mccsemi.com 3 of 3 2013/01/01
