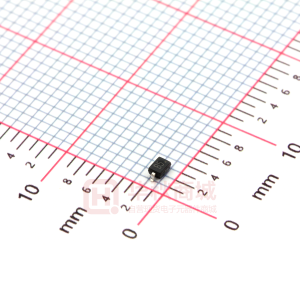

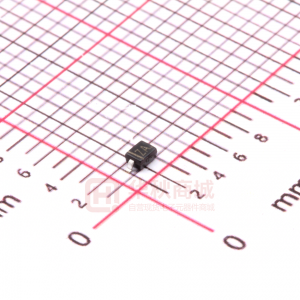

ESD5V0D3

MCC Micro Commercial Components TM Micro Commercial Components 20736 Marilla Street Chatsworth CA91311 Phone: (818) 701-4933 Fax: (818) 701-4939 ESD5V0D3 Thru ESD12VD3 Features • • • • • • • For sensitive ESD protection Excellent clamping capability Low leakage ESD rating of class 3(>16KV)per Human Body Mode For space saving application Fast response ,response time less than 1ns. Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 and MSL rating 1 5V~12Volts ESD Protection Devices SOD323 A B Maximum Ratings • • Operating Junction &StorageTemperature: -55°C to +150°C Maximum Thermal Resistance: 625°C/W Junction To Ambient Symbol Air Contact Pd Limits f15 f8 30 200 unit KV KV mw G H C E Parameter IEC61000-4-2(ESD) ESD Voltage per human body mode Power Dissipation D J DIM A B C D E G H J DIMENSIONS INCHES MM MIN MAX MIN MAX .090 .107 2.30 2.70 .063 .071 1.60 1.80 .045 .053 1.15 1.35 .031 .045 0.80 1.15 .010 .016 0.25 0.40 .004 .018 0.10 0.45 .004 .010 0.10 0.25 ----.006 ----0.15 SUGGESTED SOLDER PAD LAYOUT 0.074" NOTE 0.027” 0.022” www.mccsemi.com Revision: 2 1 of 4 2008/02/10 MCC Micro Commercial Components TM ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Symbol IPP VC VRWM IR VBR IT IF VF Ppk C Parameter Maximum Reverse Peak Pulse Current Clamping Voltage @ IPP Working Peak Reverse Voltage Maximum Reverse Leakage Current @ VRWM Breakdown Voltage @ IT Test Current Forward Current Forward Voltage @ IF Peak Power Dissipation Max. Capacitance @VR=0 and f =1MHz ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted, VF = 0.9 V Max. @ IF = 10mA for all types) VRWM Device Device Marking Max ESD5V0D3 ESD12VD3 Max Min Max mA V Max Max Max Typ (V) @ VRWM @ IT(Note 2) IR ( A) VBR (V) IT @IPP = 5 A VC IPP(A) + VC (V) @Max IPP + Ppk + (W) C (pF) ZA ZC 5.0 12 1.0 1.0 6.2 13.3 7.3 15.75 1.0 1.0 9.8 22 15 12 15.5 33 350 350 350 150 +Surge current waveform per Figure 6. 2. VBR is measured with a pulse test current IT at an ambient temperature of 25°C. www.mccsemi.com Revision: 2 2 of 4 2008/02/10 MCC Micro Commercial Components TM TYPICAL CHARACTERISTICS www.mccsemi.com Revision: 2 3 of 4 2008/02/10 MCC Micro Commercial Components TM Ordering Information Device (Part Number)-TP Packing Tape&Reel;3Kpcs/Reel ***IMPORTANT NOTICE*** Micro Commercial Components Corp . reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***APPLICATIONS DISCLAIMER*** Products offer by Micro Commercial Components Corp . are not intended for use in Medical, Aerospace or Military Applications. Revision: 2 www.mccsemi.com 4 of 4 2008/02/10
