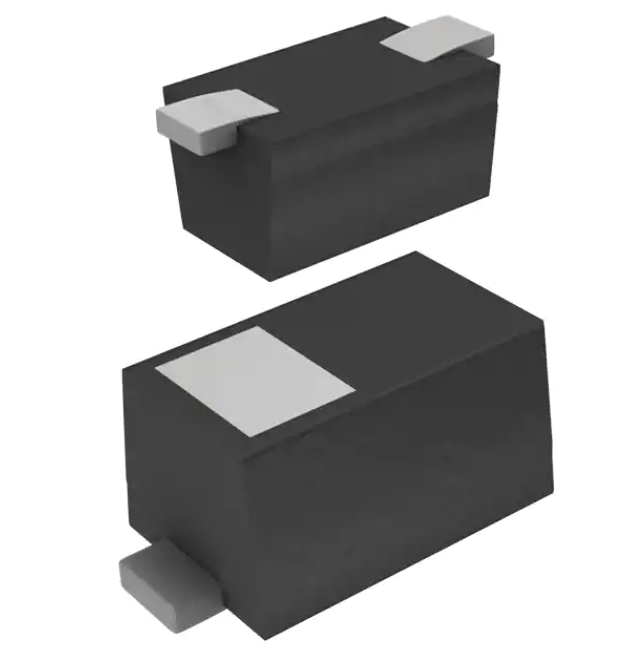

ESD5V0D5-TP

ESD3V3D5,ESD5V0D5,ESD7V0D5,ESD12VD5 Features • For Sensitive ESD Protection • Excellent Clamping Capability • Low Leakage • For Space Saving Application • Fast Response, Response Time Less than 1ns • Moisture Sensitivity Level 1 ESD Protection Device • Epoxy Meets UL 94 V-0 Flammability Rating • Halogen Free Available Upon Request By Adding Suffix "-HF" • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings • • • SOD-523 Operating Junction Temperature Range: -55°C to +150°C Storage Temperature Range: -55°C to +150°C Thermal Resistance: 625°C/W Junction to Ambient A B MCC Part Number Device Marking ESD3V3D5 ZE ESD5V0D5 ZF ESD7V0D5 ZH ESD12VD5 ZM IEC61000-4-2(ESD) JESD22-A114-B(ESD) C E Cathode Mark D G F H Air Contact ±30KV ±30KV Machine Human Body ±0.4KV ±16KV Internal Structure DIM A B C D E F G H DIMENSIONS INCHES MM MIN MAX MIN MAX 0.059 0.067 1.50 1.70 0.043 0.051 1.10 1.30 0.030 0.033 0.75 0.85 0.000 0.003 0.00 0.07 0.010 0.014 0.25 0.35 0.003 0.008 0.08 0.20 0.020 0.026 0.50 0.65 0.020 0.026 0.50 0.65 NOTE 1.1mm 0.8mm 0.6mm Rev.3-3-06012020 1/5 MCCSEMI.COM ESD3V3D5,ESD5V0D5,ESD7V0D5,ESD12VD5 ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Symbol Parameter VRWM Peak Reverse Working Voltage IR Reverse Leakage Current @ VRWM VBR Breakdown Voltage @ IT IT Test Current IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP PPP Peak Pulse Power CJ Junction Capacitance IF Forward Current VF Forward Voltage @ IF IF VC VBR VRWM IR VF IT V IPP Electrical Characteristics @ 25°C (Unless Otherwise Specified) ESD3V3D5 Parameter Symbol Reverse Working Voltage VRWM Conditions Min. Typ. Max. Units 3.3 V Reverse Breakdown Voltage VBR IT = 1mA Reverse Leakage Current IR VRWM =3.3V 0.08 μA Forward Voltage VF IF = 10mA 0.9 V Peak Pulse Current IPP tP=8/20μs 16 A Clamping Voltage VC IPP=5A, tP=8/20μs 9.4 V Clamping Voltage VC IPP=16A, tP=8/20μs 13 V Peak Pulse Power PPK tP=8/20μs 220 W Junction Capacitance CJ VR = 0V, f = 1MHz Parameter Symbol Conditions Reverse Working Voltage VRWM Reverse Breakdown Voltage VBR IT = 1mA Reverse Leakage Current IR VRWM =5V 0.05 μA Forward Voltage VF IF = 10mA 0.9 V Peak Pulse Current IPP tP=8/20μs 9.4 A Clamping Voltage VC IPP=5A, tP=8/20μs 11.6 V Clamping Voltage VC IPP=9.4A, tP=8/20μs 18.6 V Peak Pulse Power PPK tP=8/20μs 174 W Junction Capacitance CJ VR = 0V, f = 1MHz 5 V 105 pF ESD5V0D5 Rev.3-3-06012020 2/5 Min. Typ. Max. Units 5 V 6.2 V 80 pF MCCSEMI.COM ESD3V3D5,ESD5V0D5,ESD7V0D5,ESD12VD5 Electrical Characteristics @ 25°C (Unless Otherwise Specified) ESD7V0D5 Parameter Symbol Conditions Min. Reverse Working Voltage VRWM Reverse Breakdown Voltage VBR IT = 1mA 7.5 Reverse Leakage Current IR VRWM =7V 0.03 μA Forward Voltage VF IF = 10mA 0.9 V Peak Pulse Current IPP tP=8/20μs 8.8 A Clamping Voltage VC IPP=5A, tP=8/20μs 13.5 V Clamping Voltage VC IPP=8.8A, tP=8/20μs 22.7 V Peak Pulse Power PPK tP=8/20μs 200 W Junction Capacitance CJ VR = 0V, f = 1MHz Parameter Symbol Conditions Reverse Working Voltage VRWM Reverse Breakdown Voltage VBR IT = 1mA Reverse Leakage Current IR VRWM =12V 0.02 μA Forward Voltage VF IF = 10mA 0.9 V Peak Pulse Current IPP tP=8/20μs 9.6 A Clamping Voltage VC IPP=5A, tP=8/20μs 23 V Clamping Voltage VC IPP=9.6A, tP=8/20μs 25 V Peak Pulse Power PPK tP=8/20μs 240 W Junction Capacitance CJ VR = 0V, f = 1MHz Typ. Max. Units 7 V V 65 pF ESD12VD5 Rev.3-3-06012020 3/5 Min. Typ. Max. Units 12 V 14.1 V 55 pF MCCSEMI.COM ESD3V3D5,ESD5V0D5,ESD7V0D5,ESD12VD5 Curve Characteristics Fig. 2 - Pulse Derating Curve Fig. 1 - 8 X 20μs Pulse Waveform Peak value IRSM @ 8μs tr 90 120 Pulse width(tP) is defined 80 Percent of Rated Power (%) Percent of Peak Pulse Current (%) 100 as that point where the peak current decay=8μs 70 60 Half value IRSM @ 20μs 50 40 30 tP 20 100 80 60 40 20 10 0 0 20 40 60 80 0 25 50 75 100 125 150 Ambient Temperature (°C) Time (μs) Rev.3-3-06012020 0 4/5 MCCSEMI.COM ESD3V3D5,ESD5V0D5,ESD7V0D5,ESD12VD5 Ordering Information Device Packing Part Number-TP Tape&Reel: 8Kpcs/Reel Note : Adding "-HF" Suffix for Halogen Free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-3-06012020 5/5 MCCSEMI.COM
