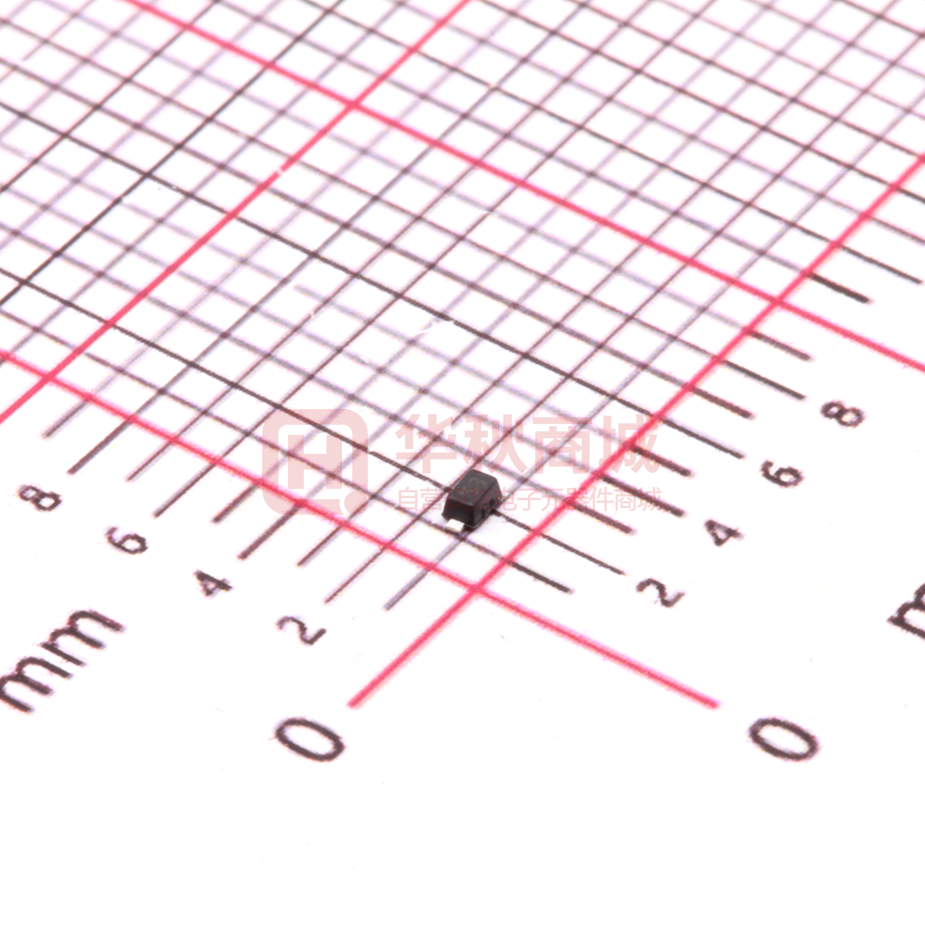

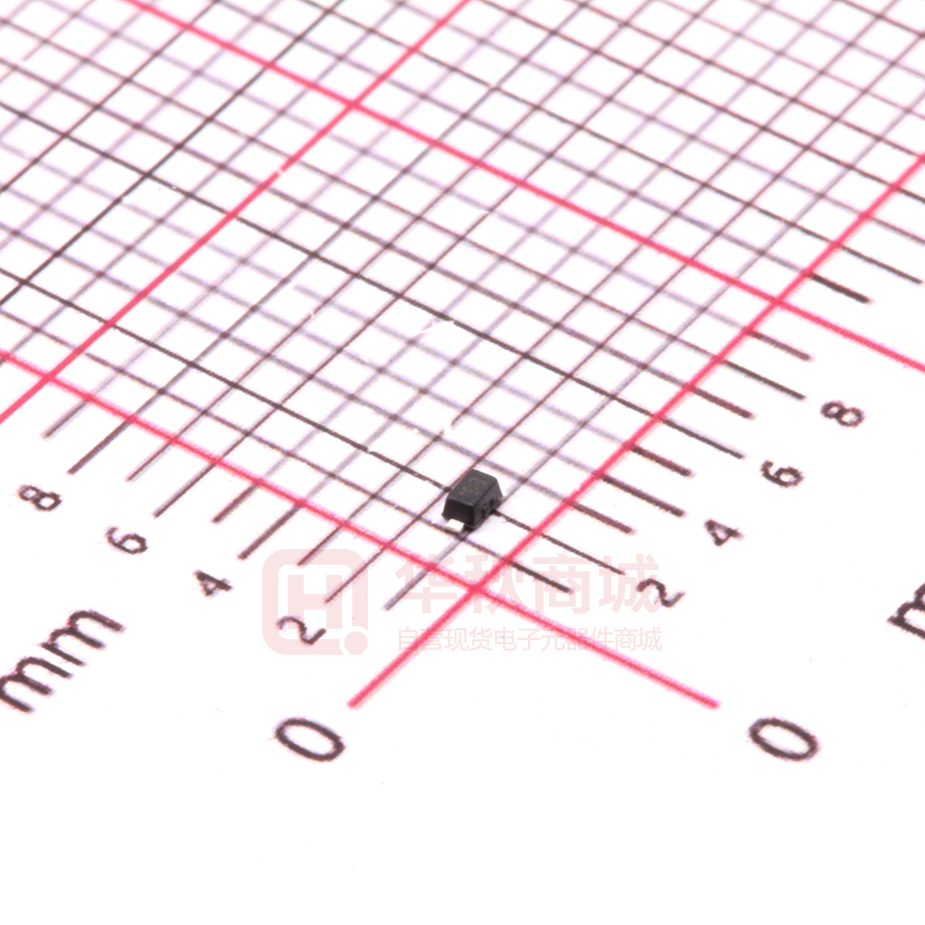

ESD5V0D5B-TP

ESD5V0D5B Features • For Sensitive ESD Protection • Excellent Clamping Capability • Low Leakage • For Space Saving Application • Fast Response, Response Time Less than 1ns • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Halogen Free Available Upon Request By Adding Suffix "-HF" • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) ESD Protection Device SOD-523 Maximum Ratings • • Operating Junction Temperature Range: -55°C to +150°C Storage Temperature Range: -55°C to +150°C A B MCC Part Number Device Marking ESD5V0D5B B5 C E G D Air Contact ±30KV ±30KV Machine Human Body ±0.4KV ±16KV Peak Pulse Current(8/20μs) IPP 12A Peak Pulse Power (8/20us) PPK 150W IEC61000-4-2(ESD) JESD22-A114-B(ESD) Internal Structure F H DIM A B C D E F G H DIMENSIONS INCHES MM MIN MAX MIN MAX 0.059 0.067 1.50 1.70 0.043 0.051 1.10 1.30 0.030 0.033 0.75 0.85 0.000 0.003 0.00 0.07 0.010 0.014 0.25 0.35 0.003 0.008 0.08 0.20 0.020 0.026 0.50 0.65 0.020 0.026 0.50 0.65 NOTE 1.1mm 0.8mm 0.6mm Rev.3-3-09202019 1/4 MCCSEMI.COM ESD5V0D5B ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Symbol Parameter IPP IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM Working Peak Reverse Voltage IR Maximum Reverse Leakage Current @ VRWM VBR Breakdown Voltage @ IT IT Test Current C VC VBR VRWM IT IR Capacitance @VR=0 and f =1MHz I IR IT V VRWM VBR VC IPP Electrical Characteristics @ 25°C (Unless Otherwise Specified) Parameter Symbol Reverse Working Voltage VRWM Reverse Breakdown Voltage VBR IT = 1mA Reverse Leakage Current IR Reverse Leakage Current Rev.3-3-09202019 Conditions Max. Units 5 V 8.8 V VRWM =5V 1 μA IR VRWM=3.6V, TA=50°C 10 nA Clamping Voltage VC IPP=5A, tP=8/20μs 9.5 V Clamping Voltage VC IPP=12A, tP=8/20μs 13 V Junction Capacitance CJ VR = 0V, f = 1MHz 2/4 Min. Typ. 5.8 27 pF MCCSEMI.COM ESD5V0D5B Curve Characteristics Fig. 3 - Pulse Derating Curve Fig. 1 - 8 X 20μs Pulse Waveform Peak value IRSM @ 8μs tr 90 120 Pulse width(tP) is defined 80 Percent of Rated Power (%) Percent of Peak Pulse Current (%) 100 as that point where the peak current decay=8μs 70 60 Half value IRSM @ 20μs 50 40 30 tP 20 100 80 60 40 20 10 0 0 20 40 60 80 0 25 50 75 100 125 150 Ambient Temperature (°C) Time (μs) Rev.3-3-09202019 0 3/4 MCCSEMI.COM ESD5V0D5B Ordering Information Device Packing Part Number-TP Tape&Reel: 8Kpcs/Reel Note : Adding "-HF" Suffix for Halogen Free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-3-09202019 4/4 MCCSEMI.COM
