ESDLC3V3D3

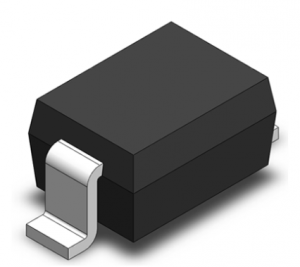

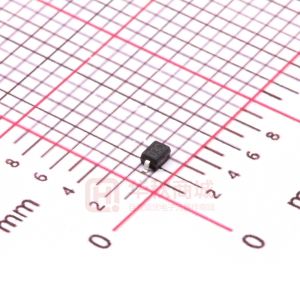

MCC Micro Commercial Components TM Micro Commercial Components 20736 Marilla Street Chatsworth Chatsworth, CA 91311 Phone: (818) 701-4933 Fax: (818) 701-4939 ESDLC3V3D3 Thru ESDLC12VD3 3.3V-12Volts ESD Protection Device SOD-323 A Features • • • • • • SOD-323 package Low clamping voltage _ _ IEC61000-4-2(ESD)+15kvV(air),+8kv(contact) 350W peak pulse power (8/20 us) Epoxy meets UL 94 V-0 flammability rating Moisture Sensitivity Level 1 Maximum Ratings Parameter Peak pulse power 8/20us Operating Temperature Storage temperature Symbol PPP Limits 350 -55~+150 -55~+150 unit W o B C E Tj T stg C C H D o G J DIM A B C D E G H J Pin Configuration-Top View DIMENSIONS INCHES MM MIN MAX MIN MAX .090 .107 2.30 2.70 .063 .071 1.60 1.80 .045 .053 1.15 1.35 .031 .045 0.80 1.15 .010 .016 0.25 0.40 .004 .018 0.10 0.45 .004 .010 0.10 0.25 ----.006 ----0.15 SUGGESTED SOLDER PAD LAYOUT 0.074" NOTE 0.027” 0.022” www.mccsemi.com Revision: B 1 of 4 2011/03/24 ESDLC3V3D3-ESDLC12VD3 ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) MCC Max Clamping Voltage Vc @ IP=1A Volts VRWM Device Volts IR @ VRWM uA Min Breakdown Voltage VBR @1mA Volts 4.0 6.0 13.3 Typ. Cj @ IPP Volts @0V,1MHZ pF ESDLC3V3D3 ESDLC5V0D3 ESDLC12VD3 3.3 5 12 20 5 5 7.0 9.8 19.0 36.0@28.0A 32.0@21.0A 28.6@11.0A 4.5 5 3 Revision: B www.mccsemi.com 2 of 3 2011/03/24 MCC Micro Commercial Components TM Ordering Information : Device Part Number-TP Packing Tape&Reel: 3Kpcs/Reel ***IMPORTANT NOTICE* ** Micro Comme rcial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Comme rcial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Co mponents Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from A uthorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC' s quality standards for handling and storage. MCC will not pro vide any warranty coverage or o ther assistance for parts bought from Unau thorized Source s. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. www.mccsemi.com Revision: B 3 of 3 2011/03/24
