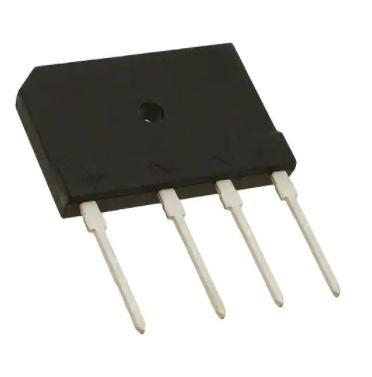

GBJ1510-BP

MCC TM Micro Commercial Components
  omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# GBJ15005 THRU GBJ1510 15 Amp Glass Passivated Bridge Rectifier 50 to 1000 Volts GBJ I A H Features Lead Free Finish/RoHS Compliant (NOTE 1)("P" Suffix designates RoHS Compliant. See ordering information) Ideal for printed circuit board Low forward voltage drop, high current capability. Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 and MSL Rating 1 Maximum Ratings Operating Temperature: -55 °C to +150°C Storage Temperature: -55°C to +150°C Typical Thermal Resistance 0.8°C/W J to C (With heatsink) Typical Thermal Resistance 3.5°C/W J to L (Without heatsink) Typical Thermal Resistance 12°C/W J to A (Without heatsink) UL Recognized File # E165989 MCC Device Maximum Maximum Maximum Catalog Marking Reccurrent RMS DC Number Peak Reverse Voltage Blocking Voltage Voltage GBJ15005 GBJ15005 50V 35V 50V GBJ1501 GBJ1501 100V 70V 100V GBJ1502 GBJ1502 200V 140V 200V GBJ1504 GBJ1504 400V 280V 400V GBJ1506 GBJ1506 600V 420V 600V GBJ1508 GBJ1508 800V 560V 800V GBJ1510 GBJ1510 1000V 700V 1000V • • • • • • D F B E G + P L C M N O O DIMENSIONS INCHES MIN 1.170 .780 .670 .019 .430 .090 .120 .130 .170 .100 .020 .080 .040 .390 .290 .150 MM MIN 29.70 19.70 17.00 4.70 10.80 2.30 3.10 3.40 4.40 2.50 0.60 2.00 0.90 9.80 7.30 3.80 K J Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current Peak Forward Surge Current Maximum Instantaneous Forward Voltage Maximum DC Reverse Current At Rated DC Blocking Voltage 2 I t Rating for fusing Typical Junction Capacitance Notes: IF(AV) IFSM VF 15 A 240A Tc = 100°C 8.3ms, half sine I FM = 7.5A TJ = 25°C 1.05V 10 µA 500uA IR TJ = 25°C TJ = 125°C DIM A B C D E F G H I J K L M N O P MAX 1.190 .800 .710 .019 .440 .110 .130 .150 .190 .110 .030 .090 .040 .400 .300 .170 MAX 30.30 20.30 18.00 4.90 11.20 2.70 3.40 3.80 4.80 2.90 0.80 2.40 1.10 10.20 7.70 4.20 NOTE It CJ 2 240A2S (t
