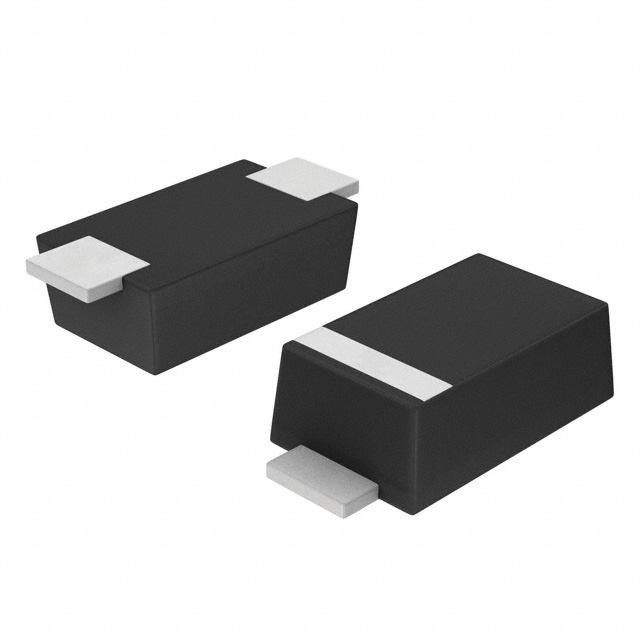

GS1GFL-TP

GS1AFL THRU GS1MFL Features • Halogen Free. “Green” Device (Note 1) • Lead Free Finish/RoHS Compliant (Note2) ("P"Suffix Designates Compliant. See Ordering Information) 1 Amp Glass Passivated Rectifier 50 to 1000 Volts • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • Extremely Low Thermal Resistance Maximum Ratings • Operating Junction Temperature Range: -55°C to +150°C • Storage Temperature Range: -55°C to +150°C • Maximum Thermal Resistance: 13°C/W Junction to Lead DO-221AC(SMA-FL) Device Marking Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage GS1AFL GS1A 50V 35V 50V GS1BFL GS1B 100V 70V 100V GS1DFL GS1D 200V 140V 200V GS1GFL GS1G 400V 280V 400V GS1JFL GS1J 600V 420V 600V GS1KFL GS1K 800V 560V 800V GS1MFL GS1M 1000V 700V 1000V MCC Part Number D E1 E 1.0A TL = 110°C Peak Forward Surge Current IFSM 30A 8.3ms, Half Sine Maximum Instantaneous Forward Voltage VF 1.0V IFM = 1.0A;TJ = 25°C * Maximum DC Reverse Current At Rated DC Blocking Voltage IR Typical Junction Capacitance CJ 10μA TJ = 25°C 50μA TJ = 125°C 15pF Measured at 1.0MHz, VR=4.0V L L DIM IF(AV) C A Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current B Cathode Mark A B C D E E1 L DIMENSIONS INCHES MM MIN MAX MIN MAX 0.035 0.049 0.90 1.25 0.049 0.065 1.25 1.65 0.004 0.016 0.10 0.40 0.089 0.116 2.25 2.95 0.173 0.220 4.40 5.60 0.126 0.181 3.20 4.60 0.020 0.059 0.50 1.50 NOTE Suggested Solder Pad Layout inch mm 0.232 (5.9) *Pulse Test: Pulse Width 300 µsec, Duty Cycle 2% Note: 0.075 (1.9) 1. Halogen free "Green” products are defined as those which contain
