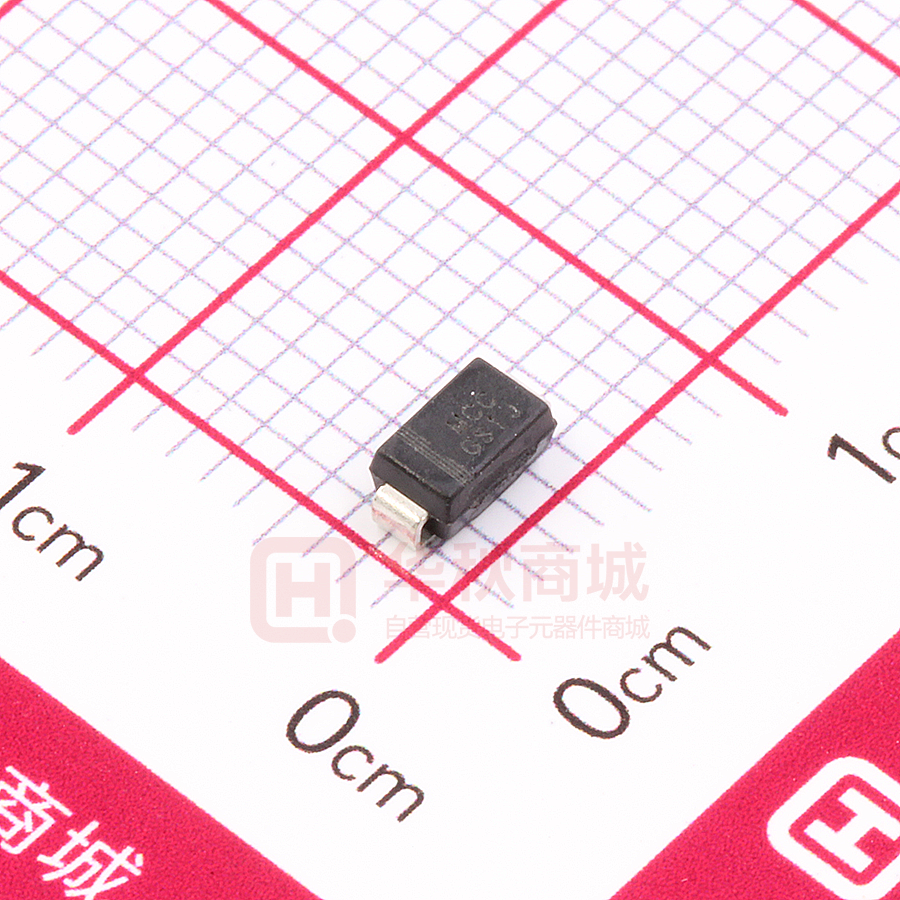

GS1J-LTP

GS1A-L THRU GS1M-L Features • Glass Passivated Junction • Extremely Low Thermal Resistance • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • Halogen Free Available Upon Request By Adding Suffix "-HF" • Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix Designates Compliant. See Ordering Information) 1 Amp Glass Passivated Rectifier 50 - 1000 Volts Maximum Ratings • Operating Junction Temperature Range: -55°C to +150°C • Storage Temperature Range: -55°C to +150°C • Maximum Thermal Resistance: 15°C/W Junction to Lead • Maximum Thermal Resistance: 85°C/W Junction to Ambient MCC Part Number Device Marking SMA (DO-214AC) Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage GS1A-L GS1A 50V 35V 50V GS1B-L GS1B 100V 70V 100V GS1D-L GS1D 200V 140V 200V GS1G-L GS1G 400V 280V 400V GS1J-L GS1J 600V 420V 600V GS1K-L GS1K 800V 560V 800V GS1M-L GS1M 1000V 700V 1000V H J Cathode Mark C E DIM IF(AV) 1.0A TL = 110°C Peak Forward Surge Current IFSM 30A 8.3ms, Half Sine Maximum Instantaneous Forward Voltage VF 1.0V IFM = 1.0A;TJ = 25°C * Maximum DC Reverse Current At Rated DC Blocking Voltage IR Typical Junction Capacitance 5μA TJ = 25°C 50μA TJ = 125°C CJ 15pF Measured at 1.0MHz, VR=4.0V Typical Reverse Recovery Time trr 2.0µs IF=0.5A, IR=1.0A,Irr=0.25A Rating For Fusing I2t 3.735A2s Avalanche Energy EAS 20mJ B G Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current D F A A B C D E F G H J DIMENSIONS INCHES MM MIN MAX MIN MAX 0.075 0.096 1.90 2.44 0.050 0.064 1.27 1.63 0.002 0.008 0.051 0.203 --- 0.020 --0.51 0.030 0.060 0.76 1.52 0.065 0.091 1.65 2.32 0.189 0.220 4.80 5.59 0.157 0.187 4.00 4.75 0.090 0.115 2.25 2.92 NOTE SUGGESTED SOLDER PAD LAYOUT 2.27mm 2.16mm LH:40mH *Pulse Test: Pulse Width 300 µsec, Duty Cycle 2% Note: 1. High Temperature Solder Exemption Applied, See EU Directive Annex 7a. Rev.3-2-06112019 1/3 1.78mm MCCSEMI.COM GS1A-L THRU GS1M-L Curve Characteristics Fig. 1 - Typical Instantaneous Forward Characteristics Fig. 2 - Typical Reverse Leakage Characteristics 100 Instantaneous Reverse Leakage Current (μA) Instantaneous Forward Current (A) 10 1 0.1 TJ=25°C 0.8 1.0 1.2 TJ=125°C 1 80 100 120 Fig. 3 - Forward Current Derating Curve Fig. 4 - Maximum Non-Repetitive Peak Forward Surge Current 30 1.0 0.8 0.6 0.4 0.0 40 60 25 20 15 10 5 Resistive or Inductive Load 80 100 120 140 8.3 ms Single Half Sine-Wave 0 160 1 Lead Temperature (°C) Rev.3-2-06112019 60 Percent of Rated Peak Reverse Voltage (%) 1.2 20 40 Instantaneous Forward Voltage (V) 35 0 TJ=25°C 0.1 1.4 0.2 TJ=75°C 0.01 20 1.4 Peak Forward Surge Current (A) Average Forward Current (A) 0.01 0.6 10 10 100 Number of Cycles at 60 Hz 2/3 MCCSEMI.COM GS1A-L THRU GS1M-L Ordering Information Device Packing GS1A-LTP~GS1M-LTP Tape&Reel: 7.5Kpcs/Reel Note : Adding "-HF" Suffix For Halogen Free, eg. GS1A-LTP-HF~GS1M-LTP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-2-06112019 3/3 MCCSEMI.COM
