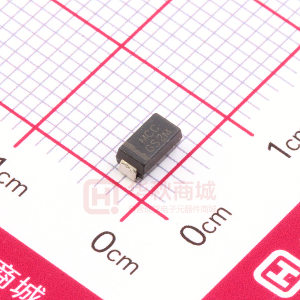

GS2M

MCC Features l l l l
  omponents 21201 Itasca Street Chatsworth    !"# $ %    !"# GS2A THRU GS2M 2.0 Amp Silicon Rectifier 50 to 1000 Volts Extremely Low Thermal Resistance For Surface Mount Application Higher Temp Soldering: 250 C for 10 Seconds At Terminals Available on Tape and Reel o Maximum Ratings l l Operating Temperature: -55 C to +150 C Storage Temperature: -55 C to +150 C Maximum Reccurrent Peak Reverse Voltage 50V 100V 200V 400V 600V 800V 1000V o o o o DO-214AC (SMAJ) (High Profile) Maximum DC Blocking Voltage 50V 100V 200V 400V 600V 800V 1000V F G E H Cathode Band MCC Catalog Number GS2A GS2B GS2D GS2G GS2J GS2K GS2M Device Marking GS2A GS2B GS2D GS2G GS2J GS2K GS2M Maximum RMS Voltage 35V 70V 140V 280V 420V 560V 700V J A C D B Electrical Characteristics @ 25oC Unless Otherwise Specified A verage Forward Current Peak Forward Surge Current Maximum Instantaneous Forward Voltage Maximum DC Reverse Current At Rated DC Blocking Voltage Typical Junction Capacitance IF(AV) IFSM 2.0A 50A T J =75 C 8.3ms half sine IFM =2.0A T A=25 C o o DIMENSIONS INCHES MIN .078 .067 .002 --.035 .065 .205 .160 .100 MM MIN 1.98 1.70 .05 --.89 1.65 5.21 4.06 2.57 VF 1.10V DIM A B C D E F G H J MAX .116 .089 .008 .02 .055 .096 .224 .180 .112 MAX 2.95 2.25 .20 .51 1.40 2.45 5.69 4.57 2.84 NOTE IR 1 0.0uA T J =25 C o SUGGESTED SOLDER PAD LAYOUT 0.090” Cj 2 0pF Measured at 1.0MHz, V R =4.0V 0.085” Pulse test: Pulse width 300 usec, duty cycle 2%. 0.070” www.mccsemi.com MCC GS2A thru GS2M Figure 1 Typical Forward Characteristics 20 10 6 4 2 Amps 1 .6 .4 .2 .1 .06 .04 .02 .01 .4 .6 .8 Volts Instantaneous Forward Current - Amperesversus Instantaneous Forward Voltage - Volts 1.0 1.2 1.4 Amps 25°C 2.4 2.2 2.0 1.8 1.6 1.4 1.2 1.0 .8 .6 .4 Single Phase, Half Wave .2 60Hz Resistive 0 0 25 50 75 °C Average Forward Rectified Current - Amperes ersus v Ambient Temperature - °C 100 125 150 Figure 2 Forward Derating Curve Figure 3 Junction Capacitance 100 60 40 20 pF 10 6 4 2 1 .1 .2 .4 1 Volts 2 4 10 20 40 100 200 400 1000 Junction Capacitance - pFversus Reverse Junction Potential (Applied V + 0.7 Volts) - Volts www.mccsemi.com MCC GS2A thru GS2M Figure 4 Peak Forward Surge Current 84 70 56 42 Amps 28 14 0 1 4 6 8 10 Cycles Peak Forward Surge Current - Amperesversus Number Of Cycles At 60Hz - Cycles 20 40 60 80 100 Round Lead Process Figure 5 New SMA Assembly 2 www.mccsemi.com
