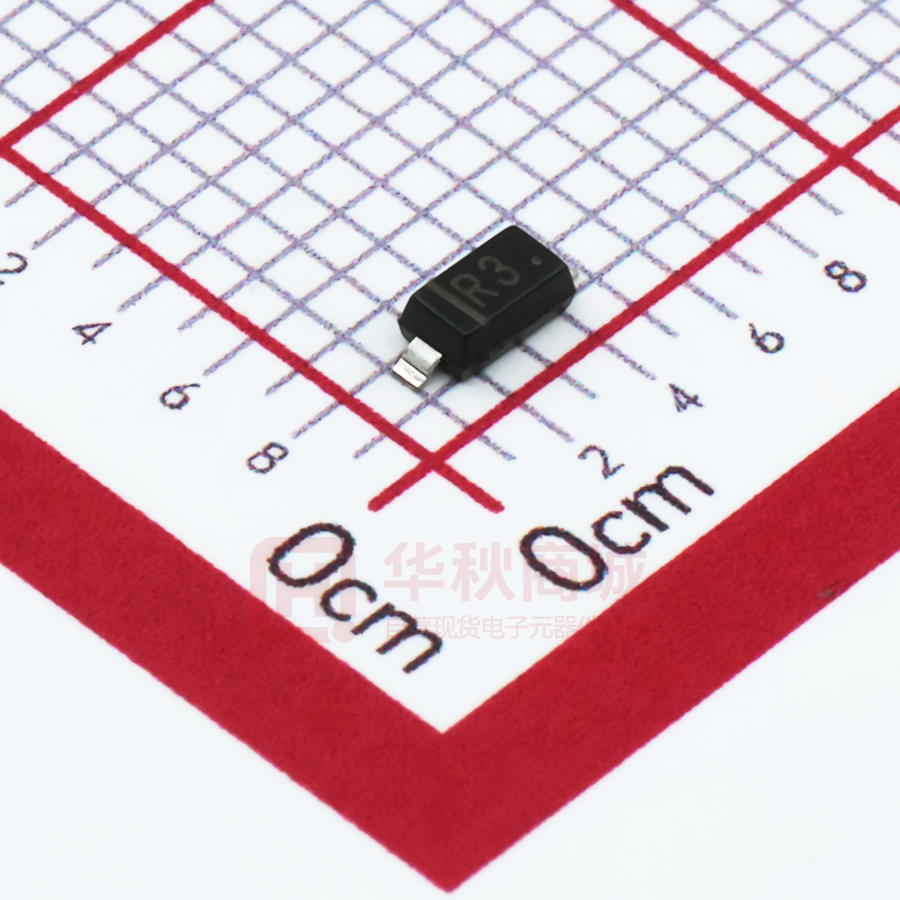

MBR0530-TP

MBR0520 THRU MBR0580 Features • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) • For Surface Mount Application • Low Forward Voltage And Extremely Low Thermal Resistance • Halogen Free. “Green” Device (Note 1) • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 0.5 Amp Schottky Rectifier 20 to 80 Volts Maximum Ratings • Operating Junction Temperature Range: -55°C to +125°C • Storage Temperature Range: -55°C to +150°C • Maximum Thermal Resistance(Note 2): 244°C/W Junction to Ambient Maximum Maximum DC Recurrent Maximum Blocking Peak Reverse RMS Voltage Voltage Voltage MCC Part Number Device Marking MBR0520 R2 20V 14V 20V MBR0530 R3 30V 21V 30V MBR0540 R4 40V 28V 40V MBR0560 R6 60V 42V 60V MBR0580 R8 80V 56V 80V SOD-123 A B C Cathode Mark H Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current IF(AV) 0.5A TA = 50°C Peak Forward Surge Current IFSM 5.5A 8.3ms Half Sine Maximum Instantaneous Forward Voltage MBR0520 MBR0530 MBR0540 MBR0560 MBR0580 0.45V 0.55V 0.55V 0.70V 0.80V Maximum DC Reverse Current at Rated DC Blocking Voltage IR Typical Junction Capacitance CJ 30pF Power Dissipation PD 410mW 0.1mA IFM=0.5A; TJ = 25°C TJ = 25°C J A B C D E G H J DIMENSIONS INCHES MM MIN MAX MIN MAX 0.140 0.152 3.55 3.85 0.100 0.112 2.55 2.85 0.055 0.071 1.40 1.80 ---- 0.053 ---1.35 0.018 0.026 0.45 0.65 0.006 ---0.15 ------- 0.010 ---0.25 ---- 0.006 ---0.15 NOTE Suggested Solder Pad Layout 2.36mm Measured at 1.0MHz , VR=4.0V 1.22mm Note: 1. Halogen free "Green” products are defined as those which contain
