MBR0520 THRU MBR0580
Features
• Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS
Compliant. See Ordering Information)
• For Surface Mount Application
• Low Forward Voltage And Extremely Low Thermal Resistance
• Halogen Free Available Upon Request By Adding Suffix "-HF"
• Epoxy Meets UL 94 V-0 Flammability Rating
• Moisture Sensitivity Level 1
0.5 Amp
Schottky Rectifier
20 to 80 Volts
Maximum Ratings
• Operating Junction Temperature Range: -55°C to +125°C
• Storage Temperature Range: -55°C to +150°C
• Maximum Thermal Resistance: 244°C/W Junction to Ambient
SOD-123
Maximum
Maximum DC
Recurrent
Maximum
Blocking
Peak Reverse RMS Voltage
Voltage
Voltage
MCC
Part Number
Device
Marking
MBR0520
R2
20V
14V
20V
MBR0530
R3
30V
21V
30V

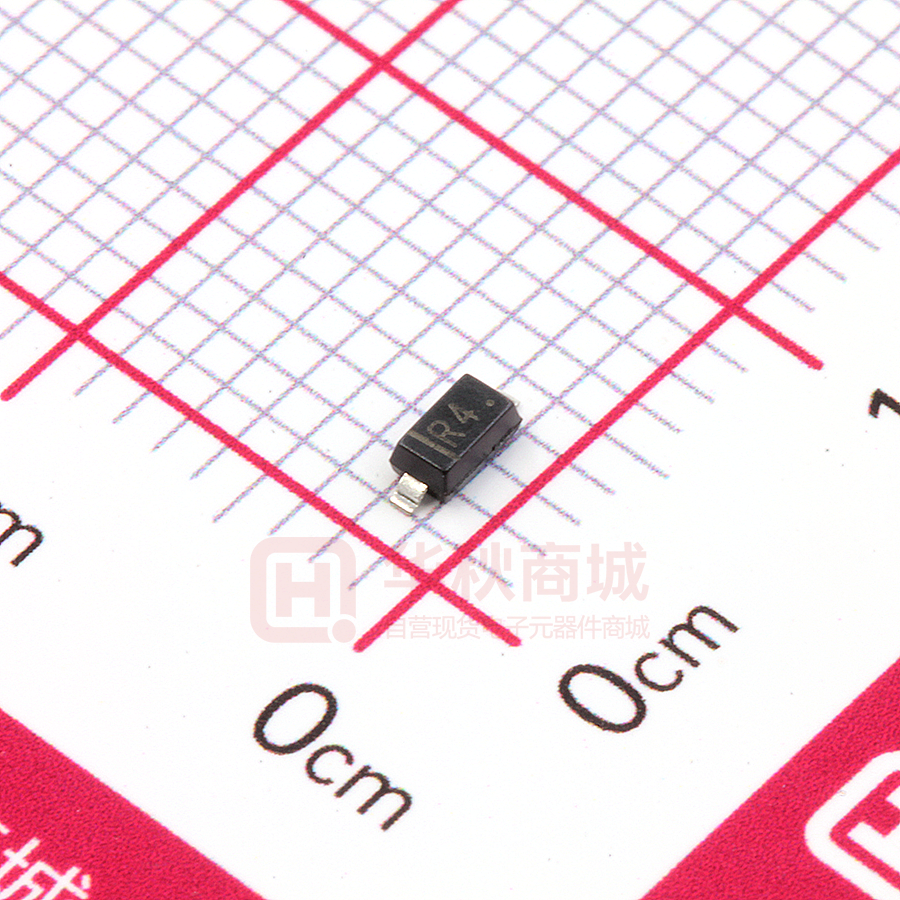

MBR0540
R4
40V
28V
40V
MBR0560
R6
60V
42V
60V
MBR0580
R8
80V
56V
80V
A
B
C
Cathode Mark
H
Electrical Characteristics @ 25°C Unless Otherwise Specified
Average Forward
Current
IF(AV)
0.5A
TA = 50°C
Peak Forward Surge
Current
IFSM
5.5A
8.3ms Half Sine
Maximum
Instantaneous
Forward Voltage
MBR0520
MBR0530
MBR0540
MBR0560
MBR0580
VF
0.45V
0.55V
0.55V
0.70V
0.80V
IFM=0.5A;
TJ = 25°C
D
J
G
DIM
A
B
C
D
E
G
H
J
DIMENSIONS
INCHES
MM
MIN MAX MIN MAX
0.140 0.152 3.55 3.85
0.100 0.112 2.55 2.85
0.055 0.071 1.40 1.80
---- 0.053
---1.35
0.018 0.026 0.45 0.65
0.006
---0.15
------- 0.010
---0.25
---- 0.006
---0.15
NOTE
Suggested Solder Pad Layout
Maximum DC
Reverse Current at
Rated DC Blocking
Voltage
IR
0.1mA
TJ = 25°C
Typical Junction
Capacitance
CJ
30pF
Measured at
1.0MHz , VR=4.0V
Power Dissipation
PD
410mW
Rev.3-1-01012019
E
2.36mm
1.22mm
0.91mm
1/3
MCCSEMI.COM
MBR0520 THRU MBR0580
Curve Characteristics
Fig. 2 - Reverse Characteristics
Fig. 1 - Forward Characteristics
1000
2000
1000
Reverse Current (μA)
T=
a 2
5°C
°C
00
a =1
T
Forward Current (mA)
Ta=100°C
100
100
10
Ta=25°C
1
MBR0530
10
0.0
0.2
0.4
0.6
MBR0530
0.1
0.8
0
5
Forward Voltage (V)
20
25
30
Fig. 4 - Power Derating Curve
Fig. 3 - Capacitance Characteristics
500
Ta=25°C
f=1MHz
100
400
Power Dissipation (mW)
Capacitance Between Terminals (pF)
15
Reverse Voltage (V)
120
80
60
40
300
200
100
20
MBR0530
MBR0530
0
10
0
4
8
12
16
0
20
Rev.3-1-01012019
0
25
50
75
100
125
Ambient Temperature (°C)
Reverse Voltage (V)
2/3
MCCSEMI.COM
MBR0520 THRU MBR0580
Ordering Information
Device
Packing
Part Number-TP
Tape&Reel: 3Kpcs/Reel
Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-TP-HF
***IMPORTANT NOTICE***
Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to
make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components
Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it
convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all
risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are
represented on our website, harmless against all damages.
***LIFE SUPPORT***
MCC's products are not authorized for use as critical components in life support devices or systems without the express
written approval of Micro Commercial Components Corporation.
***CUSTOMER AWARENESS***
Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking
strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages
customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on
our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine
parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty
coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global
problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized
distributors.
Rev.3-1-01012019
3/3
MCCSEMI.COM
