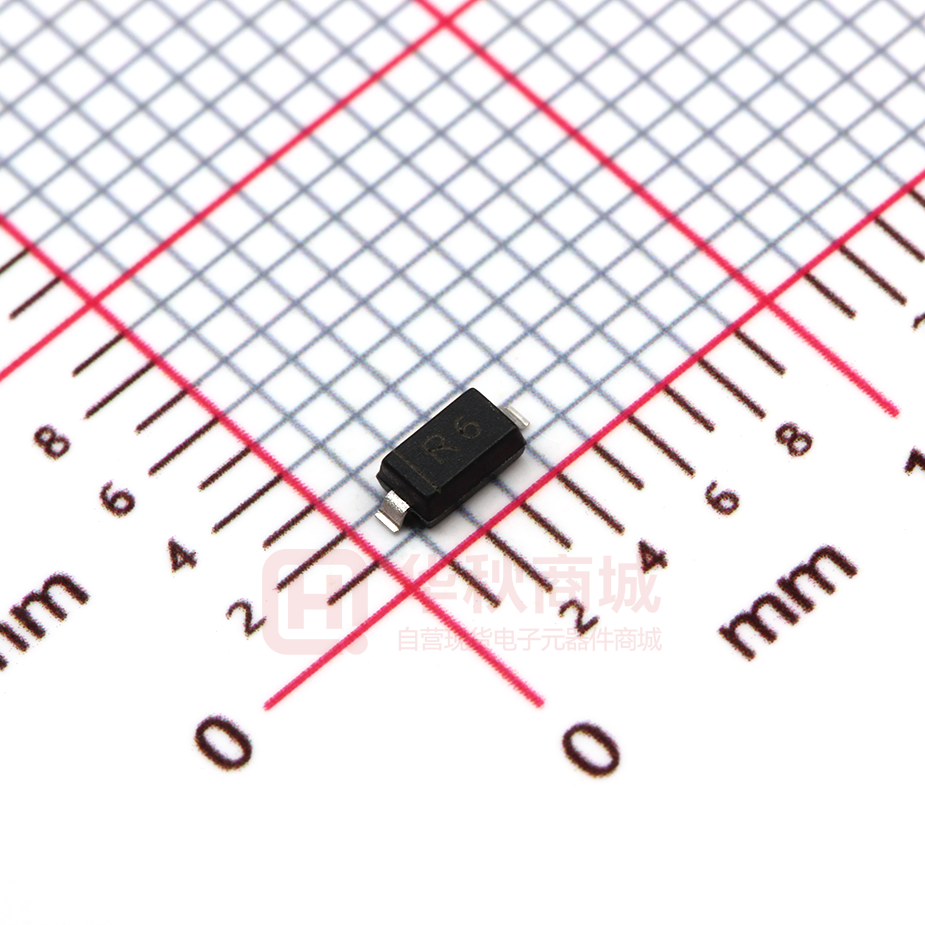

MBR0560-TP

MCC MBR0520 THRU MBR0580 R Micro Commercial Components
  omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# Features 0.5 Amp Schottky Rectifier 20 to 80 Volts
Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information)




For Surface Mount Application Low Forward Voltage and Extremely Low Thermal Resistance Halogen free available upon request by adding suffix "-HF" Epoxy meets UL 94 V-0 flammability rating Moisture Sensitivity Level 1 Maximum Ratings o SOD123 o
Operating Temperature: -55 C to +125 C
Storage Temperature: -55 C to +150 C
Maximum Thermal Resistance: 244 C/W Junction to Ambient o o A MCC Catalog Number Device Marking MBR0520 MBR0530 MBR0540 MBR0560 MBR0580 R2 R3 R4 R6 R8 Maximum Recurrent Peak Reverse Voltage 20V 30V 40V 60V 80V Maximum RMS Voltage Maximum DC Blocking Voltage 14V 21V 28V 42V 56V 20V 30V 40V 60V 80V Cathode Band B o C E H D J G Electrical Characteristics @ 25oC Unless Otherwise Specified Average Forward Current Peak Forward Surge Current IF(AV) 0.5A T A=50 oC DIM IFSM 5.5A 8.3ms half sine 0.45V 0.55V 0.55V 0.70V 0.80V IFM=0.5A A B C D E G H J Maximum Instantaneous Forward Voltage MBR0520 MBR0530 MBR0540 MBR0560 MBR0580 Maximum DC Reverse Current At Rated DC Blocking Voltage Typical Junction Capacitance VF T A=25 oC DIMENSIONS INCHES MM MIN MAX MIN MAX .140 .152 3.55 3.85 .100 .112 2.55 2.85 .055 .071 1.40 1.80 ----.053 ----1.35 .012 .031 0.30 .78 .006 ----0.15 --------.01 ----.25 ----.006 ----.15 NOTE SUGGESTED SOLDER PAD LAYOUT 0.093" IR CJ o 0.2mA T J=25 C 30pF Measured at 1.0MHz, VR =4.0 V 0.048” 0.036” Power dissipation Revision: D PD 410mW www.mccsemi.com 1 of 3 2016/09/27 MCC R Micro Commercial Components MBR0520 thru MBR0580 Figure 2 Peak Forward Surge Current Figure 1 Forward Derating Curve 12 1.2 10 1.0 8 .8 6 Amps .6 4 Amps 2 .4 0 .2 1 50 0 75 100 20 40 60 80 100 Cycles Single Phase, Half Wave 60Hz Resistive or Inductive Load 0 8 10 4 2 125 150 Peak Forward Surge Current - Amperesversus Number Of Cycles At 60Hz - Cycles 175 °C Average Forward Rectified Current - Amperes versus Ambient Temperature - °C Figure 3 Typical Forward Characteristics Figure 4 Typical Forward Characteristics MBR0530~MBR0540 iF, INSTANTANEOUS FORWARD CURRENT (AMPS) MBR0520 1 1 TJ = 100°C 0.1 75°C 25°C 0 °C −25 °C TJ =125°C 75°C 0.01 0.1 0.2 0.3 0.4 vF , INSTANTANEOUS FORWARD VOLTAGE (VOLTS) 0.5 0.01 0.15 0.2 40 °C 0.25 0.3 0.35 0.4 0.45 0.5 0.55 vF, INSTANTANEOUS VOLTAGE (VOLTS) Figure 6 Typical Forward Characteristics Figure 5 Typical Forward Characteristics MBR0580 MBR0560 1 1 TJ =125°C 75°C 25°C TJ =125°C 40 °C 0.01 0.40 75°C 25°C 40 °C 0.1 0.1 0.45 0.50 0.55 0.60 0.65 0.70 0.75 0.80 0.01 0.50 0.55 0.60 0.65 0.70 0.75 0.80 0.85 0.90 vF, INSTANTANEOUS VOLTAGE (VOLTS) vF, INSTANTANEOUS VOLTAGE (VOLTS) Revision: D 25°C 0.1 www.mccsemi.com 2 of 3 2016/09/27 MCC R Micro Commercial Components Ordering Information : Device Packing Part Number-TP Tape&Reel: 3Kpcs/Reel Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. www.mccsemi.com Revision: D 3 of 3 2016/09/27
