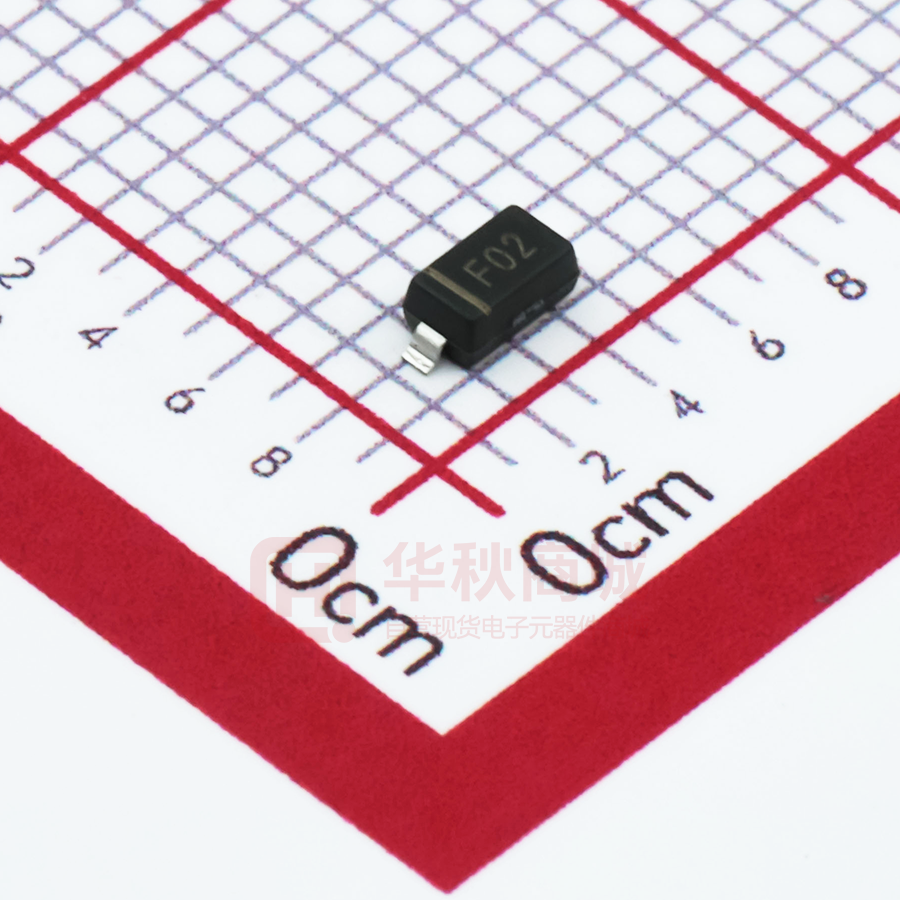

MBRX120LF-TP

MBRX120LF Features Low Forward Volatge Drop Schottky Barrier Diodes • Halogen Free Available Upon Request By Adding Suffix "-HF" • High Surge Capability • Super Low Forward Voltage Drop • Low-Profile-Package • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 Maximum Ratings • Operating Junction Temperature Range: -65°C to +125°C • Storage Temperature Range: -65°C to +125°C • Typical Thermal Resistance(Note1):60°C/W Junction to Ambient • Typical Thermal Resistance(Note2):180°C/W Junction to Ambient MCC Part Number Device Marking MBRX120LF F02 SOD-123 Maximum Maximum DC Recurrent Maximum Blocking Peak Reverse RMS Voltage Voltage Voltage 20V 14V A B 20V C Cathode Mark Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current IF(AV) 1A Surge Forward Current IFSM 12A Power Dissipation PD 1.67W Note1 Power Dissipation PD 556mW Note2 0.2V(Typ) IF=0.1A 0.3V(Typ) IF=0.7A 0.32V(Typ) IF=1A Forward Voltage VF H at 8.3ms IR 0.26mA(Typ) 1mA(Max) Typical Junction Capacitance CT 75pF(Typ) D J G DIM A B C D E G H J 0.36V(Max) Leakage Current E VR=5V VR=20V DIMENSIONS INCHES MM MIN MAX MIN MAX 0.140 0.152 3.55 3.85 0.100 0.112 2.55 2.85 0.055 0.071 1.40 1.80 ---- 0.053 ---1.35 0.018 0.026 0.45 0.65 0.006 ---0.15 ------- 0.010 ---0.25 ---- 0.006 ---0.15 NOTE Suggested Solder Pad Layout VR=10V, f=1.0MHz 2.36mm Notes: 1. Part mounted on 50.8mm X 50.8mm GETEK board with 25.4mm X 25.4mm copper pad.TA = 25oC. 2. Part mounted on FR-4 board with 1.8mm X 2.5mm copper pads. TA = 25oC. 1.22mm 0.91mm Rev.3-1-01012019 1/3 MCCSEMI.COM MBRX120LF Curve Characteristics Fig. 1 - Typical Instantaneous Forward Characteristics Fig. 2 - Typical Reverse Leakage Characteristics 10000 Instantaneous Reverse Leakage Current (μA) Instantaneous Forward Current (A) 5 TJ=125°C 2 1 0.5 0.2 TJ=75°C 0.1 0.05 TJ=25°C 0.02 0.01 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 TJ=25°C 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Instantaneous Forward Voltage (V) Rev.3-1-01012019 100 10 20 0.8 TJ=75°C 1000 2/3 MCCSEMI.COM MBRX120LF Ordering Information Device Packing Part Number-TP Tape&Reel: 3Kpcs/Reel Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-1-01012019 3/3 MCCSEMI.COM
