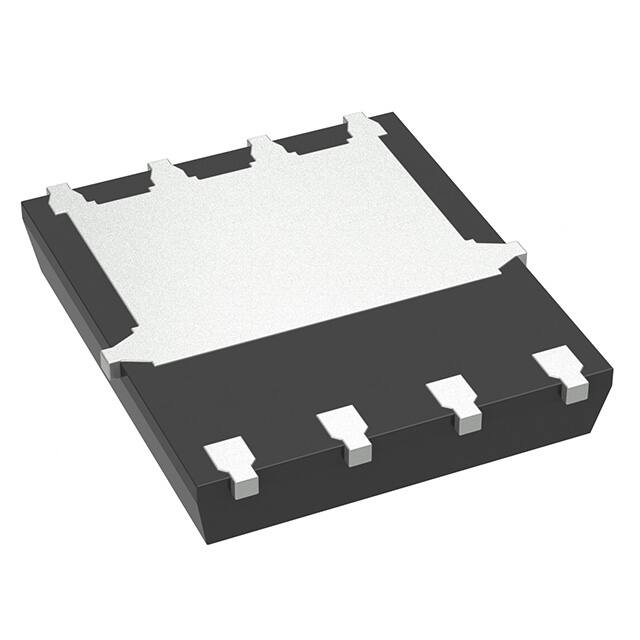

MCAC85N06Y-TP

MCAC85N06Y Features • • • Split Gate Trench MOSFET technology Excellent Package for Heat Dissipation High Density Cell Desihn for Low RDS(on) • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • • Halogen Free. “Green” Device (Note 1) Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) N-CHANNEL MOSFET Maximum Ratings • Operating Junction Temperature Range : -55°C to +150°C • Storage Temperature Range: -55°C to +150°C • Thermal Resistance: 55°C/W Junction to Ambient • Thermal Resistance: 1.2°C/W Junction to Case Parameter DFN5060 (Note 2) Symbol Rating Unit Drain-Source Voltage VDS 60 V Gate-Source Volltage VGS ±20 V ID Drain Current TC=25°C Continuous Drain Current(Note 3) (Note 4) Single Pulse Avalanche Energy (Note 5) Total Power Dissipation A 85 A 54 A IDM 390 A EAS 270 mJ ID TC=100°C Pulsed Drain Current 130 PD (Note 6) 105 A H D B • PIN 1 G C J N E F K M L W Note: 1. Halogen free "Green” products are defined as those which contain
