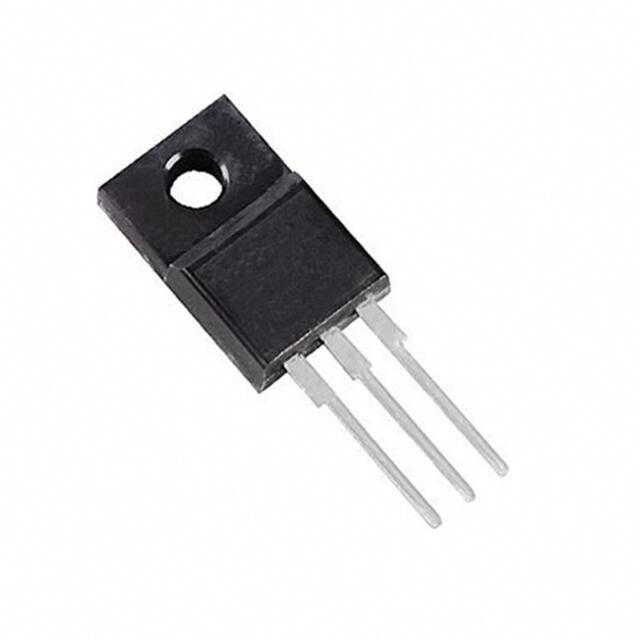

MCPF07N65-BP

MCPF05N80 Features • • • Fast Switching Improved dv/dt Capability Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • • Halogen Free Available Upon Request By Adding Suffix "-HF" Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) N-CHANNEL MOSFET Maximum Ratings • Operating Junction Temperature Range : -55°C to +150°C • Storage Temperature Range: -55°C to +150°C • Thermal Resistance: 62.5°C/W Junction to Ambient • Thermal Resistance: 5°C/W Junction to Case(Note 1) Parameter TO-220F Symbol Rating Unit Drain-Source Voltage VDS 800 V Gate-Source Volltage VGS ±30 V Continuous Drain Current ID 5 A Pulsed Drain Current (Note1) IDM 20 A EAS 151 mJ IAS 5.5 A EAR 90 mJ PD 25 W Single Pulse Avalanche Energy Avalanche Current (Note 2) (Note1) Repetitive Avalanche Energy (Note1) Total Power Dissipation A M B N C D 1 2 3 F P J Q E H Note: 1.Repetitive Rating: Pulse Width Limited by Maximum Junction G Temperature. 2.IAS=3A, VDD=50V, RG=25 Ω, Starting TJ=25°C. Internal Structure DIM A B C D E F G H J M N P Q D G S Rev.3-3-12012020 1. Gate 2. Drain 3. Source 1/4 DIMENSIONS INCHES MM MIN MAX MIN MAX 0.392 0.421 9.96 10.70 0.138 3.50 0.106 2.70 0.567 0.642 14.40 16.30 0.520 13.20 --0.177 --4.50 0.100 2.54 0.020 0.035 0.50 0.90 0.043 0.053 1.10 1.35 0.169 0.201 4.30 5.10 --0.140 --3.56 0.083 0.126 2.10 3.20 0.020 0.032 0.50 0.80 NOTE Φ TYP. TYP. TYP. MCCSEMI.COM MCPF05N80 Electrical Characteristics @ 25°C (Unless Otherwise Specified) Parameter Symbol Test Conditions Min Typ Max Unit Static Characteristics V(BR)DSS VGS=0V, ID=250µA Gate-Source Leakage Current IGSS VDS=0V, VGS =±30V ±100 IDSS VDS=800V, VGS=0V 1 Zero Gate Voltage Drain Current Drain-Source Breakdown Voltage 800 V µA VDS=640V, VGS=0V, TJ=25°C Gate-Threshold Voltage VGS(th) VDS=VGS, ID=250µA Drain-Source On-Resistance(Note 3) RDS(on) VGS=10V, ID=2.5A nA 100 3 2.3 4 V 2.8 Ω Dynamic Characteristics(Note 4) Input Capacitance Ciss Output Capacitance Coss Reverse Transfer Capacitance Crss 14 Total Gate Charge Qg 27 Gate-Source Charge Qgs Gate-Drain Charge Qgd 13 Turn-On Delay Time td(on) 37 Turn-On Rise Time tr Turn-Off Delay Time td(off) 144 tf 41 Turn-Off Fall Time 667 VDS=25V,VGS=0V,f=1MHz VDD=640V,VGS=10V,ID=5A VDD =400V, ID=5A,RG=25Ω pF 77 nC 3.5 15 ns Drain-Source Body Diode Characteristics Continuous Body Diode Current IS Pulsed Diode Forward Current ISM Body Diode Voltage VSD Reverse Recovery Time trr Reverse Recovery Charge Qrr 5 TC=25°C A 20 ISD=2.5A, VGS=0V VGS=0V, IS=5A,diF/dt=100A/μs 1.4 V 1099 ns 3.2 µC Note 3. Pulse Test : Pulse Width≤300μs, Duty Cycle ≤ 1%. 4. Guaranteed by Design, Not Subject to Production Testing. Rev.3-3-12012020 2/4 MCCSEMI.COM MCPF05N80 Curve Characteristics Fig. 2 - Transfer Characteristics Fig. 1 - Typical Output Characteristics 5 6 20V 10V 5 4 4 Drain Current (A) Drain Current (A) 8V 7V 3 6V TJ=25°C 3 TJ=150°C 2 2 VGS=5V 1 1 0 0 0 4 8 12 16 0 20 2 4 Drain To Source Voltage (V) 8 10 Fig. 4 - Gate Charge Characteristics Fig. 3 - Capacitance Characteristics 10 10000 Gate-Source Voltage (V) Ciss 1000 Capacitance (pF) 6 Gate To Source Voltage (V) Coss 100 Crss 8 6 4 10 2 0 1 0 10 20 30 0 40 5 10 15 20 25 30 Drain To Source Voltage (V) Total Gate Charge(nC) Fig. 5 - IS—VSD Fig. 6 - Normalized On Resistance Characteristics 3.0 10 VGS=10V ID=5A Source Current (A) 1 Normalized On Resistance 2.5 TJ=150°C TJ=25°C 0.1 2.0 1.5 1.0 0.01 0.5 1E-3 0.2 0.4 0.6 0.8 1.0 0.0 -50 1.2 Source To Drain Voltage (V) Rev.3-3-12012020 -25 0 25 50 75 100 125 150 Junction Temperature(°C) 3/4 MCCSEMI.COM MCPF05N80 Ordering Information Device Packing Part Number-BP Bulk:50pcs/Tube,1Kpcs/Box,5Kpcs/Carton Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-BP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. Micro Commercial Components Corp. products are sold subject to the general terms and conditions of commercial sale, as published at https://www.mccsemi.com/Home/TermsAndConditions. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-3-12012020 4/4 MCCSEMI.COM
