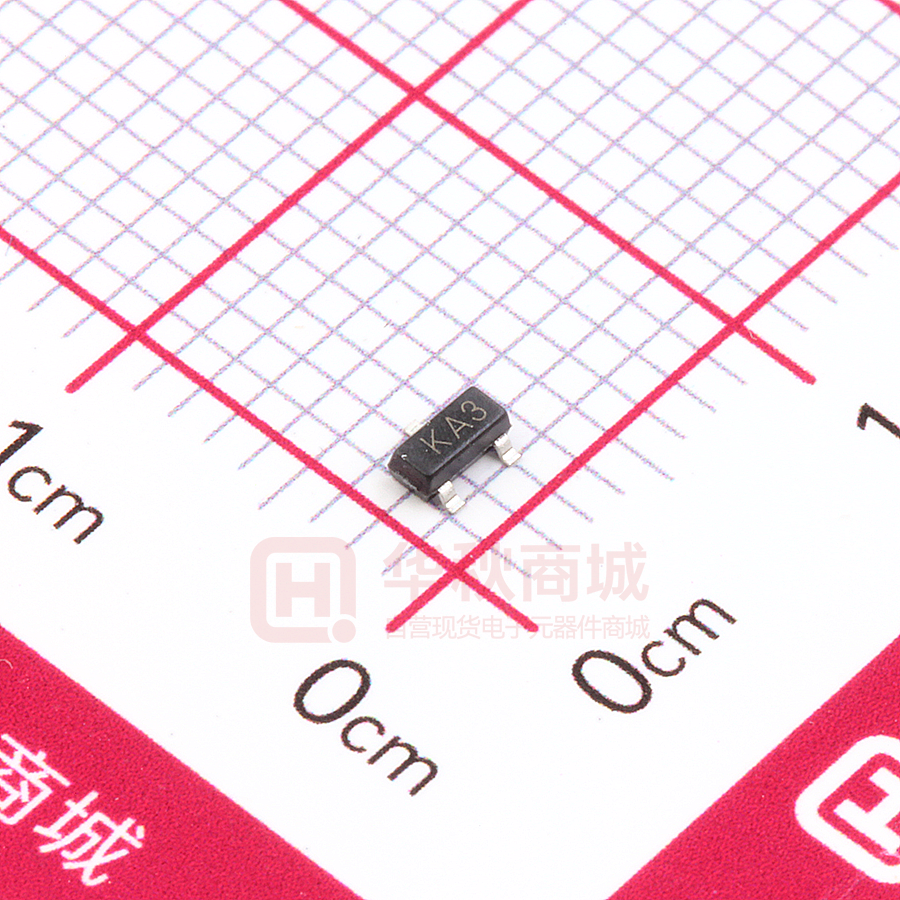

MMBD4448-TP

MMBD4448 Features • • • • • • • Fast Switching Speed Surface Mount Package Ideally Suited for Automatic Insertion For General Purpose Switching Applications Halogen Free. "Green" Device (Note 1) Moisture Sensitivity Level 1 Epoxy Meets UL 94 V-0 Flammability Rating Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) 350mW Surface Mount Switching Diode Maximum Ratings • • • Operating Junction Temperature Range: -55°C to +150°C Storage Temperature Range: -55°C to +150°C Thermal Resistance(Note 2):357°C/W Junction to Ambient MCC Part Number Device Marking Peak Repetitive Reverse Voltage VRRM MMBD4448 KA3 75V Non-Repetitive Peak Reverse Voltage VRM 100V VRWM 75V IFM 500mA Io 250mA Non-Repetitive Peak Forward Surge Current IFSM 2A 4A Power Dissipation Pd Working Peak Reverse Voltage Forward Continuous Current Average Rectified Output Current SOT-23 A RMS Reverse Voltage VR(RMS) DC Blocking Voltage VR 53V 75V D C F E H G 350mW B J L K DIMENSIONS INCHES MM DIM MIN MAX MIN MAX A 0.110 0.120 2.80 3.04 B 0.083 0.104 2.10 2.64 C 0.047 0.055 1.20 1.40 0.034 0.041 0.85 1.05 D E 0.067 0.083 1.70 2.10 F 0.018 0.024 0.45 0.60 G 0.0004 0.006 0.01 0.15 H 0.035 0.043 0.90 1.10 J 0.003 0.007 0.08 0.18 K 0.014 0.020 0.35 0.51 L 0.007 0.020 0.20 0.50 Note 2 @ t
