MMS8050
Features
•
Halogen Free Available Upon Request By Adding Suffix "-HF"
•
Moisture Sensitivity Level 1
•
Epoxy Meets UL 94 V-0 Flammability Rating
•
Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS
Compliant. See Ordering Information)
Maximum Ratings @ 25°C Unless Otherwise Specified
•
Operating Junction Temperature Range: -55℃ to +150℃
•
Storage Temperature Range: -55℃ to +150℃
•
Thermal Resistance: 417℃/W Junction to Ambient
Parameter
Symbol
Rating
Unit
Collector-Base Voltage
VCBO
40
V
Collector-Emitter Voltage
VCEO
25
V
Emitter-Base Voltage
VEBO
5
V
Continuous Collector Current
IC
500
mA
Power Dissipation
PD
300
mW
NPN Silicon
Plastic-Encapsulate
Transistor
SOT-23
A
D
3
1
F

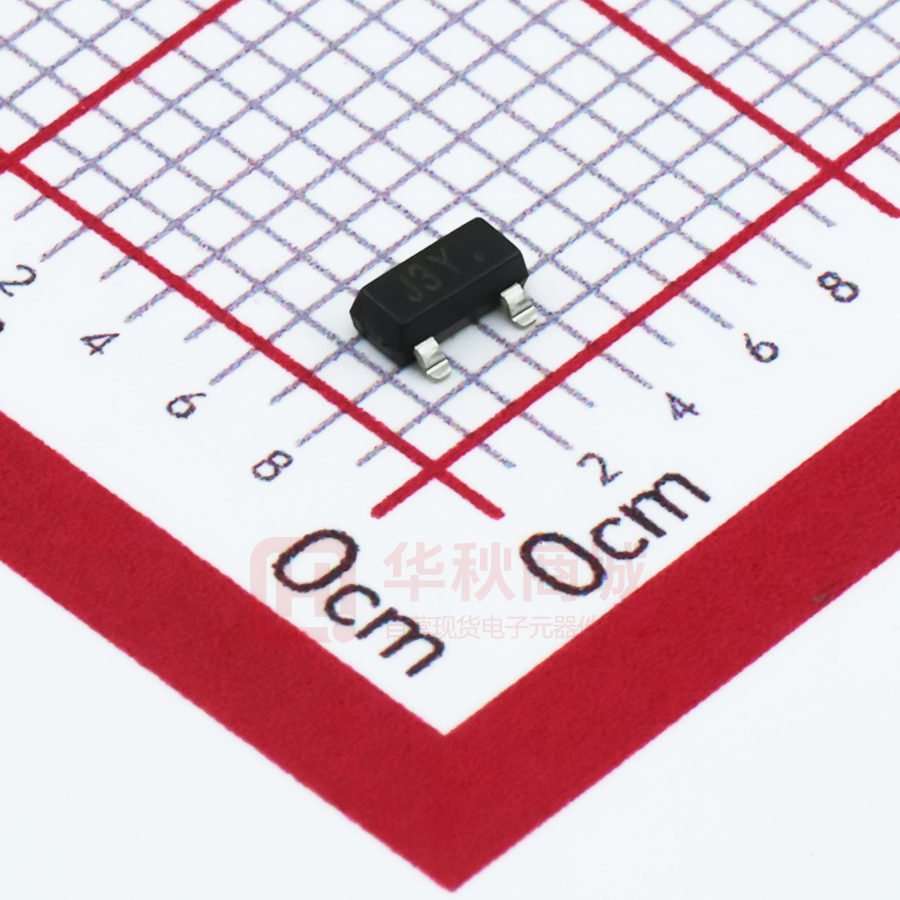

Marking: J3Y
2
C
B
E
H
G
J
L
K
Internal Structure
DIMENSIONS
INCHES
MM
DIM
MIN MAX MIN MAX
A
0.110 0.120 2.80 3.04
B
0.083 0.104 2.10 2.64
C
0.047 0.055 1.20 1.40
0.034 0.041 0.85 1.05
D
E
0.067 0.083 1.70 2.10
F
0.018 0.024 0.45 0.60
G 0.0004 0.006 0.01 0.15
H
0.035 0.043 0.90 1.10
J
0.003 0.007 0.08 0.18
K
0.012 0.020 0.30 0.51
L
0.007 0.020 0.20 0.50
3
1
2
1.BASE
2.EMITTER
3.COLLECTOR
NOTE
Suggested Solder Pad Layout
0.031
0.800
0.035
0.900
0.079
2.000
0.037
0.950
Rev.3-1-01012019
1/4
inches
mm
0.037
0.950
MCCSEMI.COM
MMS8050
Electrical Characteristics @ TA=25°C Unless Otherwise Specified
Parameter
Symbol
Min
Typ
Max
Units
Conditions
Collector-Base Breakdown Voltage
V(BR)CBO
40
V
IC=100µA, IE=0
Collector-Emitter Breakdown Voltage
V(BR)CEO
25
V
IC=1mA, IB=0
Emitter-Base Breakdown Voltage
V(BR)EBO
5
V
IE=100µA, IC=0
Collector-Base Cutoff Current
ICBO
0.1
µA
VCB=40V, IE=0
Collector Cutoff Current
ICEO
0.1
µA
VCE=20V, IB=0
Emitter-Base Cutoff Current
IEBO
0.1
µA
VEB=5V, IC=0
DC Current Gain
hFE(1)
120
hFE(2)
50
VCE=1V, IC=50mA
350
VCE=1V, IC=500mA
Collector-Emitter Saturation Voltage
VCE(sat)
0.6
V
IC=500mA, IB=50mA
Base-Emitter Saturation Voltage
VBE(sat)
1.2
V
IC=500mA, IB=50mA
Base-Emitter Voltage
VBE
1.4
V
IE=100mA
Transition Frequency
fT
150
MHz
VCE=6V, IC=20mA, f=30MHz
Classification of hFE(1)
Rev.3-1-01012019
Rank
L
H
Range
120-200
200-350
2/4
MCCSEMI.COM
MMS8050
Curve Characteristics
Fig. 1 - Static Characteristics
0.30
Common Emitter
VCE= 1V
TA=100°C
0.9mA
0.8mA
0.20
DC Current Gain
Collector Current (A)
Common Emitter
TA=25°C
1.0mA
0.25
Fig. 2 - DC Current Gain Characteristics
1000
0.7mA
0.6mA
0.15
100
0.5mA
0.4mA
0.10
TA=25°C
0.3mA
0.2mA
0.05
IB=0.1mA
0.00
0
1
2
3
4
5
6
10
7
1
10
Collector-Emitter Voltage (V)
Fig. 4 - Base-Emitter Saturation Voltage Characteristics
Fig. 3 - Collector-Emitter Saturation Voltage Characteristics
1200
Base-Emitter Saturation Voltage (mV)
Collector-Emitter Saturation Voltage (mV)
1000
1000
100
TA=100°C
TA=25°C
10
800
TA=25°C
TA=100°C
600
400
β=10
β=10
300
1
1
10
1
1000 1500
100
10
1000 1500
100
Collector Current (mA)
Collector Current (mA)
Fig. 6 - Collector Power Derating Curve
Fig. 5 - Base-Emitter Voltage Characteristics
0.4
Collector Power Dissipation (W)
1500
1000
Collcetor Current (mA)
1000 1500
100
Collector Current (mA)
TA=100°C
100
TA=25°C
10
0.3
0.2
0.1
Common Emitter
VCE=1V
1
0.0
0.2
0.4
0.6
0.8
1.0
0.0
1.2
Rev.3-1-01012019
0
25
50
75
100
125
150
Ambient Temperature (°C)
Base-Emitter Voltage (V)
3/4
MCCSEMI.COM
MMS8050
Ordering Information
Device
Packing
Part Number-TP
Tape&Reel: 3Kpcs/Reel
Note : Adding "-HF" Suffix for Halogen Free, eg. Part Number-TP-HF
***IMPORTANT NOTICE***
Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to
make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components
Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it
convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all
risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are
represented on our website, harmless against all damages.
***LIFE SUPPORT***
MCC's products are not authorized for use as critical components in life support devices or systems without the express
written approval of Micro Commercial Components Corporation.
***CUSTOMER AWARENESS***
Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking
strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages
customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on
our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine
parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty
coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global
problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized
distributors.
Rev.3-1-01012019
4/4
MCCSEMI.COM
