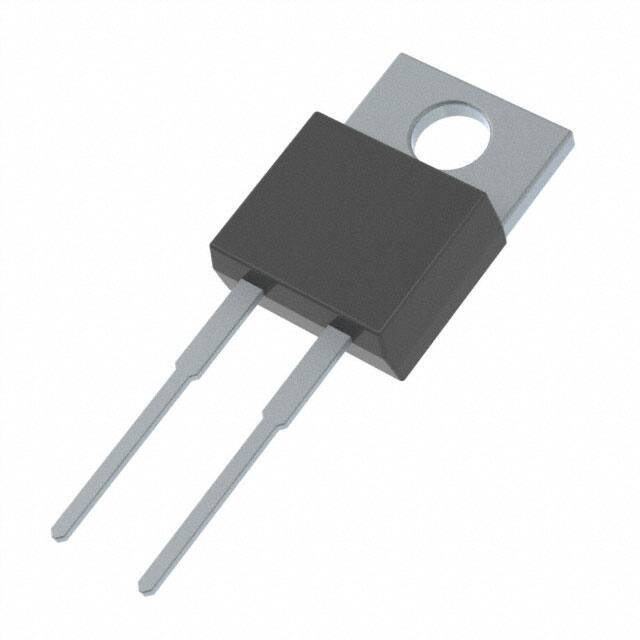

MURS1560A-BP

MURS1560A Features • Halogen Free Available Upon Request By Adding Suffix "-HF" • Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix Designates Compliant. See Ordering Information) • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • Low Switching Losses and High Efficiency • Low Reverse Leakage • Planar Structure Die and Soft Recovery Characteristics 15 Amp FRED Rectifiers 600 Volts Maximum Ratings • Operating Junction Temperature Range: -55⁰C to +150⁰C • Storage Temperature Range: -55⁰C to +150⁰C • Maximum Thermal Resistance: 2°C/W Junction to Case MCC Part Number Device Marking TO-220AC Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage 600V 420V 600V MURS1560A MURS1560A B L K M C D Electrical Characteristics @ 25°C Unless Otherwise Specified Average Rectified Forward Current IF(AV) Peak Forward Surge Current IFSM TC = 105°C 15A A 1 Maximum Instantaneous Forward Voltage VF Maximum Reverse Current At Rated DC Blocking Voltage IR Typical Junction Capacitance CJ 160A 8.3ms,Half Sine 1.32V(Typ) 1.6V(Max) 1.4V(Max) 5μA IF=15A;TJ=25⁰C IF=15A;TJ=25⁰C IF=15A;TJ=125⁰C F G I TJ=25⁰C; TJ=125⁰C 50μA 100pF H Reverse Recovery Time trr 40ns(Max.) IF=0.5A; IR=1.0A; IRR=0.25A 95ns(Typ.) 145ns(Typ.) TJ=25⁰C TJ=125⁰C TJ=25⁰C TJ=125⁰C TJ=25⁰C TJ=125⁰C Peak recovery current IRRM 5.0A(Typ.) 9.5A(Typ.) Reverse recovery charge Qrr 245nC(Typ.) 710nC(Typ.) J N Measured at 1.0MHz, VR=4.0V Dynamic Recovery Characteristics @ 25°C Unless Otherwise Specified 31ns(Typ.) 2 IF = 15 A diF/dt = 200 A/μs VR = 400 V Note :1. High Temperature Solder Exemption Applied, See EU Directive Annex 7a. DIM A B C D F G H I J K L M N DIMENSIONS INCHES MM MIN MAX MIN MAX 0.560 0.625 14.22 15.88 0.380 0.420 9.65 10.67 0.100 0.135 2.54 3.43 0.230 0.270 5.84 6.86 ----- 0.250 ----- 6.35 0.500 0.580 12.70 14.73 0.190 0.210 4.83 5.33 0.020 0.045 0.51 1.14 0.012 0.025 0.30 0.64 0.139 0.161 3.53 4.09 0.140 0.190 3.56 4.83 0.045 0.055 1.14 1.40 0.080 0.115 2.03 2.92 NOTE Φ Internal Structure PIN 1 PIN 2 Rev.3-3-01282021 CASE 1/3 MCCSEMI.COM MURS1560A Curve Characteristics Fig. 1 - Forward Current Derating Curve Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current 120 Peak Forward Surge Current (A) Average Forward Current (A) 20 15 10 5 160 120 80 40 Resistive or Inductive Load 0 0 25 50 8.3 ms Single Half Sine-Wave 75 100 125 0 150 10 1 Case Temperature (°C) Fig. 4 - Typical Reverse Leakage Characteristics Fig. 3 - Typical Instantaneous Forward Characteristics 100 Instantaneous Reverse Leakage Current (μA) Instantaneous Forward Current (A) 20 TJ=25°C =100°C =125°C =150°C 10 TJ=150°C 10 TJ=125°C 1 TJ=100°C 0.1 0.01 1 0.4 0.6 0.8 1.0 1.2 1.4 TJ=25°C 0.001 20 1.6 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Instantaneous Forward Voltage (V) Fig. 5 - Capacitance Characteristics Fig. 6 - Reverse Recovery Waveform and Definitions 300 (3) TJ=25°C Capacitance Between Terminals (pF) 100 Number of Cycles at 60 Hz trr IF f=1MHz ta tb 0 Qrr 200 (2) (1) diF/dt IRRM (4) 0.5 IRRM di(rec)M/dt (5) 0.75 IRRM 100 (1) diF/dt - rate of change of current through zero crossing (2) IRRM - peak reverse recovery current 0 0 10 20 (3) trr - reverse recovery time measured from zero crossing point of negative going IF to point where a line passing through 0.75 IRRM and 0.50 IRRM extrapolated to zero current. 30 Reverse Voltage (V) Rev.3-3-01282021 2/3 (4) Qrr - area under curve defined by trr and IRRM Qrr = trr x IRRM 2 (5) di(rec)M/dt - peak rate of change of current during tb portion of trr MCCSEMI.COM MURS1560A Ordering Information Device Packing Part Number-BP Bulk:50pcs/Tube,1Kpcs/Box,5Kpcs/Carton Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-BP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. Micro Commercial Components Corp. products are sold subject to the general terms and conditions of commercial sale, as published at https://www.mccsemi.com/Home/TermsAndConditions. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-3-01282021 3/3 MCCSEMI.COM
