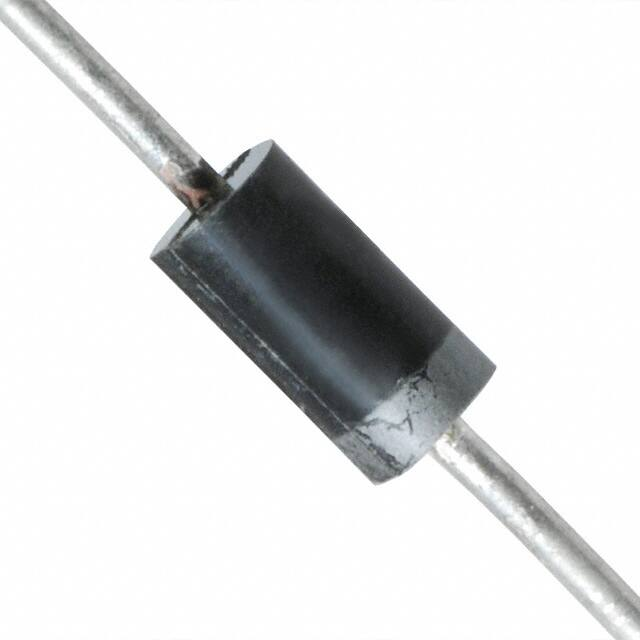

R4000GPS-TP

R4000GPS Features • • • • • • • High Voltage Low Leakage Low Forward Voltage Drop Glass Passivated Junction Epoxy Meets UL 94 V-0 Flammability Rating Moisture Sensitivity Level 1 Halogen Free Available Upon Request By Adding Suffix "-HF" 0.2 Amp High Voltage Silicon Rectifier 4000 Volts • Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix Designates Compliant. See Ordering Information) Maximum Ratings DO-41 • Operating Junction Temperature Range: -55⁰C to +150⁰C • Storage Temperature Range: -55⁰C to +150⁰C Maximum Maximum DC Recurrent Maximum Blocking Peak Reverse RMS Voltage Voltage Voltage MCC Part Number Device Marking R4000GPS R4000GPS 4000V 2800V D 4000V A Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current IF(AV) 200mA Peak Forward Surge Current IFSM 15A 8.3ms,Half Sine Maximum Instantaneous Forward Voltage VF 3.5V IFM=0.5A; TJ=25⁰C Maximum DC Reverse Current At Rated DC Blocking Voltage IR 5.0μA TJ=25⁰C Reverse Recovery Time trr >1200nS TA=60⁰C B D C IF=0.5A;IR=1.0A; Irr=0.25A Notes: 1.High Temperature Solder Exemption Applied, See EU Directive Annex 7a. DIM A B C D Rev.3-2-12012020 Cathode Mark 1/3 DIMENSIONS INCHES MM MIN MAX MIN MAX 0.160 0.205 4.10 5.20 0.080 0.107 2.00 2.70 0.028 0.035 0.71 0.90 1.000 ----- 25.40 ----- NOTE Φ Φ MCCSEMI.COM R4000GPS Curve Characteristics Fig. 1 - Forward Current Derating Curve Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current 20 0.20 Peak Forward Surge Current (A) Average Forward Current (A) 0.25 0.15 0.10 0.05 15 10 5 Resistive or Inductive Load 0.00 0 25 50 75 8.3 ms Single Half Sine-Wave 100 125 0 150 1 10 Ambient Temperature (°C) Fig. 4 - Typical Reverse Leakage Characteristics Fig. 3 - Typical Instantaneous Forward Characteristics 100 Instantaneous Reverse Leakage Current (μA) Instantaneous Forward Current (A) 1 0.1 TJ=25°C 0.01 1.4 1.6 1.8 2.0 2.2 TJ=125°C 10 TJ=75°C 1 0.1 20 TJ=25°C 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Instantaneous Forward Voltage (V) Rev.3-2-12012020 100 Number of Cycles at 60 Hz 2/3 MCCSEMI.COM R4000GPS Ordering Information Device Packing (Part Number)-TP Tape&Reel: 5Kpcs/Reel (Part Number)-AP Ammo Packing: 5Kpcs/Ammo Box (Part Number)-BP Bulk:1Kpcs/Box,50Kpcs/Carton Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. Micro Commercial Components Corp. products are sold subject to the general terms and conditions of commercial sale, as published at https://www.mccsemi.com/Home/TermsAndConditions. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-2-12012020 3/3 MCCSEMI.COM
