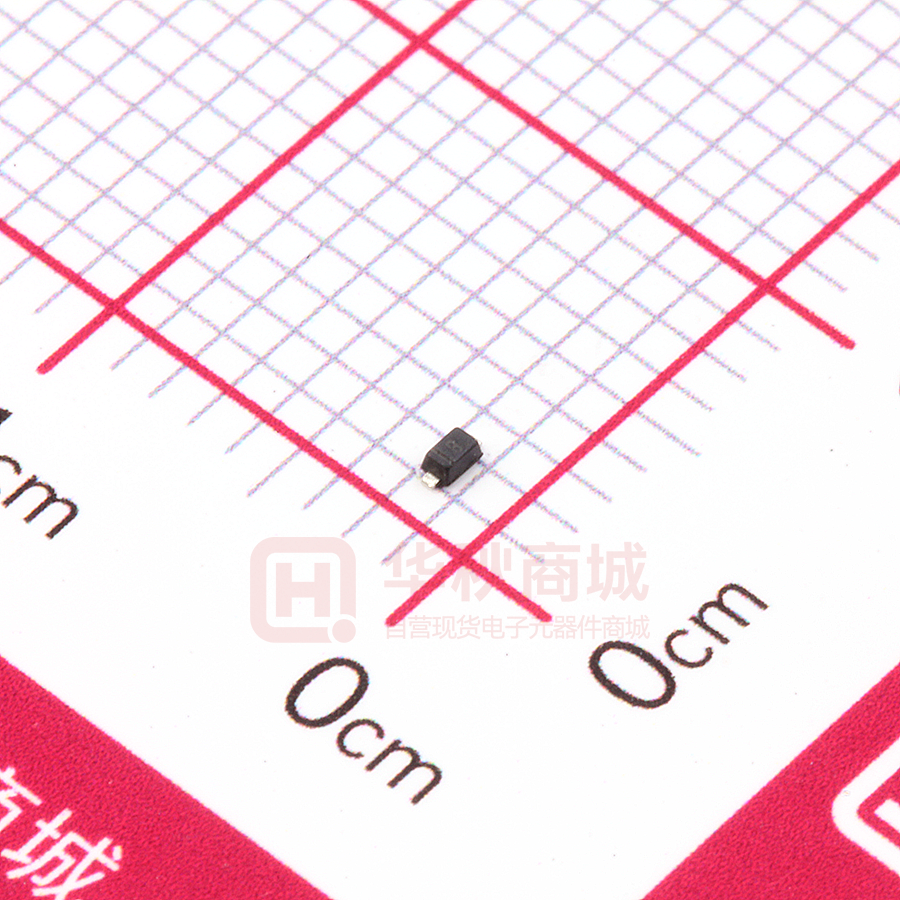

RB520S-30-TP

RB520S-30 Features • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • High Reliability • Low Reverse Current and Low Forward Voltage • Small Surface Mount Type • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) • Halogen Free Available Upon Request By Adding Suffix "-HF" 200 mA Schottky Barrier Diode 30 Volts Maximum Ratings • Operating Junction Temperature Range: -55°C to +125°C • Storage Temperature Range: -55°C to +155°C • Thermal Resistance: 667°C/W Junction to Ambient SOD-523 MCC Part Number Device Marking Maximum Recurrent Peak Reverse Voltage Maximum DC Blocking Voltage RB520S-30 B 30V 30V A B C E G Electrical Characteristics @ 25°C Unless Otherwise Specified Mean Rectifying Current IO D F H 200mA Peak Forward Surge Current IFSM Forward Voltage VF 0.6V(Max) IF=200mA; Reverse Current IR 1.0µA(Max) VR = 10V 1A t=8.3ms DIM A B C D E F G H DIMENSIONS INCHES MM MIN MAX MIN MAX 0.059 0.067 1.50 1.70 0.043 0.051 1.10 1.30 0.030 0.033 0.75 0.85 0.000 0.003 0.00 0.07 0.010 0.014 0.25 0.35 0.003 0.008 0.08 0.20 0.020 0.026 0.50 0.65 0.020 0.026 0.50 0.65 NOTE Suggested Solder Pad Layout 1.1mm 0.8mm 0.6mm Rev.3-2-08262019 1/3 MCCSEMI.COM RB520S-30 Curve Characteristics Fig. 1 - Forward Characteristics Fig. 2 - Reverse Characteristics 600 1000 100 Reverse Current (μA) Forward Current (mA) 100 Ta=100°C 10 1 Ta=25°C 0.1 Ta=100°C 10 1 Ta=25°C 0.1 0.01 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.01 0.8 Forward Voltage (V) 0 10 30 Fig. 4 - Power Derating Curve Fig. 3 - Capacitance Characteristics 200 100 Ta=25°C f=1MHz Power Dissipation (mW) Capacitance Between Terminals (pF) 20 Reverse Voltage (V) 10 1 0 5 10 15 100 50 0 20 Reverse Voltage (V) Rev.3-2-08262019 150 0 25 50 75 100 125 Ambient Temperature (°C) 2/3 MCCSEMI.COM RB520S-30 Ordering Information Device Packing Part Number-TP Tape&Reel: 8Kpcs/Reel Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-2-08262019 3/3 MCCSEMI.COM
