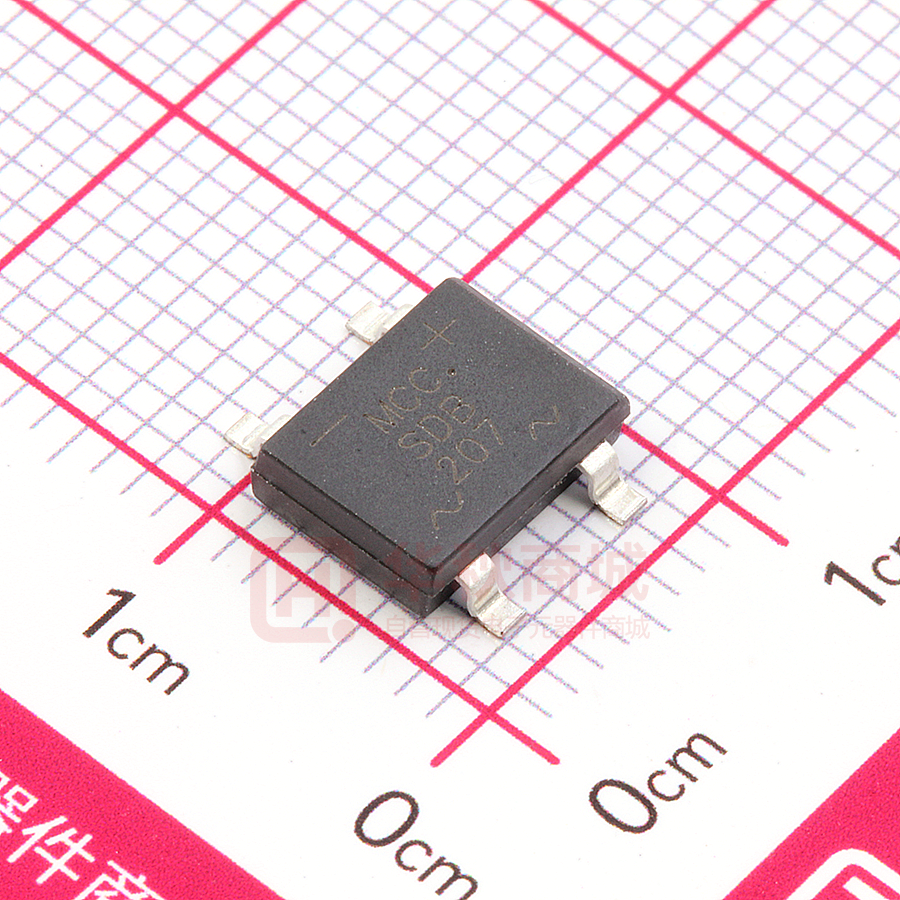

SDB207L-TP

SDB201L THRU SDB207L Features • Surface Mount Package • High Surge Current Capability • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix Designates Compliant. See Ordering Information) • Halogen Free Available Upon Request By Adding Suffix "-HF" 2 Amp Single Phase Glass Passivated Bridge Rectifier 50 to 1000 Volts Maximum Ratings • Operating Junction Temperature Range: -55°C to +150°C • Storage Temperature Range: -55°C to +150°C • Typical Thermal Resistance: 15°C/W Junction to Lead • Typical Thermal Resistance: 40°C/W Junction to Ambient SDBL-1 MCC Part Number Device Marking Maximum Recurrent Peak Reverse Voltage SDB201L SDB201 50V 35V 50V SDB202L SDB202 100V 70V 100V SDB203L SDB203 200V 140V 200V SDB204L SDB204 400V 280V 400V SDB205L SDB206L SDB205 SDB206 600V 800V 420V 560V 600V 800V SDB207L SDB207 1000V 700V 1000V Maximum RMS Voltage Maximum DC Blocking Voltage B 2.0A TA= 40°C Peak Forward Surge Current IFSM 60A 8.3ms, Half Sine Maximum Instantaneous Forward Voltage VF 1.1V IF = 2.0A TJ = 25°C 5μA TJ = 25°C 0.5mA TJ = 125°C 25pF Measured at 1.0MHz, VR=4.0V Maximum DC Reverse Current at Rated DC Blocking Voltage IR Typical Junction Capacitance CJ Rating For Fusing I2t 14.9A2s ∼ ∼ D C K Notch in Case A E G H DIM IF(AV) + F Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current - A B C D E F G H K DIMENSIONS INCHES MM MIN MAX MIN MAX 0.320 0.335 8.12 8.51 0.244 0.256 6.20 6.50 0.040 0.060 1.02 1.53 0.366 0.413 9.30 10.50 0.093 0.096 2.35 2.45 0.006 0.013 0.15 0.33 0.003 0.013 0.076 0.33 0.195 0.205 5.00 5.20 0.037 0.047 0.95 1.20 NOTE Suggested Solder Pad Layout 1.19mm t
