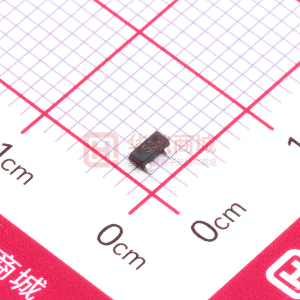

SI2303

MCC Micro Commercial Components TM
  omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# SI2303 Features • • • • • • • • -30V,-2.6A, RDS(ON)=130m¡@VGS= -10V -30V,-2.0A, RDS(ON)=180m¡@VGS= -4.5V High dense cell design for extremely low RDS(ON) Rugged and reliable Lead free product is acquired SOT-23 Package Marking Code: S3 Epoxy meets UL 94 V-0 flammability rating Moisture Sensitivity Level 1 Parameter Drain-source Voltage Drain Current-Continuous Drain Current-Pulsed a Gate-source Voltage Total Power Dissipation Thermal Resistance Junction to Ambientb Operating Junction Temperature Storage Temperature P-Channel Enhancement Mode Field Effect Transistor SOT-23 A D Maximum Ratings @ 25OC Unless Otherwise Specified Symbol VDS ID IDM VGS PD R©JA TJ TSTG Rating -30 -3 -10 f20 0.25 500 -55 to +150 -55 to +150 Unit V A A V W /W 3 1.GATE C B 2. SOURCE 3. DRAIN 1 F E 2 G H J K DIMENSIONS Internal Block Diagram D DIM A B C D E F G H J K INCHES MIN .110 .083 .047 .035 .070 .018 .0005 .035 .003 .015 MAX .120 .098 .055 .041 .081 .024 .0039 .044 .007 .020 MM MIN 2.80 2.10 1.20 .89 1.78 .45 .013 .89 .085 .37 MAX 3.04 2.64 1.40 1.03 2.05 .60 .100 1.12 .180 .51 NOTE Suggested Solder Pad Layout G .031 .800 .035 .900 .079 2.000 S inches mm .037 .950 .037 .950 Revision: A www.mccsemi.com 1 of 5 2011/01/01 MCC Micro Commercial Components Parameter TM SI2303 TA = 25 C unless otherwise noted Symbol Test Condition Min Typ Max Units Electrical Characteristics Off Characteristics Drain-Source Breakdown Voltage BVDSS VGS = 0V, ID = -10µA -30 V Zero Gate Voltage Drain Current IDSS VDS = -30V, VGS = 0V -1 µA Gate Body Leakage Current, Forward IGSSF VGS = 20V, VDS = 0V 100 nA Gate Body Leakage Current, Reverse IGSSR VGS = -20V, VDS = 0V -100 nA On Characteristics C Gate Threshold Voltage VGS(th) VGS = VDS, ID =-250µA -1 -3 V Static Drain-Source On-Resistance RDS(on) VGS = -10V, ID = -2.6A 130 m VGS = -4.5V, ID = -2.0A 180 m Forward Transconductance gFS VDS = -10V, ID = -1.7A 2.4 S Dynamic Characteristics d Input Capacitance Ciss 226 pF VDS = -15V, VGS = 0V, Output Capacitance Coss 87 pF f = 1.0 MHz Reverse Transfer Capacitance Crss 19 pF Switching Characteristics d Turn-On Delay Time td(on) 9 20 ns VDD = -15V, ID = -1A, Turn-On Rise Time tr 9 20 ns VGEN = -10V, RG=6 , Turn-Off Delay Time td(off) RL=15 18 35 ns Turn-Off Fall Time tf 6 20 ns Total Gate Charge Qg 5.8 10 nC VDS = -15V, ID = -1.7A, Gate-Source Charge Qgs 0.8 nC VGS =-10V Gate-Drain Charge Qgd 1.5 nC Drain-Source Diode Characteristics and Maximun Ratings Drain-Source Diode Forward Voltage C VSD VGS = 0V, IS = -1.25A -1.2 V Notes : a.Repetitive Rating : Pulse width limited by maximum junction temperature. b.Surface Mounted on FR4 Board, t < 10 sec. c.Pulse Test : Pulse Width < 300µs, Duty Cycle < 2%. d.Guaranteed by design, not subject to production testing. Revision: A www.mccsemi.com 2 of 5 2011/01/01 SI2303 Typical characteristics MCC Micro Commercial Components TM Revision: A www.mccsemi.com 3 of 5 2011/01/01 SI2303 Typical characteristics MCC Micro Commercial Components TM Revision: A www.mccsemi.com 4 of 5 2011/01/01 MCC Micro Commercial Components TM Ordering Information : Device Part Number-TP Packing Tape&Reel: 3Kpcs/Reel ***IMPORTANT NOTICE* ** Micro Comme rcial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Comme rcial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Co mponents Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from A uthorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC' s quality standards for handling and storage. MCC will not pro vide any warranty coverage or o ther assistance for parts bought from Unau thorized Source s. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Revision: A www.mccsemi.com 5 of 5 2011/01/01 3
