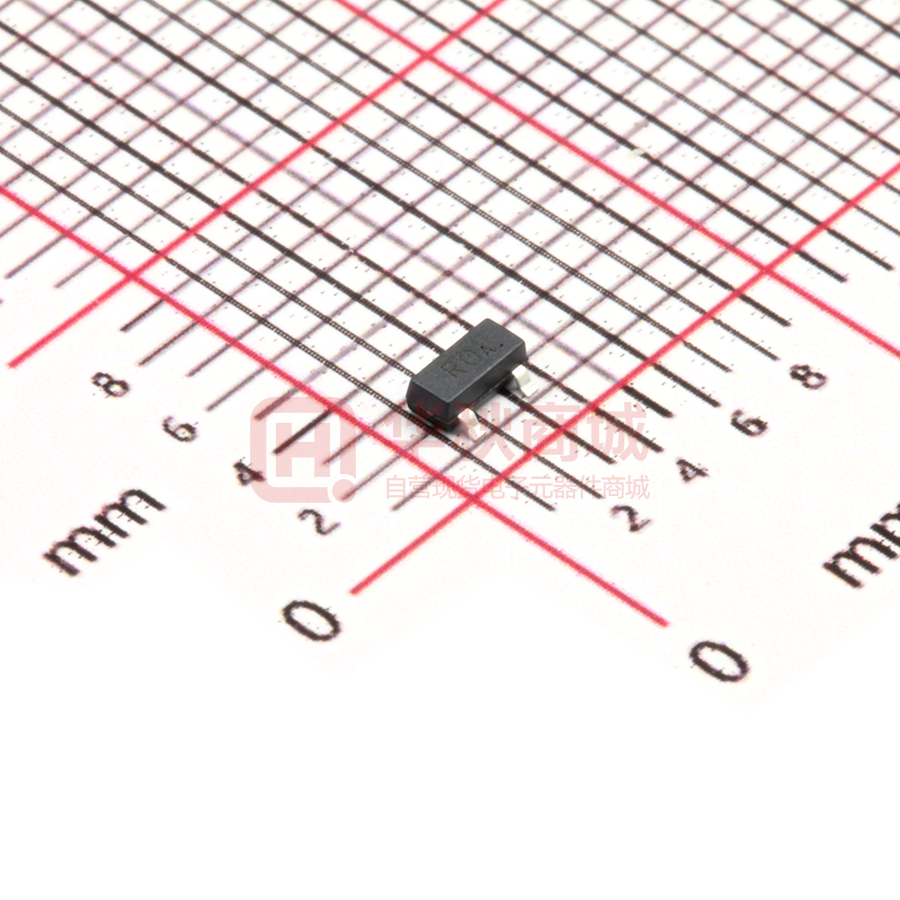

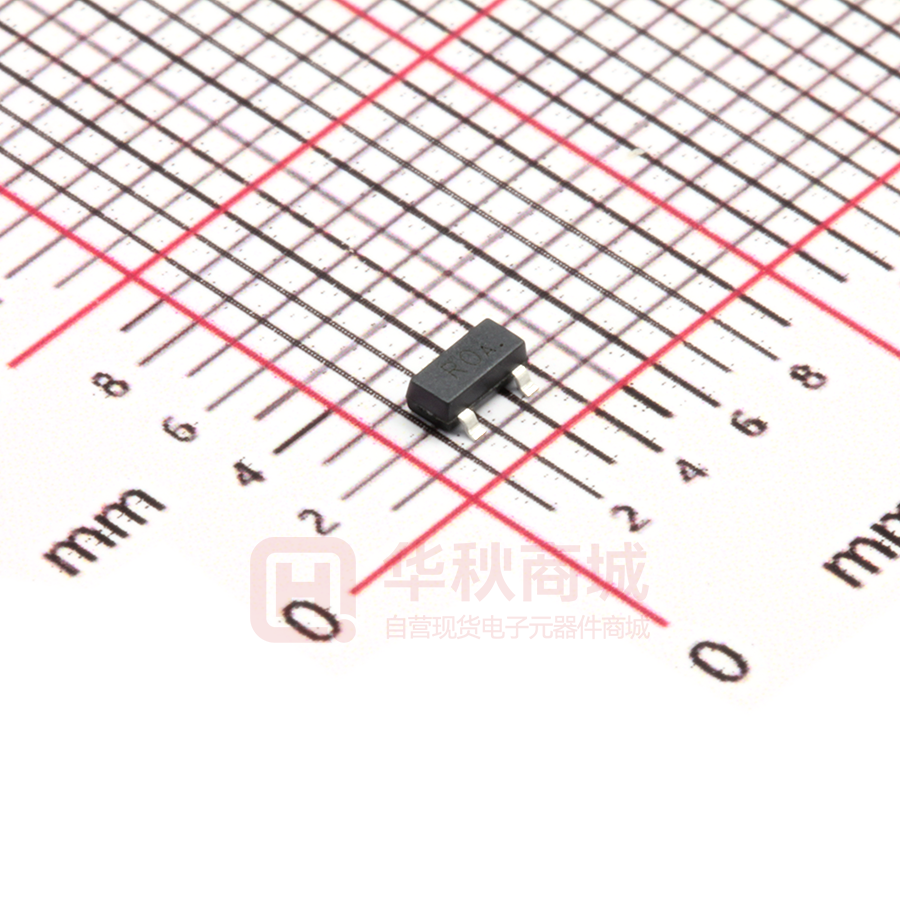

SI3400A-TP

MCC R Micro Commercial Components
  omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# SI3400A Features • • • • • • Halogen free available upon request by adding suffix "-HF" Epoxy meets UL 94 V-0 flammability rating Moisture Sensitivity Level 1 High dense cell design for extremely low RDS(ON) Exceptional on-resistance and maximum DC current capability Marking Code: N-Channel Enhancement Mode Field Effect Transistor SOT-23 A Maximum Ratings @ 25OC Unless Otherwise Specified Symbol VDS ID IDM VGS PD RθJA TJ TSTG Parameter Drain-source Voltage Continuous Drain Current Pulsed Drain Current（note1） Gate-source Voltage Total Power Dissipation Thermal Resistance Junction to Ambient Operating Junction Temperature Storage Temperature Rating 30 5.8 30 ±12 0.40 313 -55 to +150 -55 to +150 D Unit V A A V W ℃/W ℃ ℃ 3 1.GATE C 1 F 2. SOURCE B 3. DRAIN 2 E H G J K DIMENSIONS DIM A B C D E F G H J K Internal Block Diagram INCHES MIN .110 .083 .047 .035 .070 .018 .0005 .035 .003 .015 MAX .120 .104 .055 .041 .081 .024 .0039 .044 .007 .020 MM MIN 2.80 2.10 1.20 .89 1.78 .45 .013 .89 .085 .37 MAX 3.04 2.64 1.40 1.03 2.05 .60 .100 1.12 .180 .51 NOTE Suggested Solder Pad Layout .031 .800 .035 .900 .079 2.000 inches mm .037 .950 .037 .950 www.mccsemi.com Revision: A 1 of 4 2016/02/26 MCC Micro Commercial Components ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Symbol Test Condition Min Typ Max Unit Off Characteristics Drain-source breakdown voltage V(BR) DSS VGS = 0V, ID =250µA Zero gate voltage drain current IDSS VDS =24V,VGS = 0V Gate-source leakage current IGSS VGS =±12V, VDS = 0V 30 V 1 µA ±100 nA On characteristics (note 3) Drain-source on-resistance RDS(on) Forward tranconductance gFS Gate threshold voltage VGS(th) Dynamic Characteristics VGS =10V, ID =5.8A 29 32 mΩ VGS =4.5V, ID =5A 32 38 mΩ VGS =2.5V,ID=4A 40 45 mΩ VDS =5V, ID =5A VDS =VGS, ID =250µA 8 S 0.7 1.4 V 1155 pF (note 4,5) Input capacitance Ciss Output capacitance Coss Reverse transfer capacitance Crss Gate resistance Rg Switching Characteristics VDS =15V,VGS =0V,f =1MHz VDS =0V,VGS =0V,f =1MHz 108 pF 84 pF 3.6 Ω 5 ns (note 4,5) Turn-on delay time td(on) Turn-on rise time Turn-off delay time Turn-off fall time tr VGS=10V,VDS=15V, 7 ns td(off) RL=2.7Ω,RGEN=3Ω 40 ns 6 ns 1 V tf Drain-source diode characteristics and maximum ratings Diode forward voltage (note 3) VSD IS=1A,VGS=0V Note : 1. Repetitive Rating : Pulse width limited by maximum junction temperature. 2. Surface Mounted on FR4 Board, t < 5 sec. 3. Pulse Test : Pulse Width≤300µs, Duty Cycle ≤ 2%. 4. Guaranteed by design, not subject to production testing. www.mccsemi.com Revision: A 2 of 4 2016/02/26 R MCC Micro Commercial Components Output Characteristics Transfer Characteristics 20 14 Ta=25℃ VDS=3V VGS=3V,4V,5V,6V Pulsed 18 Pulsed 12 (A) 10 ID 14 12 DRAIN CURRENT DRAIN CURRENT ID (A) 16 VGS=2V 10 8 6 Ta=25℃ Ta=100℃ 8 6 4 4 VGS=1.5V 2 2 0 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 DRAIN TO SOURCE VOLTAGE VDS 4.0 4.5 0 0.0 5.0 0.5 (V) 1.0 1.5 2.0 GATE TO SOURCE VOLTAGE 2.5 VGS RDS(ON) —— VGS RDS(ON) —— ID 35 150 Ta=25℃ Pulsed Pulsed VGS=2.5V ID=5A (m) 125 (m) RDS(ON) 30 ON-RESISTANCE RDS(ON) ON-RESISTANCE 3.0 (V) VGS=4.5V 25 VGS=10V 100 75 Ta=100℃ 50 25 Ta=25℃ 20 0 1 2 3 4 DRAIN CURRENT 5 ID 6 0 (A) 1 2 3 4 5 6 GATE TO SOURCE VOLTAGE 7 VGS 8 9 10 (V) Threshold Voltage IS —— VSD 7 1.4 Pulsed VTH 1 Ta=75℃ Ta=100℃ THRESHOLD VOLTAGE SOURCE CURRENT IS (A) (V) 1.2 Ta=25℃ 0.1 1.0 ID=250μA 0.8 0.6 0.4 0.2 0.01 0.0 0.2 0.4 0.6 0.8 1.0 1.2 SOURCE TO DRAIN VOLTAGE 1.4 1.6 0.0 25 1.8 VSD (V) 50 75 JUNCTION TEMPERATURE 100 Tj 125 (℃ ) www.mccsemi.com Revision: A 3 of 4 2016/02/26 R MCC R Micro Commercial Components Ordering Information : Device Packing Part Number-TP Tape&Reel: 3Kpcs/Reel Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. www.mccsemi.com Revision: A 4 of 4 2016/02/26
