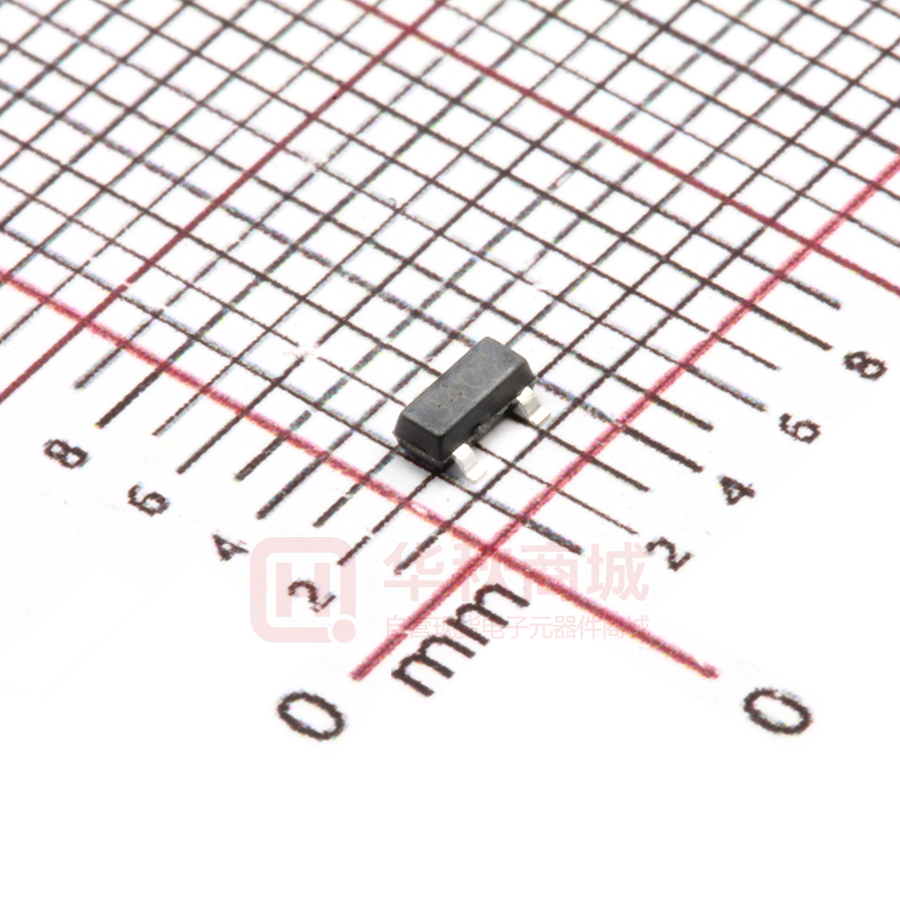

SI3407-TP

SI3407 Features • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • • Halogen Free Available Upon Request By Adding Suffix "-HF" Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) P-CHANNEL MOSFET Maximum Ratings • Operating Junction Temperature Range : -55°C to +150°C • Storage Temperature Range: -55°C to +150°C • Thermal Resistance: 96°C/W Junction to Ambient Parameter Symbol Rating Unit Drain-Source Voltage VDS -30 V Gate-Source Volltage VGS ±20 V Continuous Drain Current ID -4.1 A Total Power Dissipation PD 1.3 W SOT-23 A D 3 C 1 F Internal Structure B 2 E H G J L K D DIMENSIONS INCHES MM DIM MIN MAX MIN MAX A 0.110 0.120 2.80 3.04 B 0.083 0.104 2.10 2.64 C 0.047 0.055 1.20 1.40 0.034 0.041 0.85 1.05 D E 0.067 0.083 1.70 2.10 F 0.018 0.024 0.45 0.60 G 0.0004 0.006 0.01 0.15 H 0.035 0.043 0.90 1.10 J 0.003 0.007 0.08 0.18 K 0.012 0.020 0.30 0.51 L 0.007 0.020 0.20 0.50 1. *$7E 2. 6285&( 3. '5$,1 G S Marking: 3407 NOTE Suggested Solder Pad Layout 0.031 0.800 0.035 0.900 0.079 2.000 inches mm 0.037 0.950 0.037 0.950 Rev.3-2-03032020 1/4 MCCSEMI.COM SI3407 Electrical Characteristics @ 25°C (Unless Otherwise Specified) Parameter Symbol Test Conditions Min Typ Max Unit Static Characteristics V(BR)DSS VGS=0V, ID=-250µA Gate-Source Leakage Current IGSS VDS=0V, VGS =±20V ±100 nA Zero Gate Voltage Drain Current IDSS VDS=-24V, VGS=0V -1 µA -1.4 -3 V VGS=-10V, ID=-4.1A 50 60 VGS=-4.5V, ID=-3A 68 87 Drain-Source Breakdown Voltage Gate-Threshold Voltage VGS(th) Drain-Source On-Resistance(Note 1) RDS(on) VDS=VGS, ID=-250µA Diode Forward Voltage(Note 1) VSD VGS=0V, IS=-1A Forward tranconductance(Note 1) gFS VDS=-5V, ID=-4A -30 -1 V -1.0 5.5 mΩ V S Dynamic Characteristics(Note 2) Input Capacitance Ciss Output Capacitance Coss Reverse Transfer Capacitance Crss 75 Turn-On Delay Time td(on) 8.6 Turn-On Rise Time tr Turn-Off Delay Time td(off) Turn-Off Fall Time 700 VDS=-15V,VGS=0V,f=1MHz VGS=-10V,VDS=-15V, RL=3.6Ω,RGEN=3Ω tf 120 pF 5 ns 28.2 13.5 Note 1. Pulse Test : Pulse Width≤300μs, Duty Cycle ≤2%. 2. These parameters have no way to verify. Rev.3-2-03032020 2/4 MCCSEMI.COM SI3407 Curve Characteristics Fig. 1 - Output Characteristics Fig. 2 - Transfer Characteristics -5 -20 VGS=-10V,5V,-4.5V,4V TA=25°C Pulsed TA=25°C Pulesd VGS=-3.5V -4 Drain Current (A) Drain Current (A) -15 VGS=-3.0V -10 -3 -2 -5 -1 -0 -0 -1 -2 -3 -4 -0 -5 -0 -1 -2 180 TA=25°C TA=25°C Pulsed Drain-Source On-Resistance (mΩ) Drain-Source On-Resistance (mΩ) -4 Fig. 4 - RDS(ON)—VGS Fig. 3 - RDS(ON)—ID 100 80 VGS=-4.5V 60 VGS=-10V 40 20 -3 Gate To Source Voltage (V) Drain To Source Voltage (V) -0 -2 -4 -6 -8 -10 Pulsed 150 120 ID=-4.1A 90 60 30 -2 -4 -6 -8 -10 Gate To Source Voltage (V) Drain Current (A) Fig. 5 - IS—VSD 10 TA=25°C Pulsed Source Current (A) 1 0.1 0.01 1E-3 1E-4 1E-5 0.2 0.4 0.6 0.8 1.0 1.2 Source To Drain Voltage (V) Rev.3-2-03032020 3/4 MCCSEMI.COM SI3407 Ordering Information Device Packing Part Number-TP Tape&Reel: 3Kpcs/Reel Note : Adding "-HF" Suffix for Halogen Free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-2-03032020 4/4 MCCSEMI.COM
