SK22-L THRU SK220-L
Features
• Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix Designates
Compliant. See Ordering Information)
• Epoxy Meets UL 94 V-0 Flammability Rating
• Moisture Sensitivity Level 1
• Low Forward Voltage
• Halogen Free Available Upon Request By Adding Suffix "-HF"
• High Current Capability
2 Amp Schottky
Rectifier
20 to 200 Volts
Maximum Ratings
•
•
•
•
•
Operating Junction Temperature Range: -55⁰C to +125⁰C(SK22-L~SK26-L)
Operating Junction Temperature Range: -55⁰C to +150⁰C(SK28-L~SK220-L)
Storage Temperature Range: -55⁰C to +150⁰C
Maximum Thermal Resistance: 71°C/W Junction to Ambient
Maximum Thermal Resistance: 15°C/W Junction to Lead
MCC
Part Number
Device
Marking
SK22-L
SK23-L
SK24-L
SK25-L
SK26-L
SK28-L
SK210-L
SK2150-L
SK220-L
SK22
SK23
SK24
SK25
SK26
SK28
SK210
SK2150
SK220

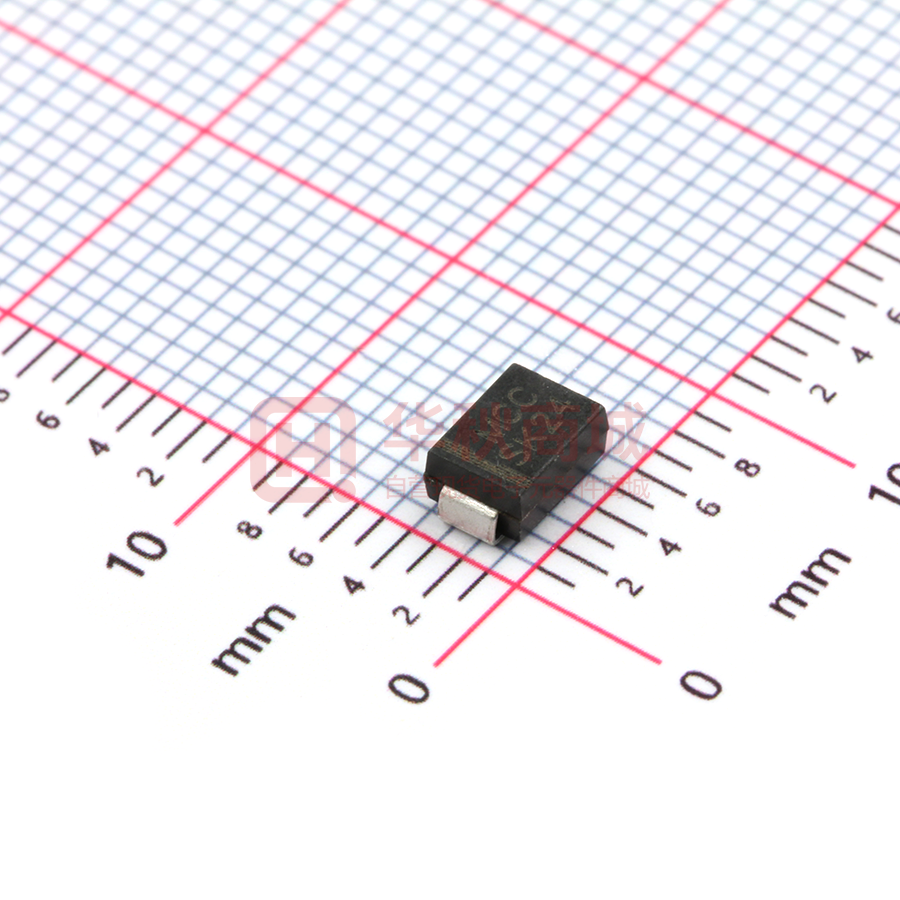

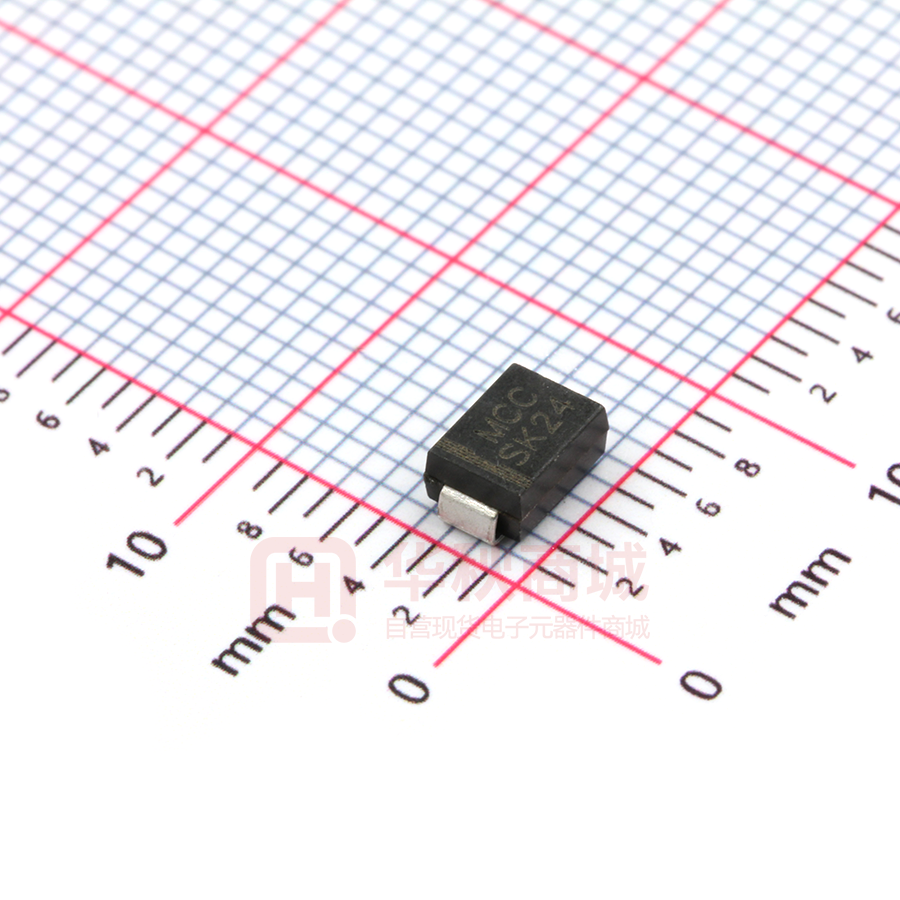

DO-214AA
Maximum
Maximum DC
Recurrent
Maximum
Blocking
Peak Reverse RMS Voltage
Voltage
Voltage
20V
30V
40V
50V
60V
80V
100V
150V
200V
14V
21V
28V
35V
42V
56V
70V
105V
140V
(SMB) (LEAD FRAME)
H
20V
30V
40V
50V
60V
80V
100V
150V
200V
J
Cathode Mark
A
E
Average Forward Current
IF(AV)
2.0A
TL=105⁰C
Peak Forward Surge Current
IFSM
50A
8.3ms,half sine
Maximum Instantaneous
Forward Voltage
SK22-L~SK24-L
SK25-L~SK26-L
SK28-L~SK210-L
SK2150-L~SK220-L
VF
0.50V
0.70V
0.85V
0.90V
IFM=2.0A;
TJ=25⁰C*
Maximum DC Reverse
Current At Rated DC
Blocking Voltage
SK22-L~SK26-L
SK28-L~SK210-L
SK2150-L~SK220-L
Typical Junction
Capacitance
SK22-L~SK26-L
SK28-L~SK210-L
SK2150-L~SK220-L
D
F
Electrical Characteristics @ 25°C Unless Otherwise Specified
C
B
G
DIM
A
B
C
D
E
F
G
H
J
DIMENSIONS
INCHES
MM
MIN MAX MIN MAX
0.079 0.103 2.00 2.62
0.075 0.087 1.91 2.21
0.002 0.008 0.05 0.20
0.006 0.012 0.15 0.31
0.030 0.060 0.76 1.52
0.065 0.091 1.65 2.32
0.200 0.220 5.08 5.59
0.160 0.191 4.06 4.85
0.130 0.155 3.30 3.94
NOTE
Suggested Solder Pad Layout
IR
100μA
50μA
10μA
TJ=25⁰C;
1.80mm
2.30mm
CJ
230pF
50pF
170pF
Measured at 1.0MHz
VR=4.0V
2.50mm
*Pulse test: Pulse width 300 μsec, Duty cycle 2%
Note:1. High Temperature Solder Exemptions Applied, see EU Directive Annex 7a.
Rev.3-1-01212019
1/4
MCCSEMI.COM
SK22-L THRU SK220-L
Curve Characteristics
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge
Current
60
2.0
50
Peak Forward Surge Current (A)
Average Forward Current (A)
Fig. 1 - Forward Current Derating Curve
2.4
1.6
1.2
SK22-L~SK26-L
0.8
SK28-L~SK220-L
0.4
40
30
20
10
Resistive or Inductive Load
0
25
50
75
100
125
0
150
1
Number of Cycles at 60 Hz
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 4 - Typical Instantaneous Forward Characteristics
5
5
2
2
1
TJ=125°C
0.5
TJ=75°C
0.2
0.1
0.05
TJ=25°C
0.02
0.01
0.0
0.1
0.2
0.3
0.4
SK22-L~SK24-L
0.5
0.6
0.7
1
TJ=75°C
0.2
0.1
0.05
TJ=25°C
0.02
0.01
0.0
0.8
TJ=125°C
0.5
0.1
Instantaneous Forward Voltage (V)
2
2
Instantaneous Forward Current (A)
5
1
TJ=125°C
TJ=75°C
0.2
0.1
0.05
TJ=25°C
0.02
0.01
0.2
0.3
0.4
0.5
0.6
SK28-L~SK210-L
0.7
0.8
0.9
0.4
0.5
0.6
0.7
0.8
1
TJ=125°C
0.5
TJ=75°C
0.2
0.1
0.05
TJ=25°C
0.02
0.01
0.2
1.0
0.3
0.4
0.5
0.6
SK2150-L~SK220-L
0.7
0.8
0.9
1.0
Instantaneous Forward Voltage (V)
Instantaneous Forward Voltage (V)
Rev.3-1-01212019
0.3
Fig. 6 - Typical Instantaneous Forward Characteristics
5
0.5
0.2
SK25-L~SK26-L
Instantaneous Forward Voltage (V)
Fig. 5 - Typical Instantaneous Forward Characteristics
Instantaneous Forward Current (A)
100
10
Lead Temperature (°C)
Instantaneous Forward Current (A)
Instantaneous Forward Current (A)
0.0
8.3 ms Single Half Sine-Wave
2/4
MCCSEMI.COM
SK22-L THRU SK220-L
Curve Characteristics
Fig. 8 - Typical Reverse Leakage Characteristics
Fig. 7 - Typical Reverse Leakage Characteristics
1000
Instantaneous Reverse Leakage Current (μA)
Instantaneous Reverse Leakage Current (μA)
10000
TJ=125°C
100
TJ=75°C
10
1
20
TJ=25°C
40
60
SK22-L~SK26-L
80
100
100
10
TJ=125°C
1
0.1
TJ=75°C
0.01
TJ=25°C
0.001
20
40
60
SK28-L~SK210-L
80
100
Percent of Rated Peak Reverse Voltage (%)
Percent of Rated Peak Reverse Voltage (%)
Instantaneous Reverse Leakage Current (μA)
Fig. 9 - Typical Reverse Leakage Characteristics
100
10
TJ=100°C
1
TJ=75°C
0.1
TJ=25°C
0.01
20
40
60
SK2150-L~SK220-L
80
100
Percent of Rated Peak Reverse Voltage (%)
Rev.3-1-01212019
3/4
MCCSEMI.COM
SK22-L THRU SK220-L
Ordering Information
Device
Packing
SK22-LTP~SK220-LTP
Tape&Reel: 3Kpcs/Reel
Note : Adding "-HF" Suffix For Halogen Free, eg. SK22-LTP-HF~SK220-LTP-HF
***IMPORTANT NOTICE***
Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to
make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components
Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it
convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all
risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are
represented on our website, harmless against all damages.
***LIFE SUPPORT***
MCC's products are not authorized for use as critical components in life support devices or systems without the express
written approval of Micro Commercial Components Corporation.
***CUSTOMER AWARENESS***
Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking
strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages
customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on
our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine
parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty
coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global
problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized
distributors.
Rev.3-1-01212019
4/4
MCCSEMI.COM
