SK310A

SK310A

  • 厂商:

    MCC(美微科)

  • 封装:

  • 描述:

    SK310A - 3 Amp Schottky Rectifier 20 to 100 Volts - Micro Commercial Components

  • 数据手册
  • 价格&库存
SK310A 数据手册
MCC Micro Commercial Components TM   omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# SK32A THRU SK310A 3 Amp Schottky Rectifier 20 to 100 Volts DO-214AC (HSMA) (High Profile) H Cathode Band Features • • • • • • • • Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) Same Electrical Characteristics As The SMC Version Very Low Cost Can Be Up To 50% Smaller Than The SMC To Save Precious Board Space High Current Capability With Low Forward Voltage For Surface Mount Applications Epoxy meets UL 94 V-0 flammability rating Moisture Sensitivity Level 1 Maximum Ratings • • • Operating Temperature: -50°C to +125°C Storage Temperature: -50°C to +150°C Maximum Thermal Resistance; 10°C/W Junction To Lead MCC Part Number SK32A SK33A SK34A SK35A SK36A SK38A SK310A Device Marking Maximum Recurrent Peak Reverse Voltage 20V 30V 40V 50V 60V 80V 100V Maximum RMS Voltage 14V 21V 28V 35V 42V 56V 70V Maximum DC Blocking Voltage 20V 30V 40V 50V 60V 80V 100V DIM A B C D E F G H J J SK32A SK33A SK34A SK35A SK36A SK38A SK310A A C E F G D B DIMENSIONS INCHES MIN .078 .067 .002 --.035 .065 .205 .160 .100 MM MIN 1.98 1.70 .05 --.89 1.65 5.21 4.06 2.57 Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current Peak Forward Surge Current Maximum Instantaneous Forward Voltage SK32A-34A SK35A-36A SK38A-310A IF(AV) IFSM 3.0A 80A TL = 100°C 8.3ms, half sine MAX .116 .089 .008 .02 .055 .096 .224 .180 .112 MAX 2.95 2.25 .20 .51 1.40 2.45 5.69 4.57 2.84 NOTE SUGGESTED SOLDER PAD LAYOUT VF .50V .75V .85V IFM = 3.0A; TJ = 25°C* 0.090” Maximum DC Reverse Current At Rated DC Blocking Voltage Typical Junction Capacitance Note: IR .5mA 20mA 45pF TJ = 25°C TJ = 100°C Measured at 1.0MHz, VR=4.0V 0.085” CJ 0.070” *Pulse test: Pulse width 200 µsec, Duty cycle 2% 1. High Temperature Solder Exemptions Applied, see EU Directive Annex 7. Revision: A www.mccsemi.com 1 of 4 2011/01/01 SK32A thru SK310A Figure 1 Typical Forward Characteristics 100 60 40 20 SK32A-SK34A 10 6 4 2 Amps 1 .5 .6 .4 .2 .1 .06 .04 .02 .01 .2 .4 .6 .8 Volts Instantaneous Forward Current - Amperesversus Instantaneous Forward Voltage - Volts Figure 3 Junction Capacitance 1000 SK35A-SK310A 600 400 200 pF 100 60 40 20 10 .1 .2 .4 1 Volts 2 4 10 20 40 100 200 SK32A-34A 1.0 1.2 1.4 25°C 0 1.5 Amps 1.0 SK35A-SK310A 2.0 2.5 3.0 MCC Micro Commercial Components Figure 2 Forward Derating Curve TM Single Phase, Half Wave 60Hz Resistive or Inductive Load 40 60 80 100 °C Average Forward Rectified Current - Amperesversus Lead Temperature - °C 120 140 160 TJ=25°C 400 1000 Junction Capacitance - pFversus Reverse Voltage - Volts Revision: A www.mccsemi.com 2 of 4 2011/01/01 SK32A thru SK310A Figure 4 Typical Reverse Characteristics 10 6 4 2 1 .6 .4 .2 20 mAmps .1 0 .06 .04 .02 .01 .006 .004 .002 .001 20 40 60 80 Volts Instantaneous Reverse Leakage Current - MicroAmperes ersus v Percent Of Rated Peak Reverse Voltage - Volts 100 120 140 SK32A-34A SK35A-310A 1 2 4 6 MCC TM Micro Commercial Components 100°C Figure 5 Peak Forward Surge Current 120 100 80 75°C 60 Amps 40 8 10 Cycles 20 40 60 80 100 25°C Peak Forward Surge Current - Amperesversus Number Of Cycles At 60Hz - Cycles Figure 6 New SMA Assembly Round Lead www.mccsemi.com Revision: A 3 of 4 2011/01/01 MCC Micro Commercial Components TM Ordering Information : Device Part Number-TP Packing Tape&Reel: 3Kpcs/Reel ***IMPORTANT NOTICE* ** Micro Comme rcial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Comme rcial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Co mponents Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from A uthorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC' s quality standards for handling and storage. MCC will not pro vide any warranty coverage or o ther assistance for parts bought from Unau thorized Source s. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. www.mccsemi.com Revision: A 4 of 4 2011/01/01 3
SK310A 价格&库存

很抱歉,暂时无法提供与“SK310A”相匹配的价格&库存,您可以联系我们找货

免费人工找货

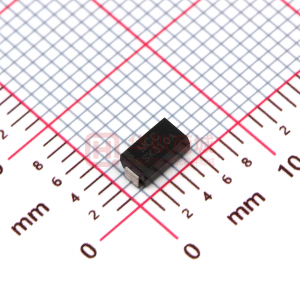

SK310A-LTP
