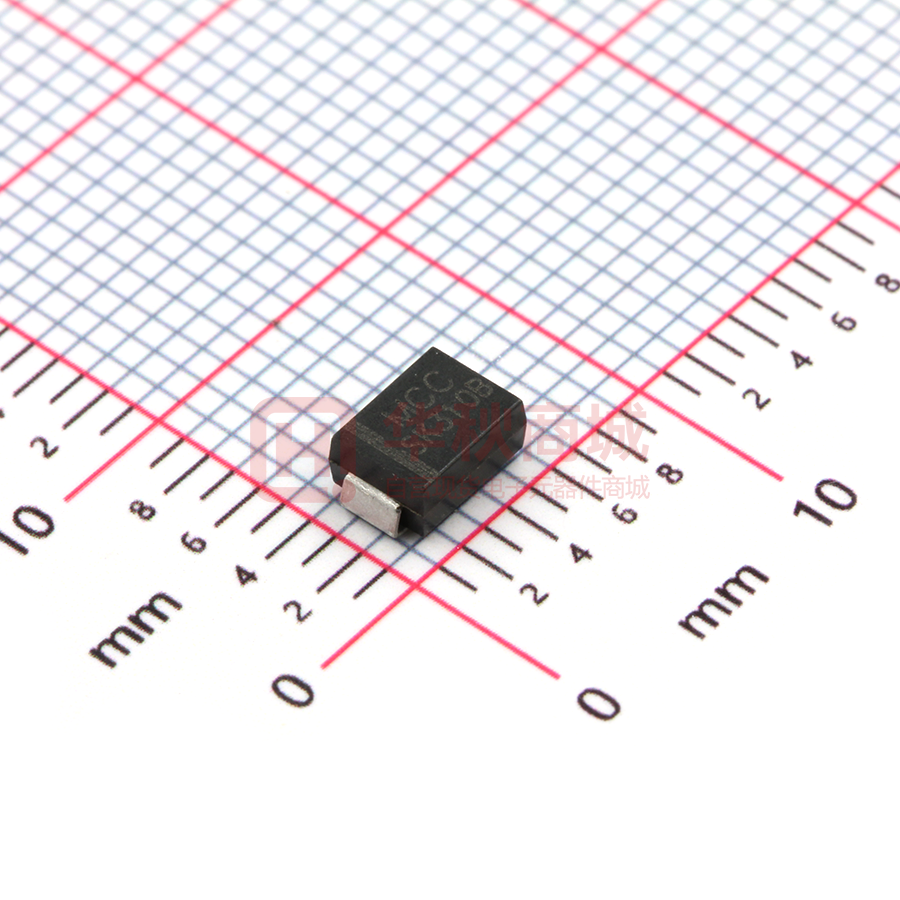

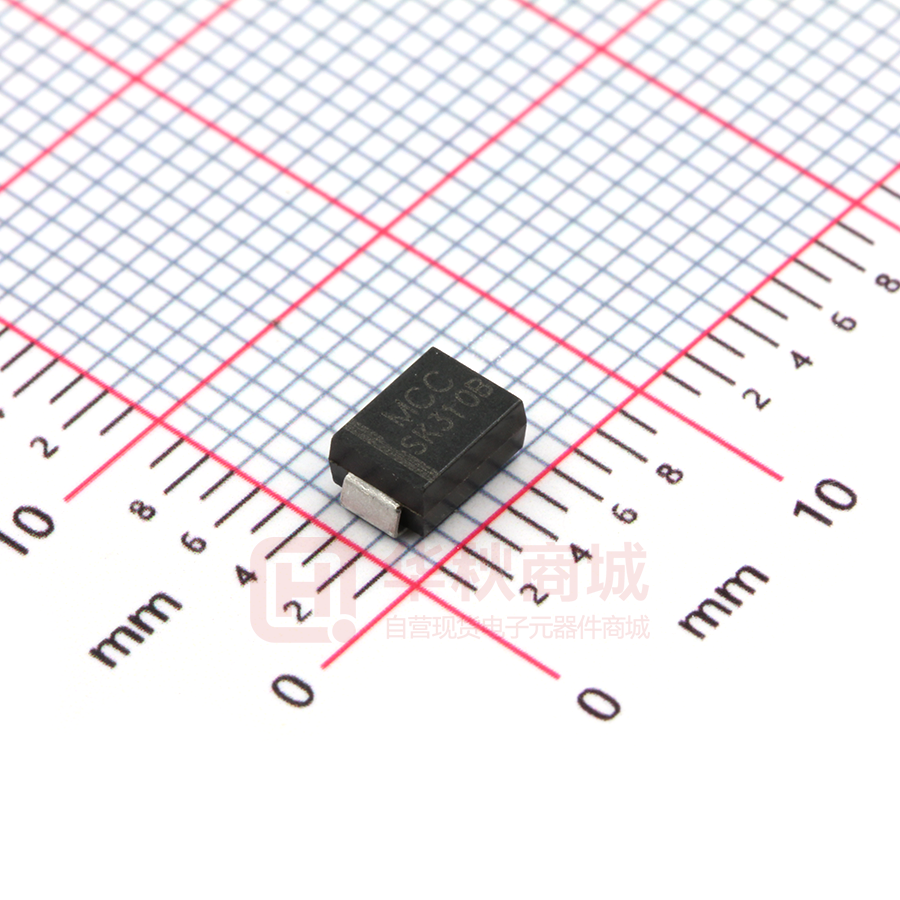

SK310B-LTP

SK32B-L THRU SK310B-L Features • Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix Designates Compliant. See Ordering Information) • For Surface Mount Applications • Extremely Low Thermal Resistance • Halogen Free. “Green” Device (Note 2) • High Current Capability With Low Forward Voltage • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 3 Amp Schottky Rectifier 20 to 100 Volts Maximum Ratings • • • • • • • Operating Junction Temperature Range:SK32B-L~SK34B-L: -55°C to +125°C Operating Junction Temperature Range:SK35B-L~SK36B-L: -55°C to +150°C Operating Junction Temperature Range:SK38B-L~SK310B-L: -55°C to +175°C Storage Temperature Range: -55⁰C to +150⁰C Typical Thermal Resistance: 10°C/W Junction to Lead Typical Thermal Resistance: 20°C/W Junction to Case Typical Thermal Resistance: 55°C/W Junction to Ambient MCC Part Number Device Marking H Maximum Maximum DC Recurrent Maximum Blocking Peak Reverse RMS Voltage Voltage Voltage SK32B 20V 14V 20V SK32B-L SK33B 30V 21V 30V SK33B-L SK34B 40V 28V 40V SK34B-L SK35B 50V 35V 50V SK35B-L SK36B 60V 42V 60V SK36B-L 56V SK38B-L SK38B 80V 80V SK310B SK310B-L 70V 100V 100V Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current IF(AV) 3.0A Peak Forward Surge Current IFSM 100A 8.3ms,Half Sine Maximum Instantaneous Forward Voltage SK32B-L~SK34B-L SK35B-L~SK36B-L SK38B-L~SK310B-L VF 0.50V 0.75V 0.85V IFM=3.0A; TJ=25⁰C* Maximum DC Reverse Current at Rated DC Blocking Voltage IR 0.1mA 10mA TJ=25⁰C TJ=100⁰C Typical Junction Capacitance SK32B-L~SK34B-L SK35B-L~SK36B-L SK38B-L~SK310B-L SMB (DO-214AA) See Fig. 1 J Cathode Mark D A C E B F G DIM A B C D E F G H J DIMENSIONS INCHES MM MIN MAX MIN MAX 0.079 0.103 2.00 2.62 0.075 0.087 1.91 2.21 0.002 0.008 0.05 0.20 0.006 0.012 0.15 0.31 0.030 0.060 0.76 1.52 0.065 0.091 1.65 2.32 0.200 0.220 5.08 5.59 0.160 0.191 4.06 4.85 0.130 0.155 3.30 3.94 NOTE Suggested Solder Pad Layout 1.80mm 2.30mm CJ 210pF 160pF 125pF Measured at 1.0MHz, VR=4.0V 2.50mm *Pulse test: Pulse width 200 μsec, Duty cycle 2% 1. High Temperature Solder Exemptions Applied, See EU Directive Annex 7a. 2. Halogen free "Green"products are defined as those which contain
