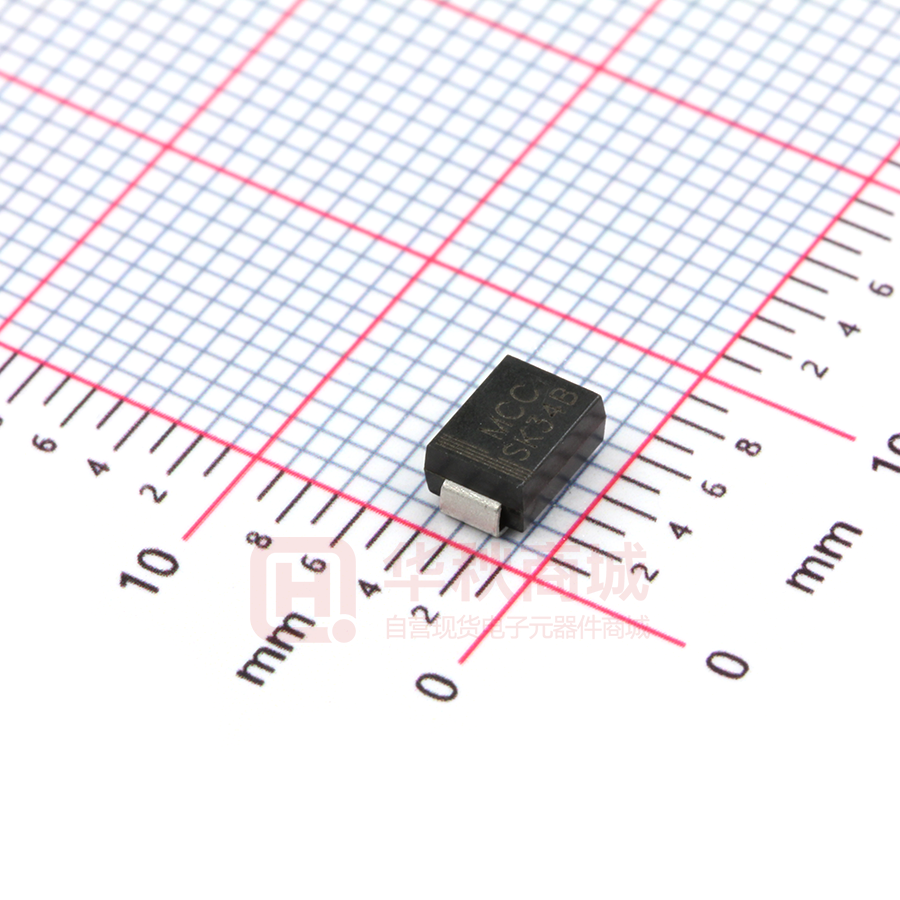

SK34B-LTP

SK32B-L THRU SK310B-L Features • Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix Designates Compliant. See Ordering Information) • For Surface Mount Applications • Extremely Low Thermal Resistance • Easy Pick And Place • Halogen Free Available Upon Request By Adding Suffix "-HF" • High Current Capability With Low Forward Voltage • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 3 Amp Schottky Rectifier 20 to 100 Volts Maximum Ratings • • • • SMB (DO-214AA) Operating Junction Temperature Range:SK32B-L~SK34B-L: -55°C to +125°C Operating Junction Temperature Range:SK35B-L~SK310B-L: -55°C to +150°C Storage Temperature Range: -55⁰C to +150⁰C Maximum Thermal Resistance: 10°C/W Junction to Lead MCC Part Number SK32B-L SK33B-L SK34B-L SK35B-L SK36B-L SK38B-L SK310B-L Device Marking H Maximum Maximum DC Recurrent Maximum Blocking Peak Reverse RMS Voltage Voltage Voltage SK32B SK33B SK34B SK35B SK36B SK38B SK310B 20V 30V 40V 50V 60V 80V 100V 14V 21V 28V 35V 42V 56V 70V J Cathode Mark 20V 30V 40V 50V 60V 80V 100V A E Average Forward Current IF(AV) 3.0A Peak Forward Surge Current IFSM 100A Maximum Instantaneous Forward Voltage SK32B-L~SK34B-L SK35B-L~SK36B-L SK38B-L~SK310B-L Maximum DC Reverse Current at Rated DC Blocking Voltage TL=105⁰C (SK32B-L~SK34B-L) TL=125⁰C (SK35B-L~SK310B-L) 8.3ms,Half Sine B G A B C D E F G H J DIMENSIONS INCHES MM MIN MAX MIN MAX 0.079 0.103 2.00 2.62 0.075 0.087 1.91 2.21 0.002 0.008 0.05 0.20 0.006 0.012 0.15 0.31 0.030 0.060 0.76 1.52 0.065 0.091 1.65 2.32 0.200 0.220 5.08 5.59 0.160 0.191 4.06 4.85 0.130 0.155 3.30 3.94 NOTE Suggested Solder Pad Layout VF IR IFM=3.0A; 0.5V 0.75V 0.85V TJ=25⁰C* 0.1mA 10mA TJ=25⁰C TJ=100⁰C *Pulse test: Pulse width 200 μsec, Duty cycle 2% Note:1. High Temperature Solder Exemptions Applied, See EU Directive Annex 7a. Rev.3-1-01012019 D F DIM Electrical Characteristics @ 25°C Unless Otherwise Specified C 1/4 2.69mm 2.11mm 1.27mm MCCSEMI.COM SK32B-L THRU SK310B-L Curve Characteristics Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current Fig. 1 - Forward Current Derating Curve 3.5 120 2.0 SK32B-SK34B 1.5 1.0 SK35B-SK310B 0.5 0.0 Instantaneous Forward Current (A) Peak Forward Surge Current (A) 2.5 80 60 40 20 0 25 50 8.3 ms Single Half Sine-Wave 75 100 125 0 150 Fig. 3 - Typical Instantaneous Forward Characteristics Fig. 4 - Typical Instantaneous Forward Characteristics 10 5 5 2 TJ=125°C 1 0.5 TJ=75°C 0.2 0.1 0.05 TJ=25°C SK32B-SK34B 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 2 1 TJ=125°C 0.5 TJ=75°C 0.2 0.1 0.05 TJ=25°C 0.02 0.01 0.0 1.0 0.1 0.2 0.3 0.4 SK35B-SK36B 0.5 0.6 0.7 0.8 0.9 Instantaneous Forward Voltage (V) Instantaneous Forward Voltage (V) Fig. 5 - Typical Instantaneous Forward Characteristics Fig. 6 - Typical Reverse Leakage Characteristics 10 1.0 Instantaneous Reverse Leakage Current (μA) 10000 5 2 1 TJ=125°C 0.5 TJ=75°C 0.2 0.1 0.05 TJ=25°C 0.02 0.01 0.0 100 10 Number of Cycles at 60 Hz 10 0.01 0.0 1 Lead Temperature (°C) 0.02 Instantaneous Forward Current (A) 100 Resistive or Inductive Load Instantaneous Forward Current (A) Average Forward Current (A) 3.0 0.1 0.2 0.3 0.4 0.5 SK38B-SK310B 0.6 0.7 0.8 0.9 1.0 Instantaneous Forward Voltage (V) Rev.3-1-01012019 TJ=125°C 1000 TJ=75°C 100 10 TJ=25°C SK32B-SK34B 1 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) 2/4 MCCSEMI.COM SK32B-L THRU SK310B-L Curve Characteristics Fig. 8 - Typical Reverse Leakage Characteristics Fig. 7 - Typical Reverse Leakage Characteristics Instantaneous Reverse Leakage Current (μA) Instantaneous Reverse Leakage Current (μA) 10000 TJ=125°C 1000 TJ=75°C 100 10 TJ=25°C 1 20 40 60 SK35B-SK36B 80 100 100 TJ=125°C 10 TJ=75°C 1 0.1 TJ=25°C SK38B-SK310B 0.01 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Percent of Rated Peak Reverse Voltage (%) Rev.3-1-01012019 1000 3/4 MCCSEMI.COM SK32B-L THRU SK310B-L Ordering Information Device Packing Part Number-TP Tape&Reel: 3Kpcs/Reel Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-1-01012019 4/4 MCCSEMI.COM
